Description
Definition

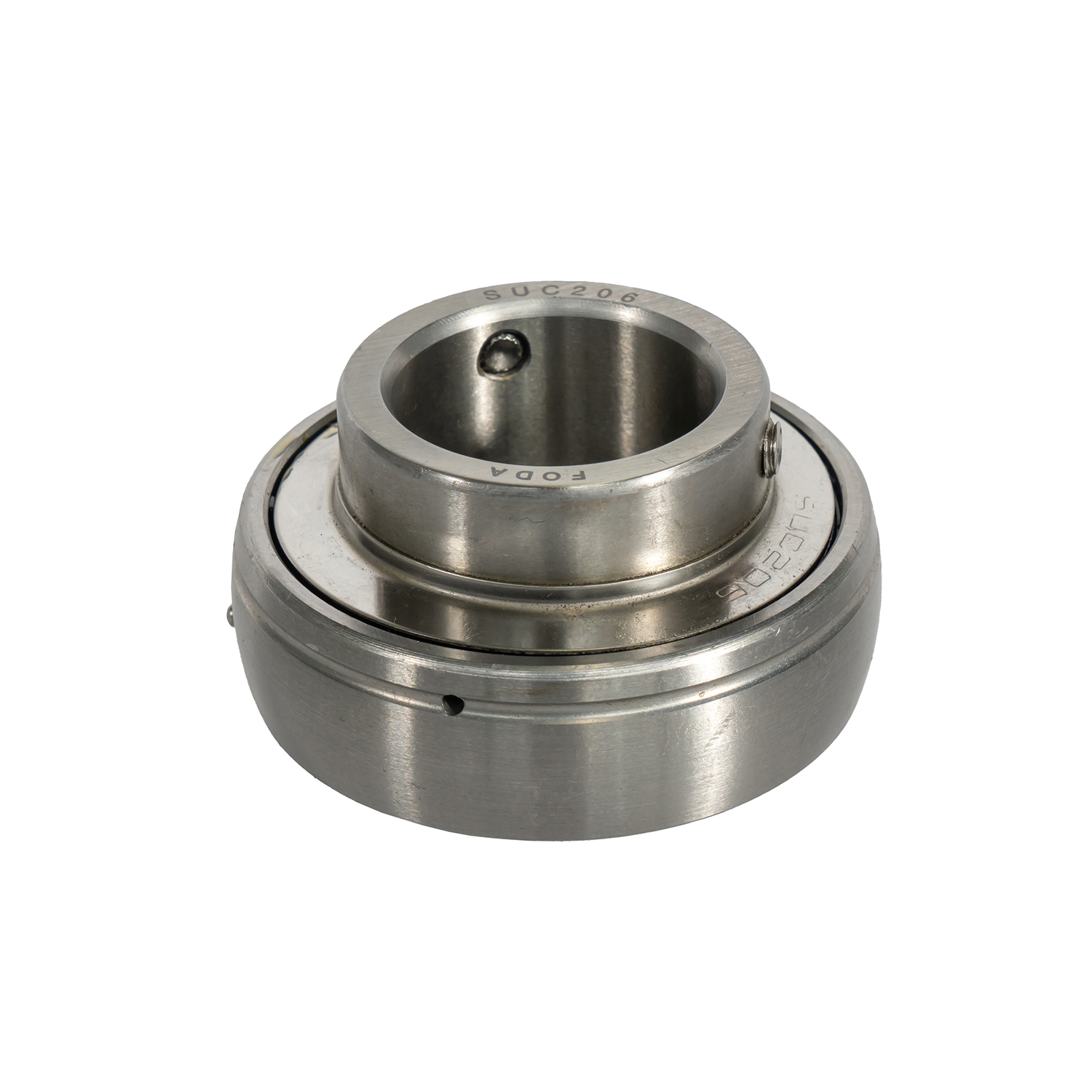

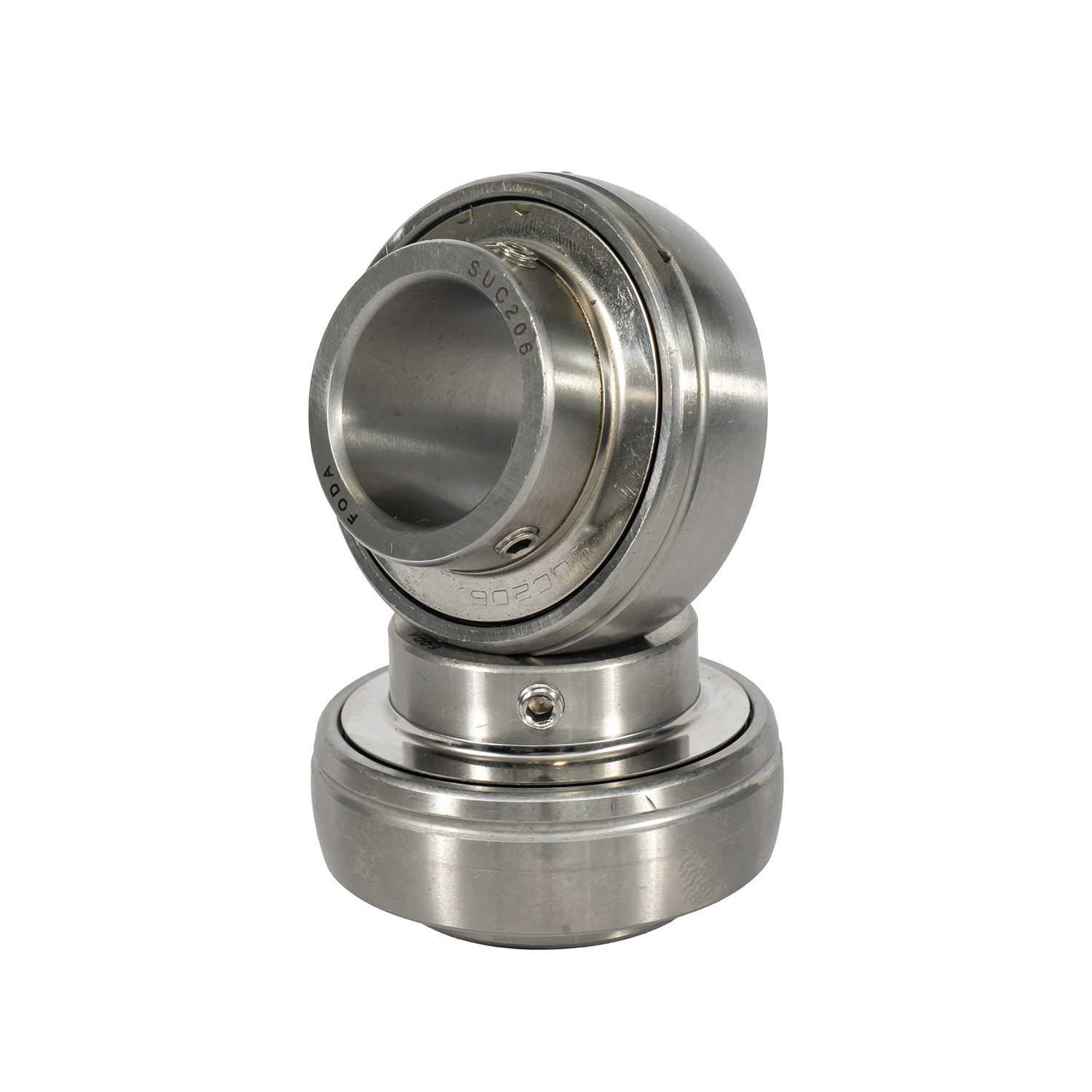

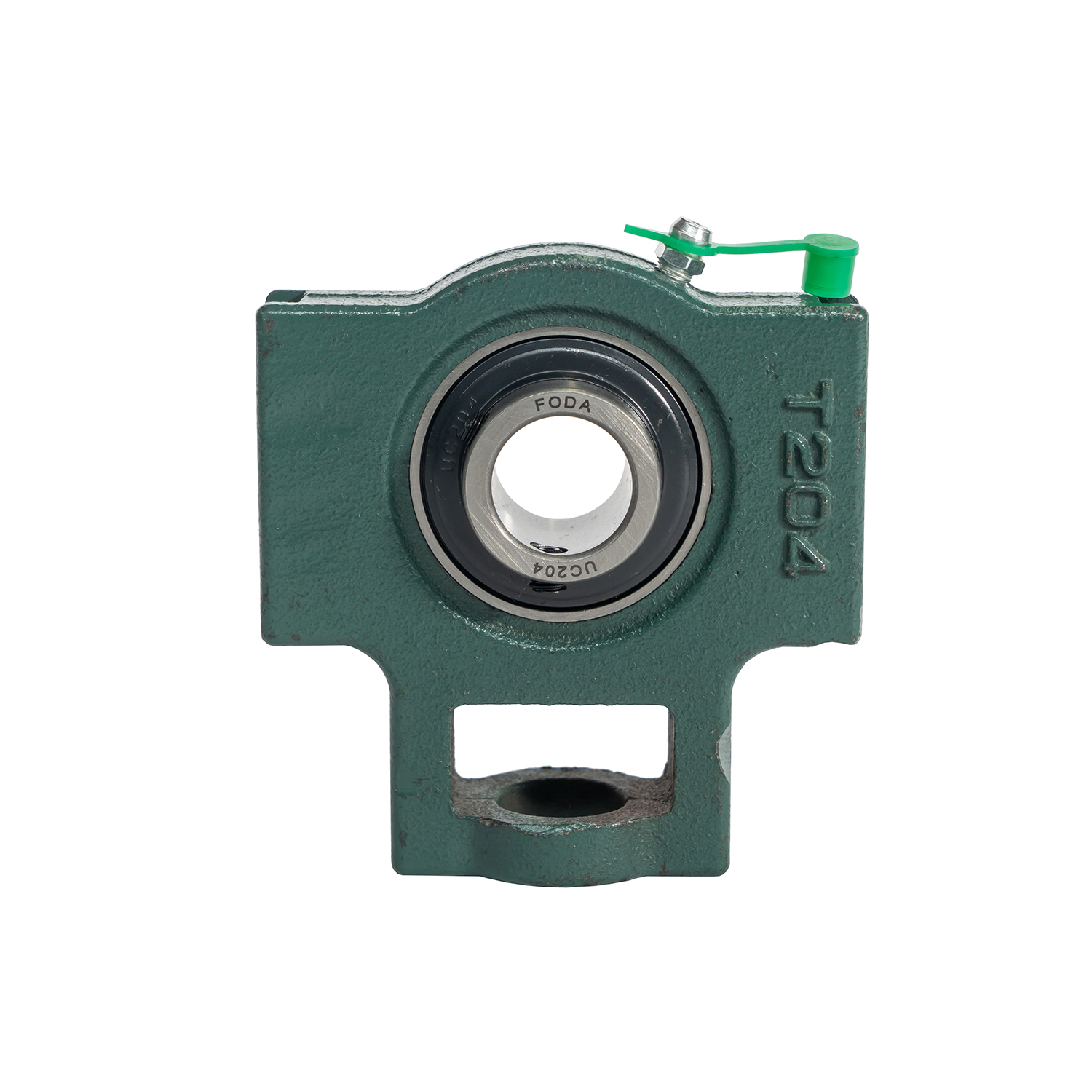

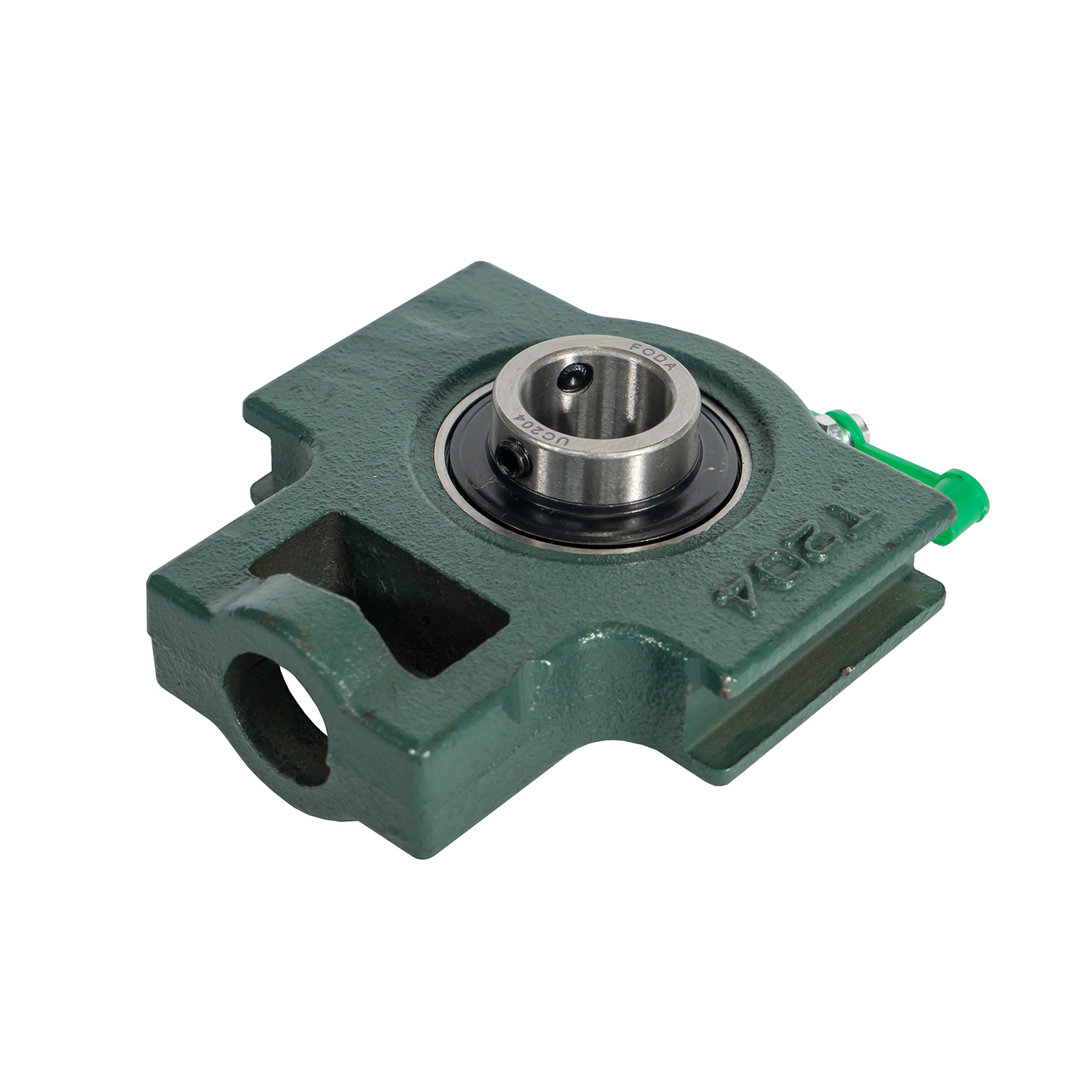

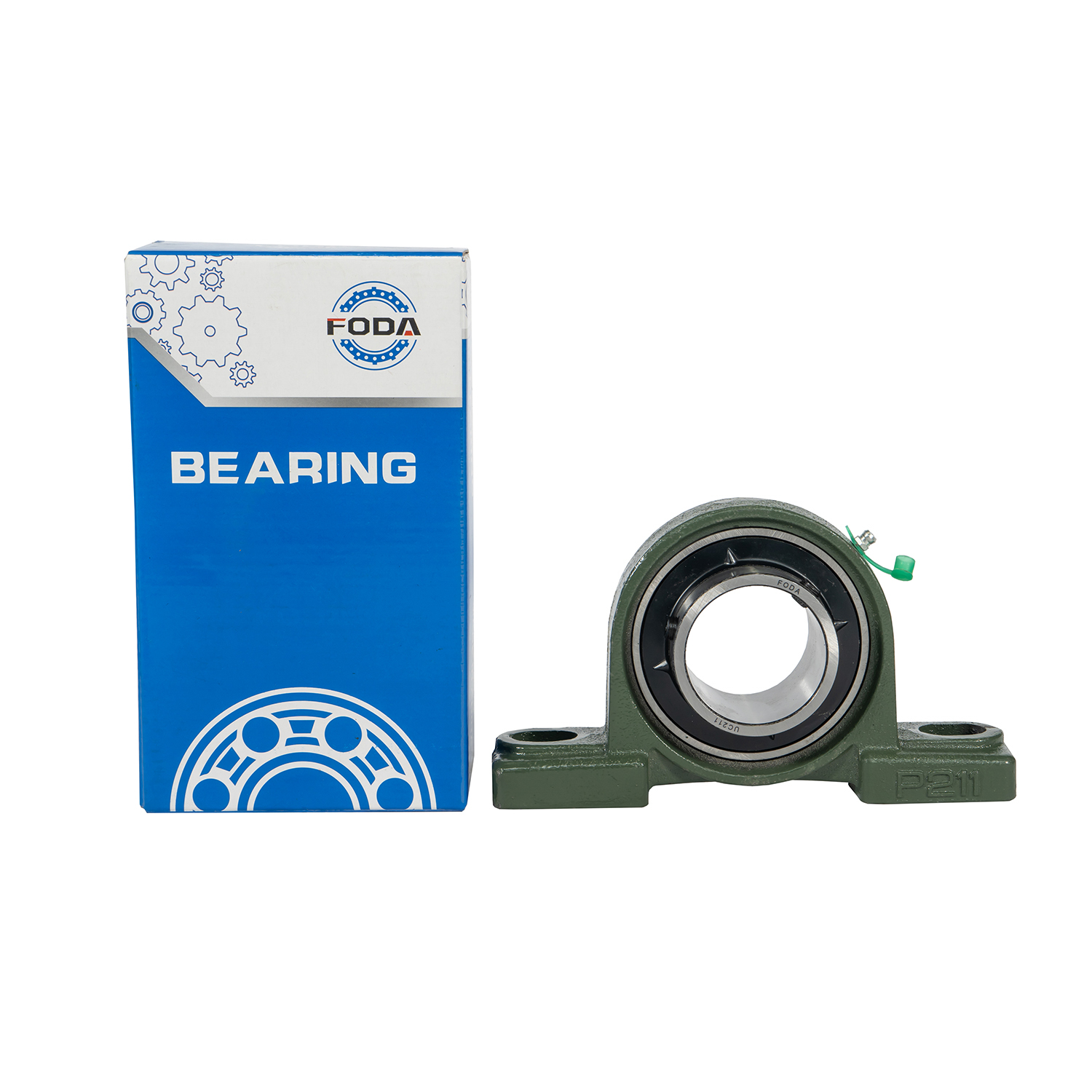

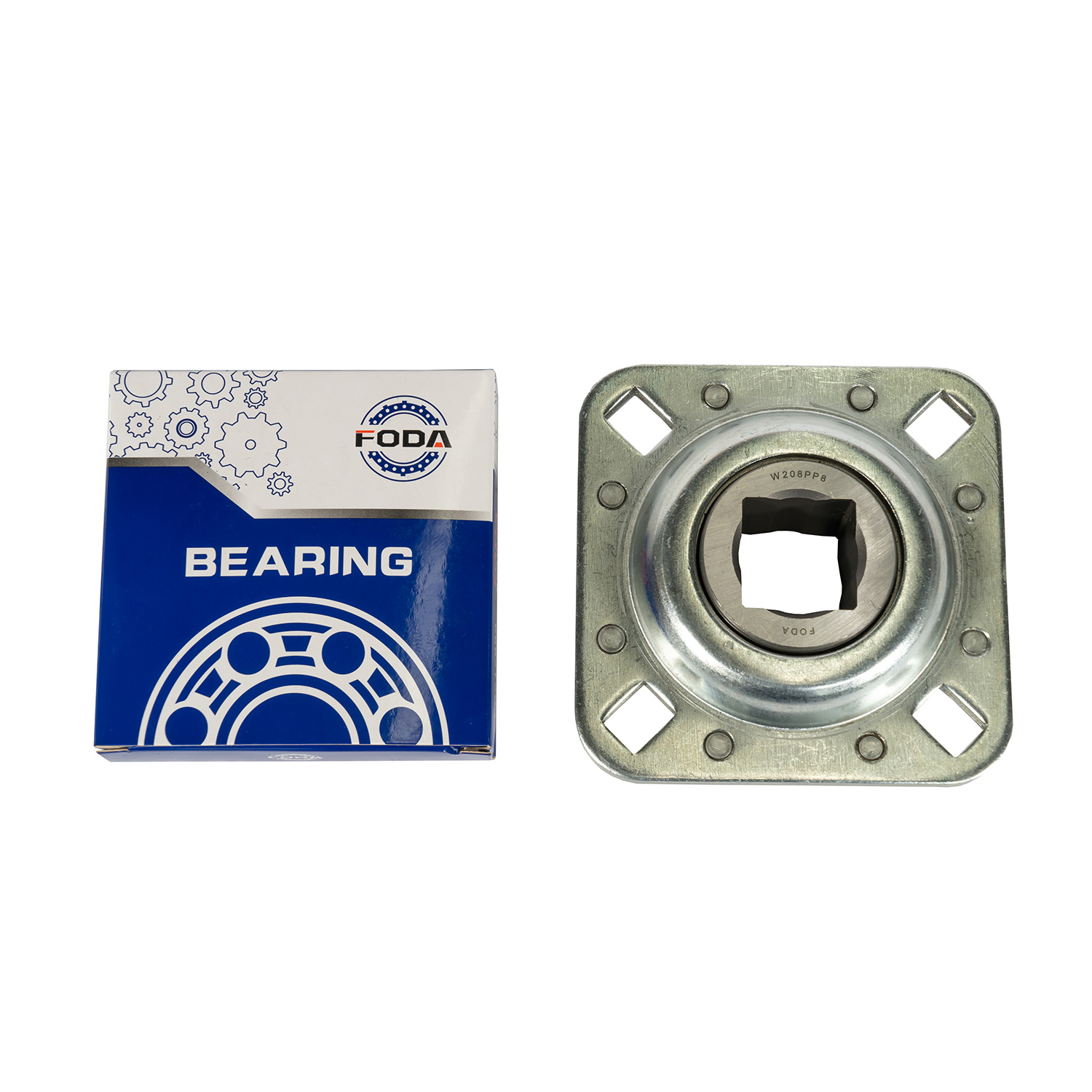

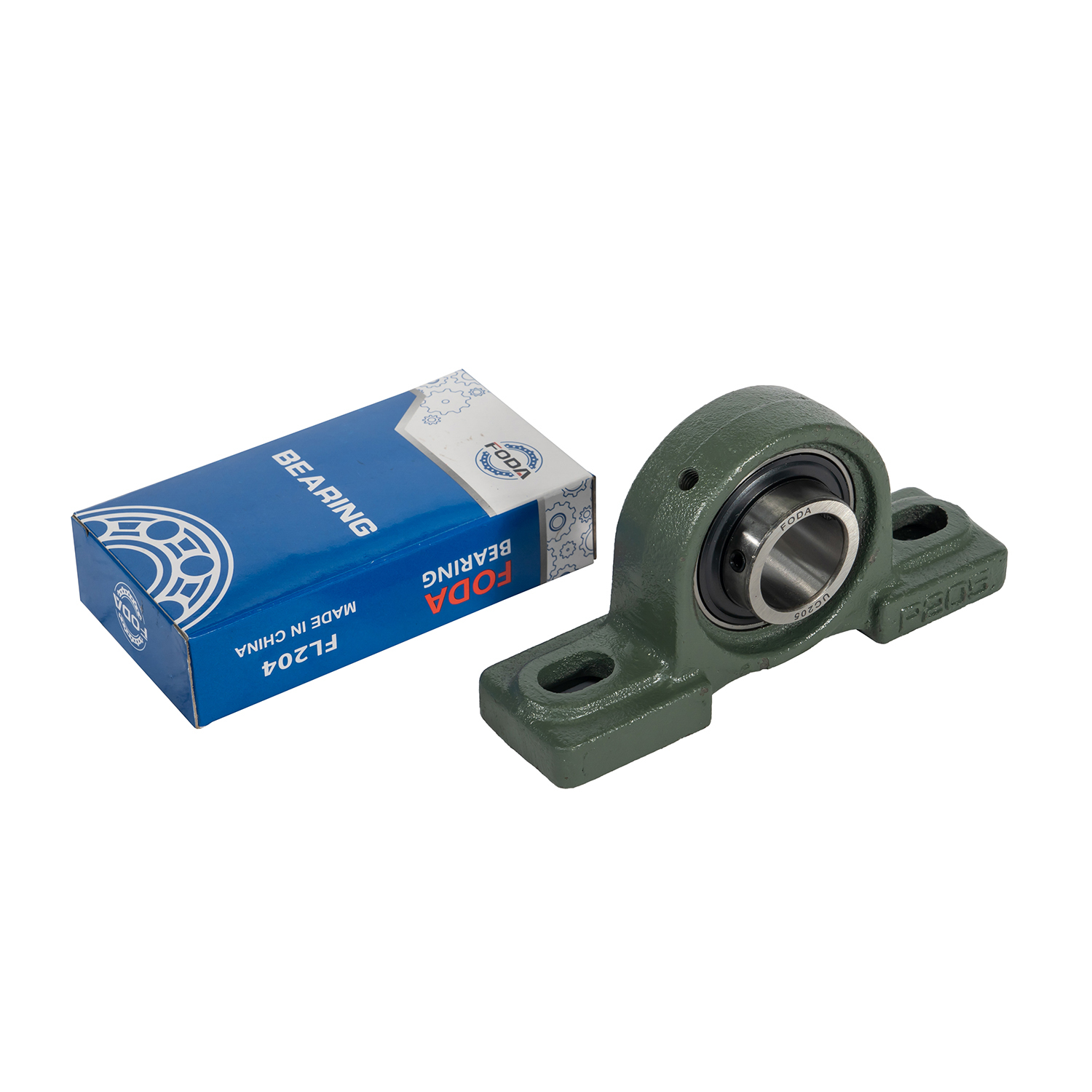

The outer surface of the outer ring of the outer spherical bearing is spherical, and the bearing seat with a spherical inner hole is installed together, and the structure can compensate the deviation of the shaft and the installation error.
Features
– Wear resistance: adapt to the complex working environment of agricultural machinery, with good wear resistance.
– Good sealing: it can effectively prevent dust, impurities and moisture from entering, and protect the inside of the bearing.
– Easy installation: Used with the bearing seat, installation and disassembly is relatively easy.
– Moderate bearing capacity: it can meet the load requirements of agricultural machinery under general working conditions.
Categories

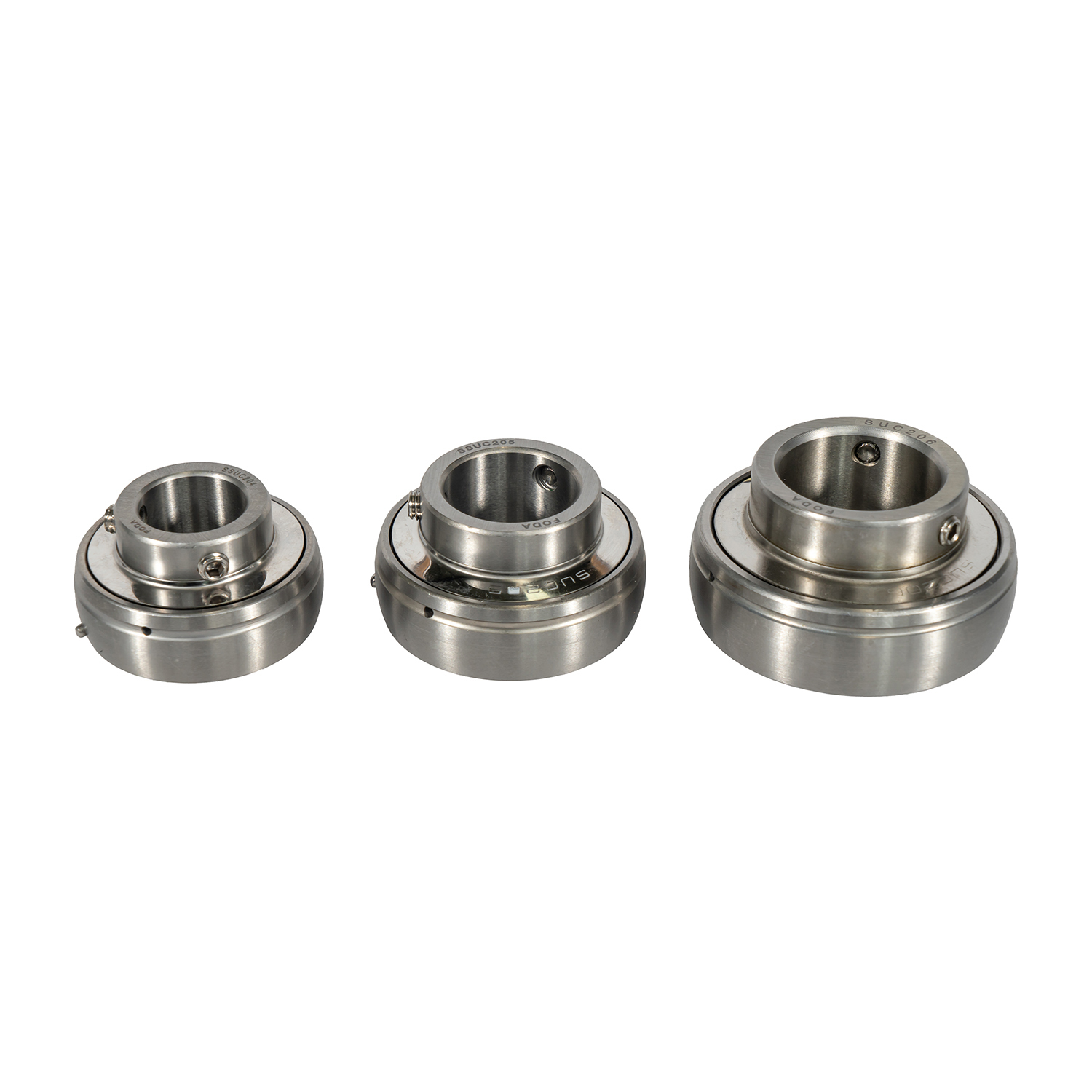

– Outer spherical bearing with top wire: fixed on the bearing seat through the top wire.
– Outer spherical bearing with eccentric sleeve: installation and adjustment using eccentric sleeve.
Basic Parameters
– Inside diameter, outside diameter, width and other dimensional parameters.
– Rated dynamic and static loads.
– Limit speed, etc.
How It Works
The inner ring of the bearing is matched with the shaft, and the outer ring is matched with the bearing seat, and the relative rotation is realized through the rolling between the inner and outer rings of the rolling body, and the radial and axial loads are borne at the same time.
Application Field
– All kinds of agricultural machinery, such as tractors, harvesters, planters, etc.
– Small farm power equipment, such as pumps, generators, etc.
– Agricultural processing machinery, such as milling machines, mixers, etc.
