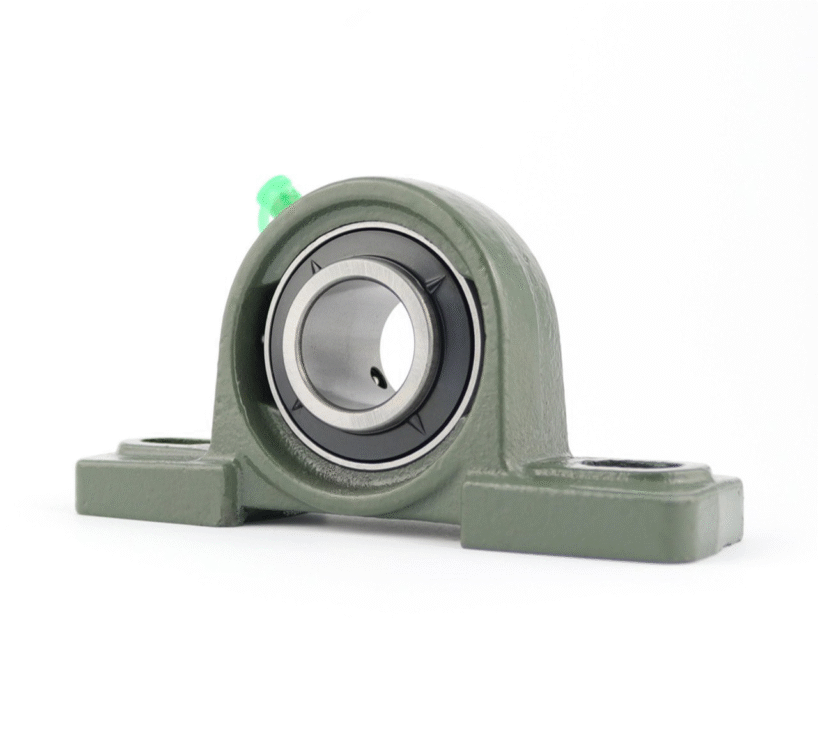

Agricultural Machinery Bearings: UCP 205
Agricultural Machinery Bearings: UCP 205 - Image 2
Agricultural Machinery Bearings: UCP 205 - Image 3
Agricultural Machinery Bearings: UCP 205 - Image 4

Agricultural Machinery Bearings: UCP 205

Product Name:

Agricultural Machinery Bearings: UCP 205

Type:

 Bearing Units Brand :

FODA

New Model:

 UCP 205 Old Model:
Inner Diameter (mm):

25

E(mm):

 105
Thickness (mm):

38

H(mm)

 71
Category:

Description

Basic Parameters

The UCP 205 agricultural machinery bearing is a robust pillow block unit designed for reliable shaft support in farming equipment, featuring a 25 mm cylindrical bore for direct shaft engagement and a cast iron housing (JIS-compliant) that ensures durability in harsh field conditions. With a center height of 36.5 mm and a 105 mm bolt pattern (10 mm diameter holes), it mounts securely to machinery frames via four bolts, offering easy alignment even in misaligned setups thanks to its self-aligning ball bearing design. The extended inner ring with set screw locking provides rapid shaft fixation, while dual-sided contact seals with oil slingers protect against dust and moisture—critical for tillage, conveyor, and fertilizer machinery. Rated for 14 kN dynamic load and 7.8 kN static load, it handles moderate radial stresses at up to 5,850 rpm, pre-greased for maintenance-free operation in seasonal use. Weighing 0.8 kg, its compact 38 mm-wide housing integrates a grease nipple (1/4-28 UNF thread) for quick re-lubrication, embodying agricultural machinery’s need for simplicity, resilience, and cost-efficiency. (All dimensions and ratings derived from mechanical specifications for agricultural shaft support applications.)









Product Application

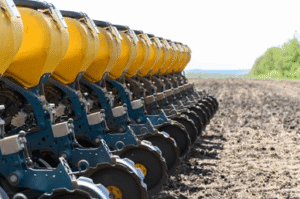

Cultivation & Tillage Equipment

The UCP 205 bearing excels in primary and secondary tillage machinery, such as plows, rotary tillers, and seedbed cultivators. In these applications, it supports rotating shafts subjected to high radial loads from soil resistance and intermittent impacts from rocks or debris. Its self-aligning ball bearing design compensates for minor misalignments caused by uneven terrain or mounting inconsistencies, reducing shaft stress and extending component life. The cast iron housing’s rigidity and dual contact seals with oil slingers effectively repel dust, clay, and moisture—common contaminants in tillage operations—ensuring reliable performance during seedbed preparation and soil aeration tasks.

Harvesting Machinery
For combine harvesters, grain threshers, and crop balers, the UCP 205 provides critical support for conveyors, augers, and cutting blades that operate under varying loads and speeds. The bearing’s 14 kN dynamic load rating and 5,850 rpm speed capability make it suitable for high-frequency rotational movements in harvesting processes. The set screw locking mechanism on the extended inner ring allows quick shaft installation and adjustment, a key advantage when maintaining complex harvesting systems in the field. Its pre-greased design minimizes downtime for lubrication during peak harvest seasons, while the corrosion-resistant housing withstands exposure to crop residues and occasional washdowns.
Material Handling & Processing Equipment
In grain elevators, conveyor belts, and feed mixers, the UCP 205 ensures smooth operation of pulley and roller shafts responsible for transporting bulk agricultural materials. The 105 mm bolt pattern with 10 mm mounting holes enables secure attachment to steel frames, even in vibrating environments typical of processing facilities. The bearing’s compact 38 mm width and 0.8 kg weight facilitate space-efficient installation in tight conveyor layouts, while its self-lubricating properties reduce maintenance demands in dusty feedlots or humid storage areas. The integrated grease nipple allows easy re-lubrication without disassembling the entire unit, ideal for long-running handling systems that require minimal operational disruption.
Irrigation & Water Management Systems
UCP 205 bearings are also pivotal in irrigation pumps, sprinkler systems, and drainage equipment, where exposure to moisture and abrasive particles (e.g., silt, sand) is constant. The dual seals act as a barrier against water ingress, protecting the bearing from rust and corrosion that could compromise pump shaft stability. The self-aligning feature accommodates slight misalignments in pump installations caused by thermal expansion or uneven concrete foundations, ensuring consistent performance in high-pressure irrigation setups. Whether supporting submersible pump shafts or above-ground sprinkler drives, the bearing’s robust design meets the reliability demands of year-round water management operations.
Specialty Agricultural Machinery
Beyond standard applications, the UCP 205 adapts to niche equipment such as fertilizer spreaders, pesticide sprayers, and greenhouse automation systems. In fertilizer spreaders, it endures corrosive chemical dusts through its sealed design and JIS-compliant cast iron housing. For greenhouse roller shutters or ventilation fans, the bearing’s low-friction operation and vibration resistance contribute to precise, quiet motion control. Its versatility makes it a cost-effective solution across diverse agricultural sectors, from large-scale crop production to specialized horticulture, where dependable shaft support is essential for maximizing equipment uptime and operational efficiency.

Product List

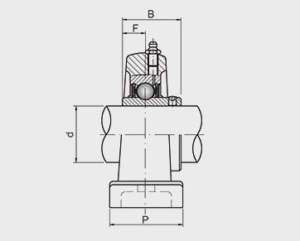

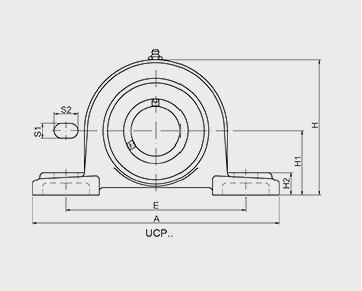

Unit No. d H1 A E P S1 S2 H2 H B F bolt size
UCP201 12 30,2 127 95 38 13 19 14 62 31 12,7 M10
UCP202 15 30,2 127 95 38 13 19 14 62 31 12,7 M10
UCP203 17 30,2 127 95 38 13 19 14 62 31 12,7 M10
UCP204 20 33,3 127 95 38 13 19 14 65 31 127,7 M10
UCP205 25 36,5 140 105 38 13 19 15 71 34,1 14,3 M10
UCPX05 25 44,4 159 119 51 17 20 18 85 38,1 15,9 M14
UCP305 25 45 175 132 45 17 20 15 85 38 38 M14
UCP206 30 42,9 165 121 48 17 20 17 84 38,1 15,9 M14
UCPX06 30 47,6 175 127 57 17 20 20 93 42,9 17,5 M14
UCP306 30 50 180 140 50 17 20 18 95 43 17 M14
UCP207 35 47,6 167 127 48 17 20 18 93 42,9 17,5 M14
UCPX07 35 54 203 144 57 17 20 21 105 49,2 19 M14
UCP307 35 56 210 160 56 17 25 20 106 48 19 M14
UCP208 40 49,2 184 137 54 17 20 18 100 49,2 19 M14
UCPX08 40 58,7 222 156 67 20 23 26 111 49,2 19 M16
UCP308 40 60 220 170 60 17 27 22 116 52 19 M14
UCP209 45 54 190 146 54 17 20 20 106 49,2 19 M14
UCPX09 45 58,7 222 156 67 20 23 26 116 51,6 19 M16
UCP309 45 67 245 190 67 20 30 24 129 57 22 M16
UCP210 50 57,2 206 159 60 20 23 21 113 51,6 19 M16
UCPX10 50 63,5 241 171 73 20 23 27 126 55,6 22,2 M16
UCP310 50 75 275 212 75 20 35 27 143 61 22 M16
UCP211 55 63,5 219 171 60 20 23 23 125 55,6 22,2 M16
UCPX11 55 69,8 260 184 79 25 28 30 137 65,1 25,4 M20
UCP311 55 80 310 236 80 20 38 30 154 66 25 M16
UCP212 60 69,8 241 184 70 20 23 25 138 65,1 25,4 M16
UCPX12 60 76,2 286 203 83 25 28 33 151 65,1 25,4 M20
UCP312 60 85 330 250 85 25 38 32 165 71 26 M20
UCP213 65 76,2 265 203 70 25 28 27 150 65,1 25,4 M20
UCPX13 65 76,2 286 203 83 25 28 33 154 74,6 30,2 M20
UCP313 65 90 340 260 90 25 38 33 176 75 30 M20
UCP214 70 79,4 266 210 72 25 28 27 156 74,6 30,2 M20
UCPX14 70 88,9 330 229 89 27 30 35 170 77,8 33,3 M22
UCP314 70 95 360 280 90 27 40 35 187 78 33 M22
UCP215 75 82,6 275 217 74 25 28 28 162 77,8 33,3 M20
UCPX15 75 88,9 330 229 89 27 30 35 175 82,6 33,3 M22
UCP315 75 100 380 290 100 27 40 35 198 82 32 M22
UCP216 80 88,9 292 232 78 25 28 30 174 82,6 33,3 M20
UCPX16 80 101,6 381 283 102 27 30 40 194 85,7 34,1 M22
UCP316 80 106 400 300 110 27 40 40 210 86 34 M22
UCP217 85 95,2 310 247 83 25 28 32 185 85,7 34,1 M20
UCPX17 85 101,6 381 283 102 27 30 40 200 96 39,7 M22
UCP317 85 112 420 320 110 33 45 40 220 96 40 M27
UCP218 90 101,6 327 262 88 27 30 33 198 96 39,7 M22
UCP318 90 118 430 330 110 33 45 45 235 96 40 M27
UCP319 95 125 470 360 120 36 50 45 250 103 41 M30
