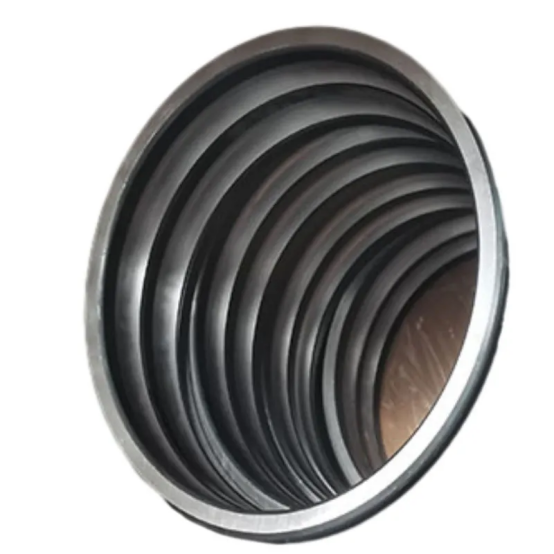

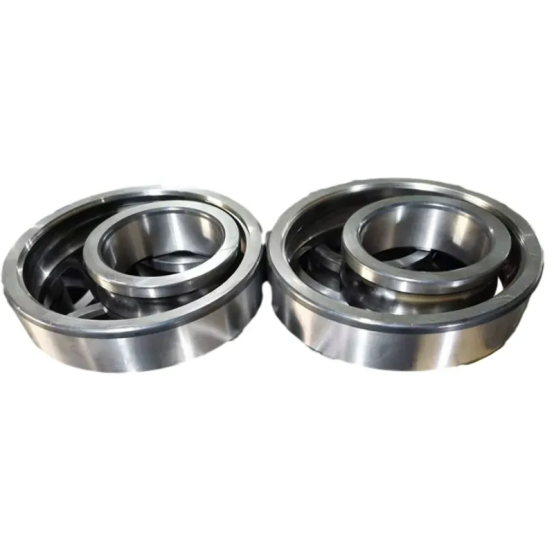

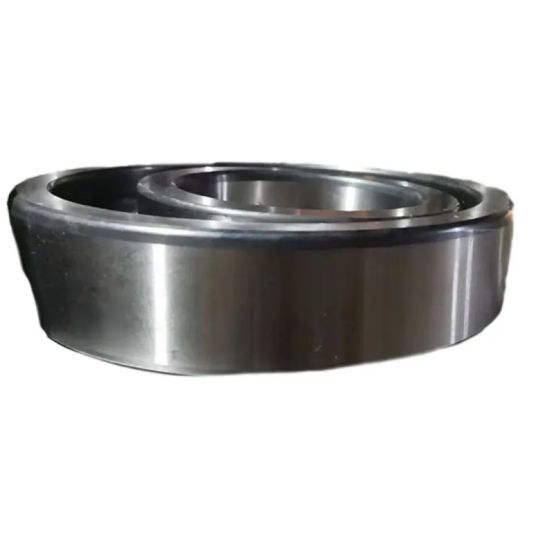

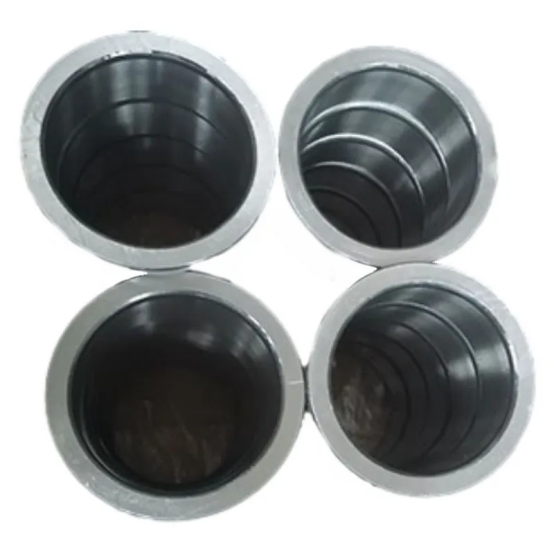

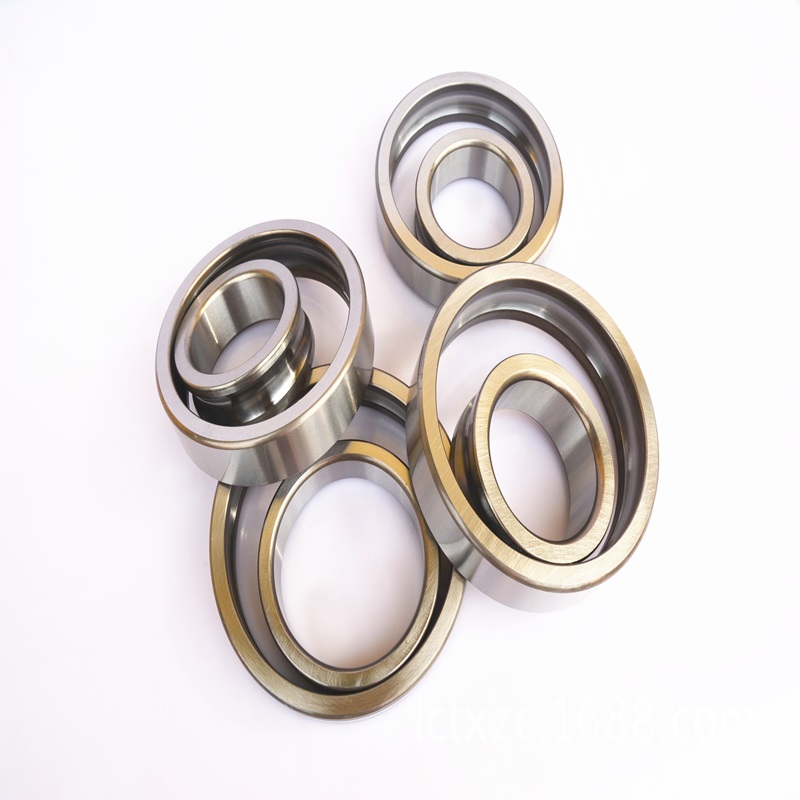

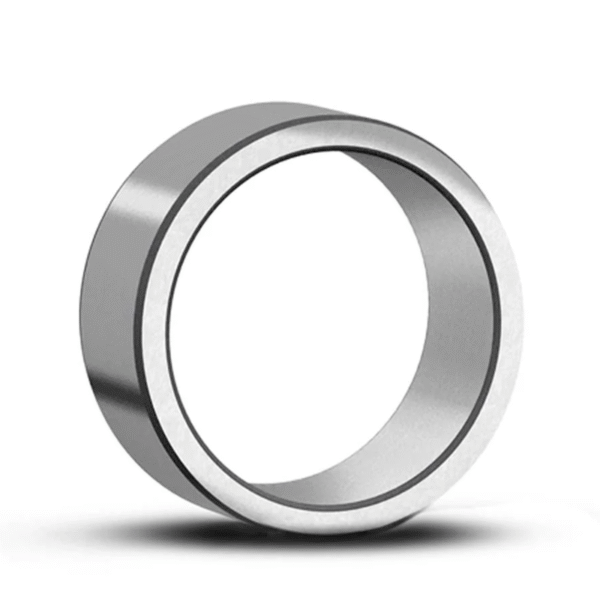

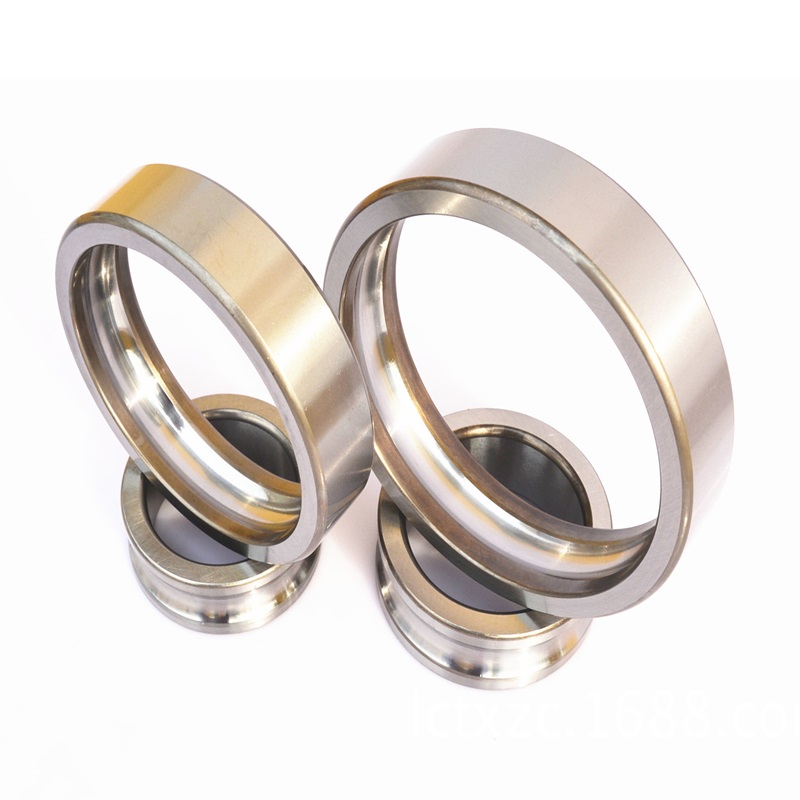

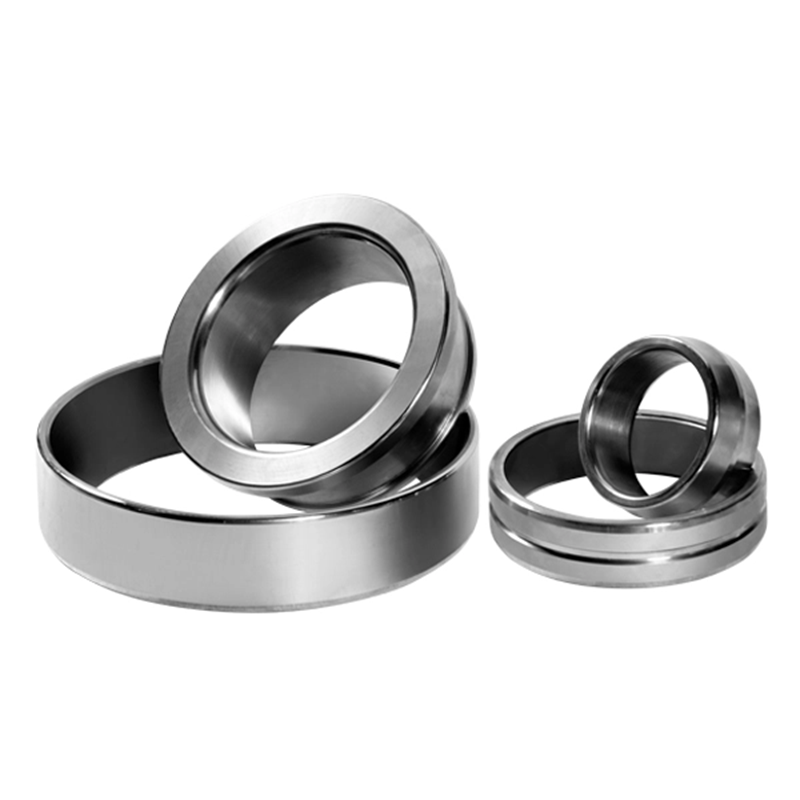

Bearing Ring

Description

Basic Parameters

1.Inner diameter and outer diameter: the diameter of the inner hole and outer ring of the bearing ring, respectively, varies according to different bearing models and specifications.
2. Width: the axial size of the ring also varies according to the bearing type and specifications.
3. Chamfer size: In order to facilitate installation and avoid stress concentration, the inner and outer diameter edge of the ring is usually provided with chamfer, and its size has certain standard requirements.
4. Surface roughness: It affects the friction, wear and lubrication performance of bearings, and generally requires a higher surface finish.
5. Hardness: Usually between HRC58-64, different materials and heat treatment process will be different.

Material

1.High-carbon chromium bearing steel: such as GCr15, GCr15SiMn, etc., with high hardness, high wear resistance, good hardenability and dimensional stability.
2. Carburized bearing steel: such as G20CrNi2MoA, etc., through carburizing treatment to improve the surface hardness and wear resistance, while maintaining the toughness of the heart.
3. Stainless bearing steel: such as 9Cr18, 9Cr18Mo, etc., has good corrosion resistance, suitable for bearings in special environments.
4. High temperature bearing steel: such as Cr4Mo4V, etc., can maintain high hardness and strength in high temperature environment.

product application

A bearing ring, a vital mechanical component, supports rotational motion, minimizes friction, and transfers loads efficiently across diverse industries. Crafted from materials like alloy steel, ceramic, or stainless steel, it excels in applications ranging from automotive engines (enhancing fuel efficiency with lightweight designs and low-friction coatings) and aerospace engines (withstanding extreme temperatures and centrifugal forces) to wind turbines (handling cyclic loads via induction-hardened surfaces) and medical robots (ensuring sub-millimeter precision with biocompatible coatings). Its role in industrial machinery, such as conveyor systems and gearboxes, and in energy sectors like oil & gas (corrosion-resistant in subsea environments) highlights its versatility in harsh and high-precision environments.

Characteristics

1.High precision: strict control of dimensional accuracy and geometric shape accuracy to ensure the matching accuracy with the rolling element and ensure the running accuracy and stability of the bearing.
2. High hardness and strength: can withstand large load and friction, not easy to deformation and damage.
3. Good wear resistance: in the long-term operation process, maintain good surface quality, extend the service life of the bearing.
4. Good processing performance: easy to carry out a variety of mechanical processing and heat treatment to meet different requirements.

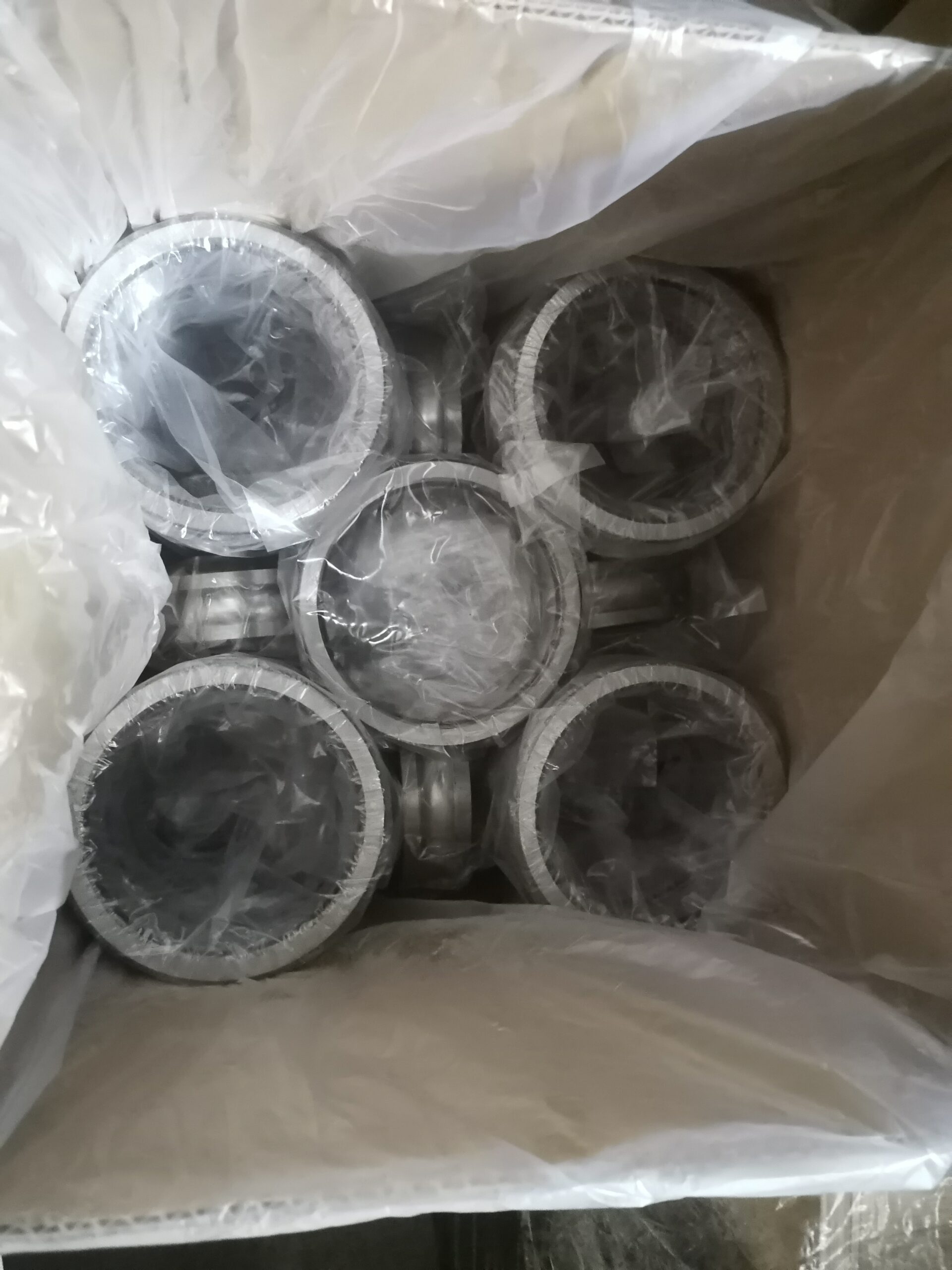

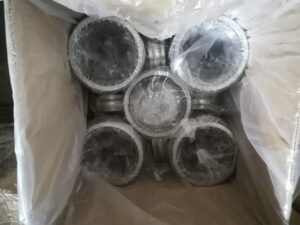

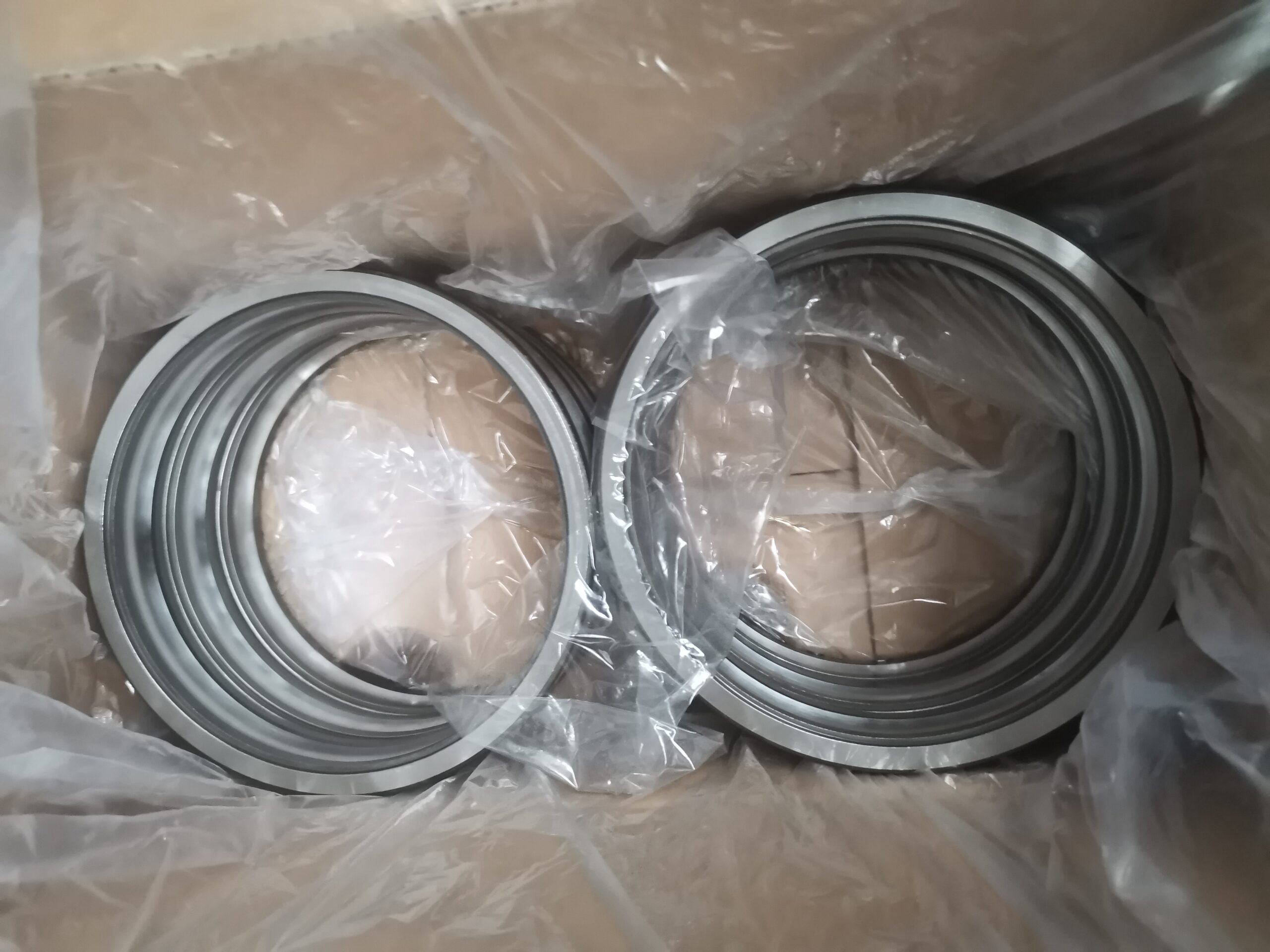

Packing Detials
