Description
Basic Parameters

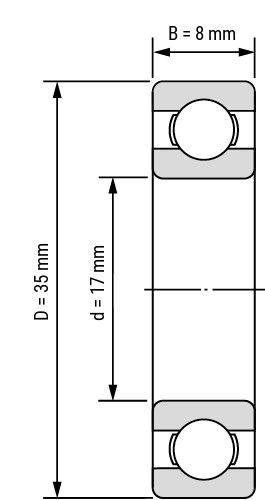

“16”: Indicates a single – row deep groove ball bearing, likely with a thin – section or lightweight design. Deep groove ball bearings are simple, easy to use, and can bear radial and some axial loads.
“0”: Represents the extra light diameter series, meaning a small cross – sectional size relative to the inner diameter.
“03”: The inner diameter code. Calculated as 3×5, the inner diameter is 15mm.
Product Application

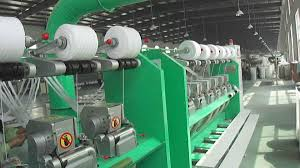

The Deep Groove Ball Bearing: 16003 is extensively applied in portable electric tools like cordless screwdrivers and mini grinders, household appliances such as desk fans and blenders, precision instruments including laboratory centrifuges, office equipment like small – format printers and scanners, automotive auxiliary components (window lifters, seat mechanisms), consumer electronics (laptop cooling fans, handheld massagers), industrial automation (small robotic joints), and textile machinery (thread – winding devices).
Product List
6400 SERIES | |||||||||
Bearing No. | Dimensions (mm) | Basic Load Rating (N) | Weight (kg) | ||||||
ISO | GOST | d | D | B | Dyn. C | Stat. C0 | |||
16003 | 7000103 | 17 | 35 | 8 | 6050 | 3250 | 0.032 | ||
16004 | 7000104 | 20 | 42 | 8 | 6890 | 4500 | 0.050 | ||
16005 | 7000105 | 25 | 47 | 8 | 7610 | 4750 | 0.060 | ||
16006 | 7000106 | 30 | 55 | 9 | 11200 | 7350 | 0.085 | ||
16007 | 7000107 | 35 | 62 | 9 | 12400 | 8150 | 0.110 | ||
16008 | 7000108 | 40 | 68 | 9 | 13300 | 9150 | 0.130 | ||
16009 | 7000109 | 45 | 75 | 10 | 15600 | 10800 | 0.170 | ||
16010 | 7000110 | 50 | 80 | 10 | 16300 | 11400 | 0.180 | ||
16011 | 7000111 | 55 | 90 | 11 | 19500 | 14000 | 0.260 | ||
16012 | 7000112 | 60 | 95 | 11 | 19900 | 15000 | 0.280 | ||
16013 | 7000113 | 65 | 100 | 11 | 21200 | 16600 | 0.300 | ||
16014 | 7000114 | 70 | 110 | 13 | 27800 | 25000 | 0.430 | ||
16015 | 7000115 | 75 | 115 | 13 | 28600 | 27000 | 0.460 | ||
16016 | 7000116 | 80 | 125 | 14 | 33200 | 31500 | 0.600 | ||
16017 | 7000117 | 85 | 130 | 14 | 33800 | 33500 | 0.630 | ||
16018 | 7000118 | 90 | 140 | 16 | 33500 | 33500 | 0.850 | ||
16019 | 7000119 | 95 | 145 | 16 | 34500 | 35000 | 0.890 | ||
16020 | 7000120 | 100 | 150 | 16 | 44200 | 44000 | 0.910 | ||
16021 | 7000121 | 105 | 160 | 18 | 52000 | 51000 | 1.200 | ||
16022 | 7000122 | 110 | 170 | 19 | 57200 | 57000 | 1.450 | ||
16024 | 7000124 | 120 | 180 | 19 | 60500 | 64000 | 1.600 | ||
16026 | 7000126 | 130 | 200 | 22 | 79300 | 81500 | 2.350 | ||
16028 | 7000128 | 140 | 210 | 22 | 80600 | 86500 | 2.500 | ||
16030 | 7000130 | 150 | 225 | 24 | 92300 | 98000 | 3.150 | ||
16032 | 7000132 | 160 | 240 | 25 | 99500 | 108000 | 3.700 | ||
16034 | 7000134 | 170 | 260 | 28 | 119000 | 129000 | 5.000 | ||
16036 | 7000136 | 180 | 280 | 31 | 138000 | 146000 | 6.600 | ||
16038 | 7000138 | 190 | 290 | 31 | 148000 | 166000 | 7.900 | ||
16040 | 7000140 | 200 | 310 | 34 | 168000 | 190000 | 8.850 | ||
16044 | 7000144 | 220 | 340 | 37 | 174000 | 204000 | 11.500 | ||
16048 | 7000148 | 240 | 360 | 37 | 178000 | 217000 | 12.100 | ||
16052 | 7000152 | 260 | 400 | 44 | 227000 | 299000 | 18.500 | ||
16056 | 7000156 | 280 | 420 | 44 | 232000 | 315000 | 23.000 | ||
16060 | 7000160 | 300 | 460 | 50 | 292000 | 410000 | 32.500 | ||
16064 | 7000164 | 320 | 480 | 50 | 300000 | 440000 | 34.200 | ||
16068 | 7000168 | 340 | 520 | 57 | 340000 | 515000 | 47.100 | ||
16072 | 7000172 | 360 | 540 | 57 | 350000 | 550000 | 49.300 | ||
16076 | 7000176 | 380 | 560 | 57 | 377000 | 620000 | 51.000 | ||
16080 | 7000180 | 400 | 600 | 63 | 358000 | 587000 | 65.000 | ||
16084 | 7000184 | 420 | 620 | 63 | 367000 | 617000 | 69.900 | ||
16088 | 7000188 | 440 | 650 | 67 | 407000 | 710000 | 81.700 | ||
16092 | 7000192 | 460 | 680 | 71 | 431000 | 767000 | 91.200 | ||
16096 | 7000196 | 480 | 700 | 71 | 444000 | 807000 | 98.500 |
