Description
Basic Parameters

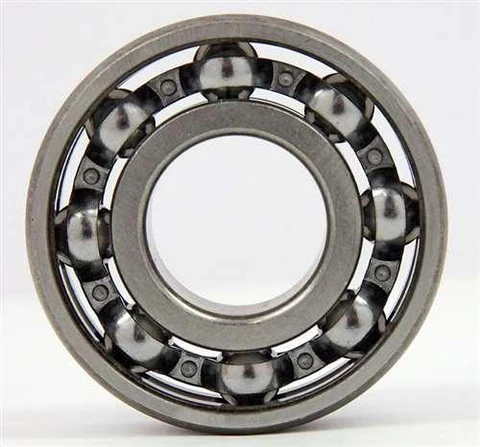

Bearing Type (First Digit: 6) Indicates a deep groove ball bearing, the most common type of rolling bearing.
Characteristics: Simple structure, easy to use, primarily designed to bear radial loads and can withstand a certain amount of axial load.
Application Scenarios: Suitable for high-speed transmission systems, precision instruments, and general mechanical equipment.
Diameter Series Code (Second Digit: 0)The “0” series corresponds to the extra light or light series, featuring slim dimensions for compact installations.

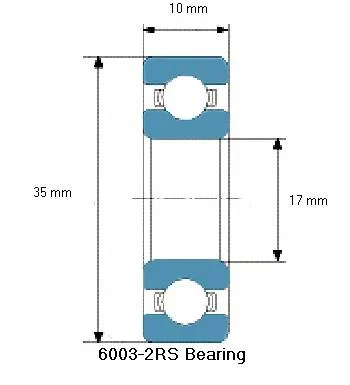

Inner Diameter Code (Last Two Digits: 03)For 6003, inner diameter = 03 × 5 = 17 mm.
Product Application
The Deep Groove Ball Bearing: 6003 is widely used in small electric motors, power tools (e.g., drills, sanders), office equipment (printers, scanners), automotive components (window regulators, seat adjusters), consumer electronics (fans, blenders), automation robotic arms, medical devices, textile machinery, and precision instruments, etc.
Product List
6000 SERIES | |||||||||
Bearing No. | Dimensions (mm) | Basic Load Rating (N) | Weight (kg) | ||||||
ISO | GOST | d | D | B | Dyn. C | Stat. C0 | |||
6000 | 100 | 10 | 26 | 8 | 4620 | 1960 | 0.020 | ||
6001 | 101 | 12 | 28 | 8 | 5070 | 2360 | 0.021 | ||
6002 | 102 | 15 | 32 | 9 | 5590 | 2850 | 0.032 | ||
6003 | 103 | 17 | 35 | 10 | 6050 | 3250 | 0.039 | ||
6004 | 104 | 20 | 42 | 12 | 9360 | 5000 | 0.070 | ||
6005 | 105 | 25 | 47 | 12 | 11200 | 6550 | 0.082 | ||
6006 | 106 | 30 | 55 | 13 | 13300 | 8300 | 0.124 | ||
6007 | 107 | 35 | 62 | 14 | 15900 | 10200 | 0.161 | ||
6008 | 108 | 40 | 68 | 15 | 16800 | 11600 | 0.197 | ||
6009 | 109 | 45 | 75 | 16 | 20800 | 14600 | 0.254 | ||
6010 | 110 | 50 | 80 | 16 | 21600 | 16000 | 0.279 | ||
6011 | 111 | 55 | 90 | 18 | 28100 | 21200 | 0.405 | ||
6012 | 112 | 60 | 95 | 18 | 29600 | 23200 | 0.428 | ||
6013 | 113 | 65 | 100 | 18 | 30700 | 25000 | 0.458 | ||
6014 | 114 | 70 | 110 | 20 | 37700 | 31000 | 0.635 | ||
6015 | 115 | 75 | 115 | 20 | 39700 | 33500 | 0.673 | ||
6016 | 116 | 80 | 125 | 22 | 47500 | 40000 | 0.877 | ||
6017 | 117 | 85 | 130 | 22 | 49400 | 43000 | 0.932 | ||
6018 | 118 | 90 | 140 | 24 | 58500 | 50000 | 1.190 | ||
6019 | 119 | 95 | 145 | 24 | 60500 | 54000 | 1.247 | ||
6020 | 120 | 100 | 150 | 24 | 60500 | 54000 | 1.340 | ||
6021 | 121 | 105 | 160 | 26 | 72800 | 65500 | 1.690 | ||
6022 | 122 | 110 | 170 | 28 | 81900 | 73500 | 2.023 | ||
6024 | 124 | 120 | 180 | 28 | 85200 | 80000 | 2.213 | ||
6026 | 126 | 130 | 200 | 33 | 104000 | 100000 | 3.270 | ||
6028 | 128 | 140 | 210 | 33 | 110000 | 109000 | 3.547 | ||
6030 | 130 | 150 | 225 | 35 | 131000 | 124000 | 4.880 | ||
6032 | 132 | 160 | 240 | 38 | 136000 | 135000 | 6.073 | ||
6034 | 134 | 170 | 260 | 42 | 168000 | 173000 | 7.175 | ||
6036 | 136 | 180 | 280 | 46 | 180000 | 184000 | 10.570 | ||
6038 | 138 | 190 | 290 | 46 | 188000 | 200000 | 11.08 | ||
6040 | 140 | 200 | 310 | 51 | 201000 | 222000 | 14.100 | ||
6044 | 144 | 220 | 340 | 56 | 247000 | 290000 | 18.500 | ||
6048 | 148 | 240 | 360 | 56 | 255000 | 315000 | 20.000 | ||
6052 | 152 | 260 | 400 | 65 | 291000 | 375000 | 28.500 | ||
6056 | 156 | 280 | 420 | 65 | 325000 | 420000 | 31.000 | ||
6060 | 160 | 300 | 460 | 74 | 355000 | 480000 | 43.500 | ||
6064 | 164 | 320 | 480 | 74 | 371000 | 540000 | 46.000 | ||
6068 | 168 | 340 | 520 | 82 | 423000 | 640000 | 62.000 | ||
6072 | 172 | 360 | 540 | 82 | 462000 | 735000 | 64.500 | ||
6076 | 176 | 380 | 560 | 82 | 470000 | 750000 | 67.500 | ||
6080 | 180 | 400 | 600 | 90 | 520000 | 865000 | 87.500 | ||
6084 | 184 | 420 | 620 | 90 | 530000 | 895000 | 91.000 |
