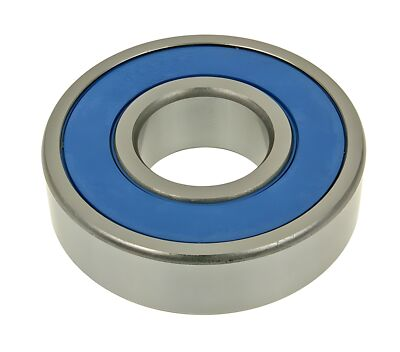

Deep Groove Ball Bearing: 6200



Product Name: Deep Groove Ball Bearing:6200
Type: Ball Bearing Brand : FODA
New Model: 6200 Old Model: 80200

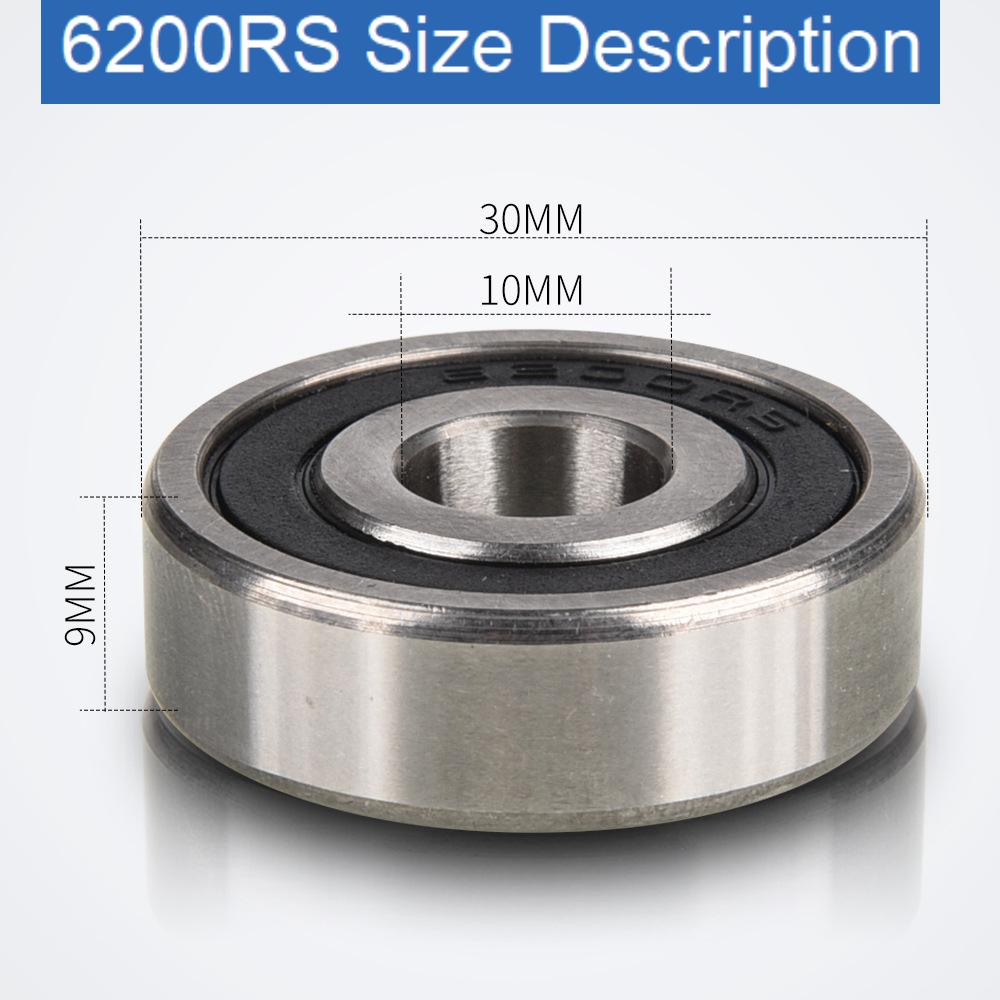

Inner Diameter (mm): 10 Outer Diameter (mm): 30
Thickness (mm): 9 Weight (kg/pc): 0.031

Description

Basic Parameters

6200 Deep Groove Ball Bearing: The 6200 is a deep groove ball bearing, the most versatile type of rolling bearing, characterized by a simple design that enables high-speed operation with low friction.

“6” denotes its deep groove ball bearing type, suitable for handling radial loads primarily and moderate axial loads (bidirectional when used in pairs).

“2” indicates the medium diameter series, meaning it has a larger outer diameter (30mm) and width (9mm) compared to the light series (e.g., 6000 series), providing higher load-carrying capacity (≈5.1 kN dynamic radial load).

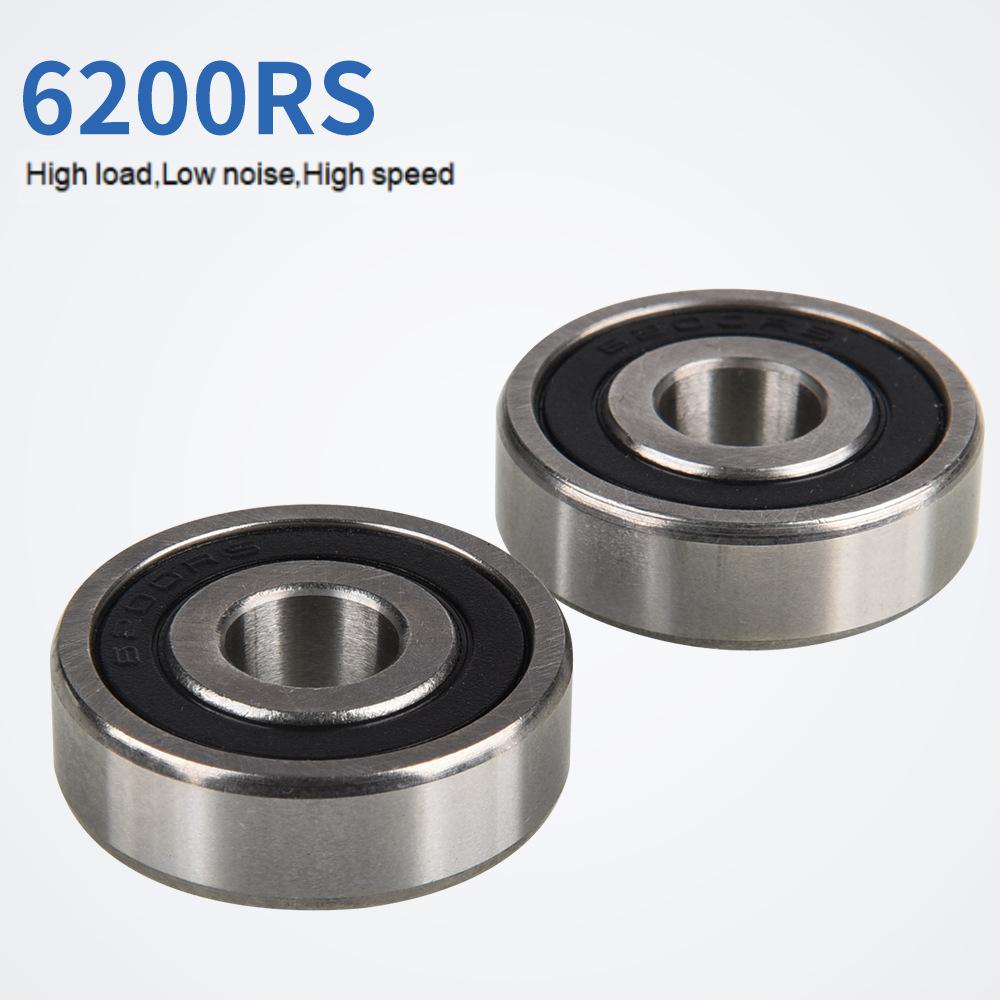

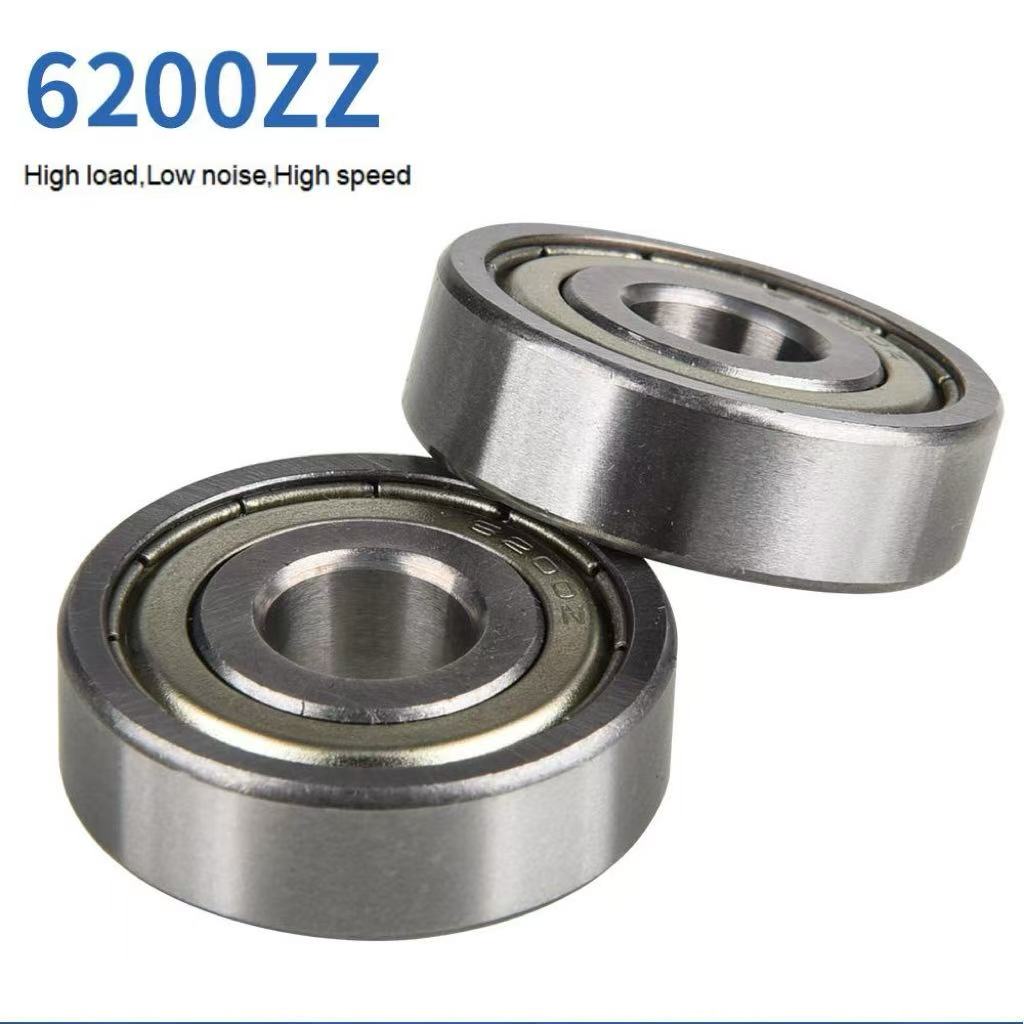

“00” follows a special rule for codes <04: it directly maps to 10 mm (standard for codes 00=10mm, 01=12mm, etc.). By default, the bearing has grade 0 tolerance (normal precision), suitable for general applications like small electric motors, power tools, washing machines, and textile machinery. Its compact size (10x30x9 mm) and high极限转速 (≈20,000 rpm with grease lubrication) make it ideal for lightweight to medium-load scenarios. For dusty or wet environments, sealed variants (e.g., 6200-Z for single metal shield or 6200-2RS for double rubber seals) are available. When installing, avoid striking the outer ring to prevent raceway damage; press or thermal fitting is recommended. Compared to the 6000 series (light series), the 6200’s larger dimensions enhance stability and load capacity, making it a balanced choice for reliability in industrial and consumer applications.

Product Application

The 6200 deep groove ball bearing, with its versatile design and reliable performance, finds extensive use across multiple industries. Here are its key applications:
1. Industrial Machinery

Pumps and Compressors: In centrifugal pumps and air compressors, the 6200 bearing supports the rotating shafts, handling both radial and axial loads generated during operation. Its ability to reduce friction ensures the efficient transfer of mechanical energy, enhancing the overall performance and lifespan of the equipment.

Conveyor Systems: Installed in conveyor rollers, this bearing enables smooth and continuous movement of materials. Whether in food processing plants, warehouses, or manufacturing facilities, it withstands the radial forces from the weight of the conveyed goods and the tension in the conveyor belts.

Machine Tools: Used in lathes, milling machines, and drilling equipment, the 6200 bearing maintains the precise alignment of the spindle, allowing for accurate machining operations. Its low vibration and noise characteristics contribute to the production of high – quality workpieces.

2. Automotive Industry

Wheel Hubs: In passenger cars and light commercial vehicles, 6200 bearings are employed in wheel hubs. They support the weight of the vehicle and handle the dynamic loads from road irregularities, ensuring stable and safe driving. Their durability and resistance to wear are crucial for long – term reliable performance.

Engine Accessories: Components such as engine cooling fans, alternators, and water pumps often use 6200 deep groove ball bearings. These bearings enable the high – speed rotation of these accessories while withstanding the heat and vibration generated in the engine compartment.

Transmission Systems: In manual and automatic transmissions, the 6200 bearing helps in the smooth operation of gears and shafts, facilitating the transfer of power from the engine to the wheels.

3. Electrical Equipment

Electric Motors: As a common choice for electric motors in various applications, from household appliances to industrial motors, the 6200 bearing supports the motor shaft, allowing for efficient and quiet rotation. Its compatibility with different lubrication methods makes it suitable for motors operating under different conditions.

Generators: In small – scale generators, the 6200 bearing ensures the stable rotation of the rotor, which is essential for the generation of electrical power. It can handle the radial loads from the rotor’s weight and the mechanical stresses during operation.

4. Consumer Goods

Home Appliances: In washing machines, dryers, and vacuum cleaners, the 6200 bearing is used in the motors and rotating components. It enables these appliances to operate smoothly, quietly, and with minimal energy consumption.

Power Tools: For handheld power tools like drills, grinders, and saws, the 6200 bearing provides the necessary support and precision for the high – speed rotation of the cutting or grinding elements, enhancing the tool’s performance and user experience.

Product List

 Bearing No. Dimensions (mm) Basic Load Rating (N) Weight
ISO GOST d D B Dyn. C Stat. C0 Kg / PC
6200 ZZ 80200 10 30 9 5070 2360 0.031
6201 ZZ 80201 12 32 10 6890 3100 0.038
6202 ZZ 80202 15 35 11 7800 3750 0.044
6203 ZZ 80203 17 40 12 9560 4750 0.066
6204 ZZ 80204 20 47 14 12700 6550 0.109
6205 ZZ 80205 25 52 15 14000 7800 0.133
6206 ZZ 80206 30 62 16 19500 11200 0.200
6207 ZZ 80207 35 72 17 25500 15300 0.299
6208 ZZ 80208 40 80 18 30700 19000 0.379
6209 ZZ 80209 45 85 19 33200 21600 0.430
6210 ZZ 80210 50 90 20 35100 23200 0.475
6211 ZZ 80211 55 100 21 43600 29000 0.625
6212 ZZ 80212 60 110 22 47500 32500 0.797
6213 ZZ 80213 65 120 23 55900 40500 1.017
6214 ZZ 80214 70 125 24 60500 45000 1.110
6215 ZZ 80215 75 130 25 66300 49000 1.210
6216 ZZ 80216 80 140 26 70200 55000 1.460
6217 ZZ 80217 85 150 28 83200 64000 1.847
6218 ZZ 80218 90 160 30 95600 73500 2.223
6219 ZZ 80219 95 170 32 108000 81500 2.713
6220 ZZ 80220 100 180 34 124000 93000 3.321
6221 ZZ 80221 105 190 36 133000 104000 3.717
6222 ZZ 80222 110 200 38 143000 118000 4.340
6224 ZZ 80224 120 215 40 148000 131000 5.100
6226 ZZ 80226 130 230 40 156000 146000 5.615
6228 ZZ 80228 140 250 42 165000 150000 7.485
6230 ZZ 80230 150 270 45 174000 166000 9.475
6232 ZZ 80232 160 290 48 186000 186000 14.590
6234 ZZ 80234 170 310 52 212000 224000 17.570
6236 ZZ 80236 180 320 52 229000 240000 18.600
