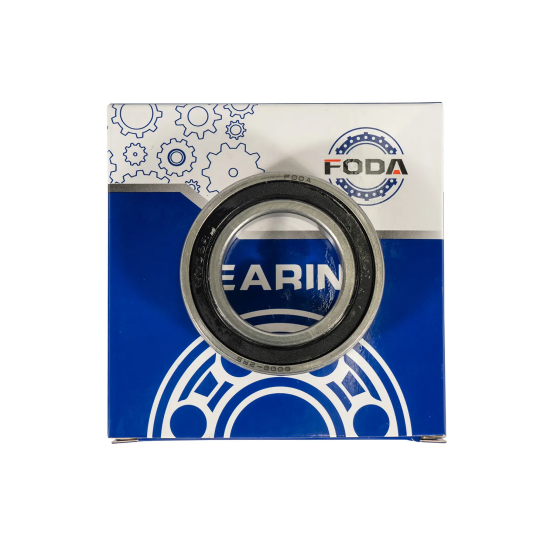

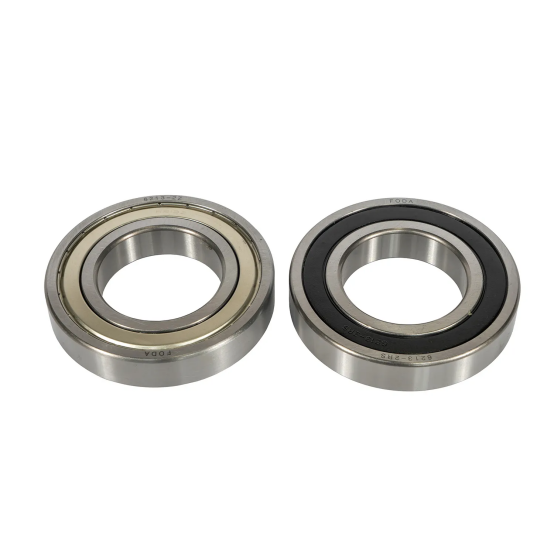

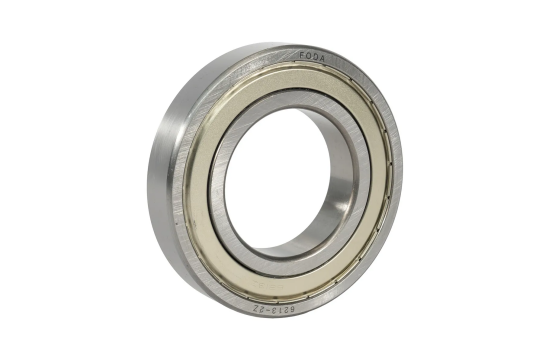

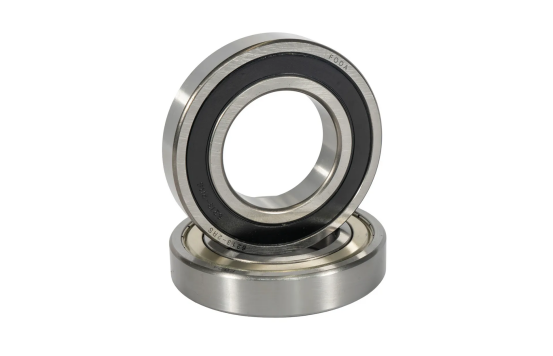

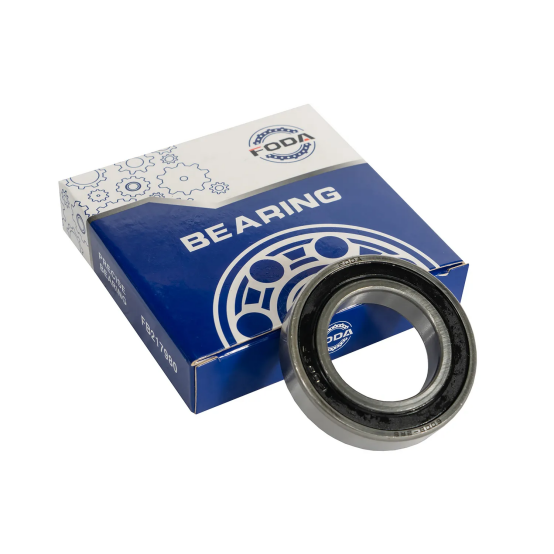

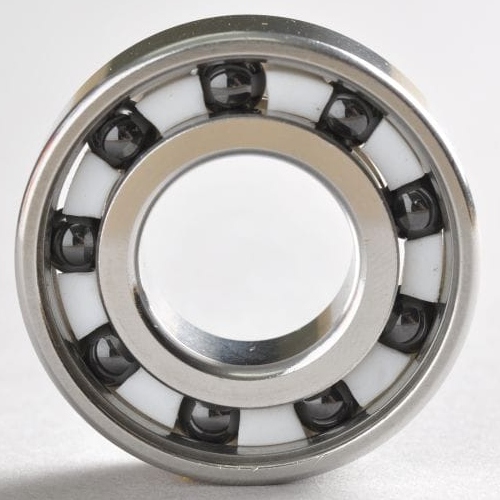

Deep Groove Ball Bearing: 6213
Deep Groove Ball Bearing: 6213 - Image 2
Deep Groove Ball Bearing: 6213 - Image 3
Deep Groove Ball Bearing: 6213 - Image 4

Deep Groove Ball Bearing: 6213

Product Name: Deep Groove Ball Bearing
Type: Ball Bearing Brand : FODA
New Model: 6213 Old Model: 213
Inner Diameter (mm): 65 Outer Diameter (mm): 120
Thickness (mm): 23 Weight (kg/pc): 1.017
Category:

Description

Basic parameters

Deep groove ball bearings are the most common type of rolling bearings. The basic deep groove ball bearings consist of an outer ring, an inner ring, a set of steel balls and a set of cages. There are two types of deep groove ball bearings: single row and double row. The deep groove ball structure is also divided into sealed and open structures. The open type refers to the bearing without a sealed structure. The sealed deep groove ball is divided into dust-proof seals and oil-proof seals. The dust-proof seal cover is made of stamped steel plate and only serves to simply prevent dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the grease in the bearing from overflowing.

Product Application

The Deep Groove Ball Bearing：6213 is widely used in electric tools, household appliances, precision instruments, office equipment, automotive parts, motorcycles, electric bicycles, industrial robots, wind power generation equipment, medical equipment, textile machinery, agricultural machinery, pumps, and fans, among other fields. In heavy-duty electric tools like impact wrenches and saws, its robust structure and high radial load capacity enable stable operation under intense vibration and torque. Household appliances such as refrigeration compressors and microwave oven turntables rely on it for low-noise rotation and long-term durability, even in continuous working conditions.
Wind power generation equipment employs this bearing in generator shafts and gearbox systems, enduring heavy radial loads and variable-speed operations in harsh outdoor environments. Medical diagnostic equipment such as MRI machines requires its corrosion-resistant properties and minimal magnetic interference for hygienic operation. Textile looms and agricultural harvesters utilize its dust-resistant design to reduce maintenance in abrasive environments, while pumps and fans rely on it for reliable performance in high-temperature or humid conditions, ensuring continuous fluid and air transportation.



Products List



Deep Groove Ball Bearing 62 Series
 Bearing No. Dimensions (mm) Basic Load Rating (N) Weight
ISO GOST d D B Dyn. C Stat. C0 Kg / PC
6200 ZZ 80200 10 30 9 5070 2360 0.031
6201 ZZ 80201 12 32 10 6890 3100 0.038
6202 ZZ 80202 15 35 11 7800 3750 0.044
6203 ZZ 80203 17 40 12 9560 4750 0.066
6204 ZZ 80204 20 47 14 12700 6550 0.109
6205 ZZ 80205 25 52 15 14000 7800 0.133
6206 ZZ 80206 30 62 16 19500 11200 0.200
6207 ZZ 80207 35 72 17 25500 15300 0.299
6208 ZZ 80208 40 80 18 30700 19000 0.379
6209 ZZ 80209 45 85 19 33200 21600 0.430
6210 ZZ 80210 50 90 20 35100 23200 0.475
6211 ZZ 80211 55 100 21 43600 29000 0.625
6212 ZZ 80212 60 110 22 47500 32500 0.797
6213 ZZ 80213 65 120 23 55900 40500 1.017
6214 ZZ 80214 70 125 24 60500 45000 1.110
6215 ZZ 80215 75 130 25 66300 49000 1.210
6216 ZZ 80216 80 140 26 70200 55000 1.460
6217 ZZ 80217 85 150 28 83200 64000 1.847
6218 ZZ 80218 90 160 30 95600 73500 2.223
6219 ZZ 80219 95 170 32 108000 81500 2.713
6220 ZZ 80220 100 180 34 124000 93000 3.321
6221 ZZ 80221 105 190 36 133000 104000 3.717
6222 ZZ 80222 110 200 38 143000 118000 4.340
6224 ZZ 80224 120 215 40 148000 131000 5.100
6226 ZZ 80226 130 230 40 156000 146000 5.615
6228 ZZ 80228 140 250 42 165000 150000 7.485
6230 ZZ 80230 150 270 45 174000 166000 9.475
6232 ZZ 80232 160 290 48 186000 186000 14.590
6234 ZZ 80234 170 310 52 212000 224000 17.570
6236 ZZ 80236 180 320 52 229000 240000 18.600
