Deep groove ball bearing:6005

Description

Basic Parameters

In bearing 60005, “6”: Indicates that the bearing type is a deep groove ball bearing. Deep groove ball bearings are the most common type of rolling bearings, characterized by their simple structure and ease of use. They are mainly used to bear radial loads and can also withstand a certain amount of axial load.

“0”: Indicates the bearing’s diameter series code. The diameter series code is used to represent the range of the bearing’s inner and outer diameter sizes, with the 0 series typically indicating that the bearing’s dimensions belong to the extra light or light series.

“05”: Indicates the bearing’s inner diameter code. The inner diameter code is used to represent the bearing’s inner diameter size, which is usually calculated through a certain rule (such as inner diameter = code × 5) to obtain the actual inner diameter size. For the 6005 bearing, its inner diameter is 5 × 5 = 25mm.

In the model 6005 bearing, the tolerance grade is not directly indicated, but it is usually assumed to be grade 0, which is the normal precision level. The tolerance grade is used to represent the dimensional accuracy and rotational accuracy of the bearing, with different tolerance grades corresponding to different precision requirements.

In summary, the meaning of the bearing model 6005 is: deep groove ball bearing, extra light or light series, inner diameter of 25mm, normal precision level. This type of bearing has a wide range of applications and can be used in high-speed transmission and situations where a certain amount of axial load needs to be borne.

Product Features

1. Versatile Design

2. Dual Sealing Solutions

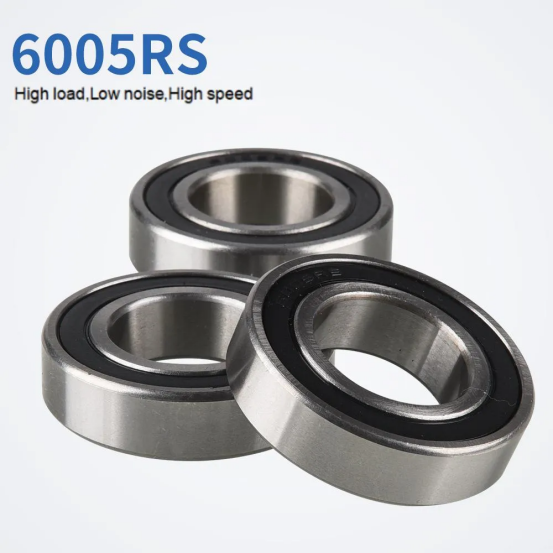

2RS (Rubber Seals): Dust/moisture-resistant for harsh environments (e.g., agriculture, outdoor machinery).

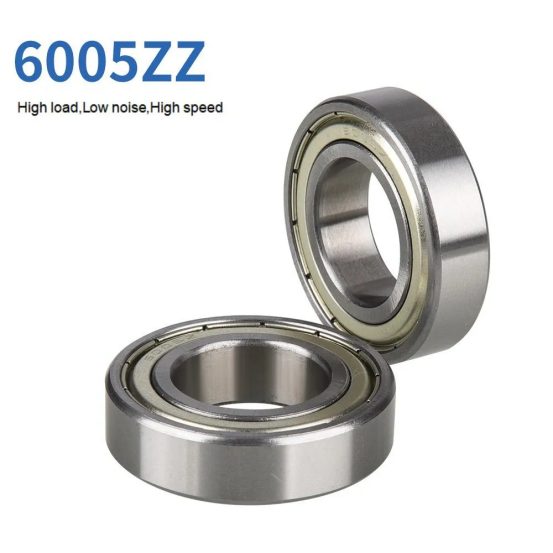

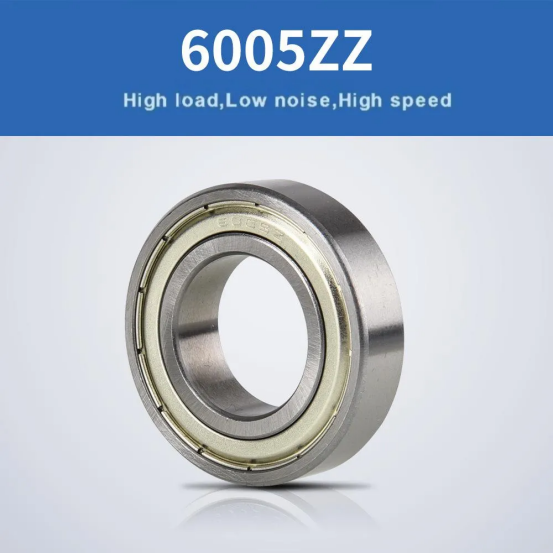

2Z (Metal Shields): Particle protection for high-speed, low-maintenance setups (e.g., motors, precision devices).

3. High Performance

Load Capacity: Dynamic (Cr: 11,200 N) and static (C0r: 6,550 N) ratings for medium-duty radial/impact loads.

Low Noise & Vibration: Precision-ground raceways ensure smooth operation in quiet systems (appliances, medical equipment).

High Speed: Up to 18,000 RPM (grease-lubricated) for power tools, fans, and high-frequency rotation.

4. Durable Construction

GCr15 Steel: High-hardness (HRC 58-62) for wear/fatigue resistance under repetitive loads.

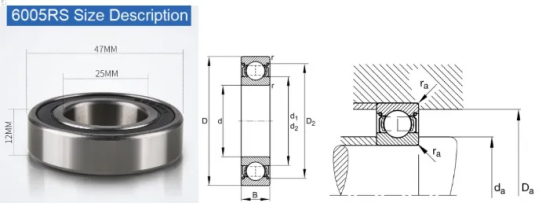

ISO Precision: Grade 0 tolerance (25mm ID, 47mm OD, 12mm width) for reliable fit and accuracy.

5. Wide Application

6. Low Maintenance

Product Application

The 6005 bearing is widely used in electric tools, household appliances, precision instruments, office equipment, automotive parts, motorcycles, electric bicycles, industrial robots, wind power generation equipment, medical equipment, textile machinery, agricultural machinery, pumps, and fans, among other fields.
