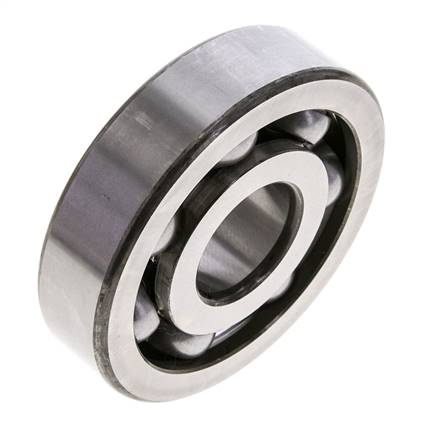

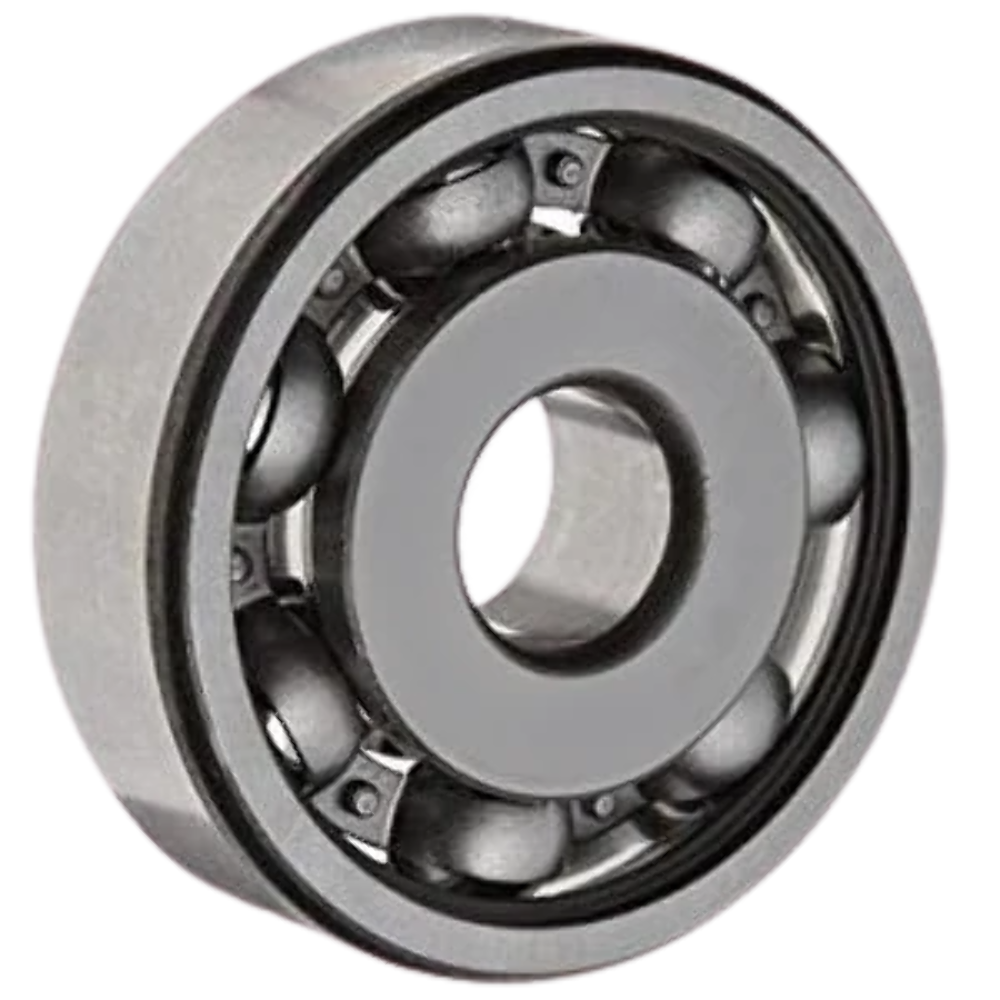

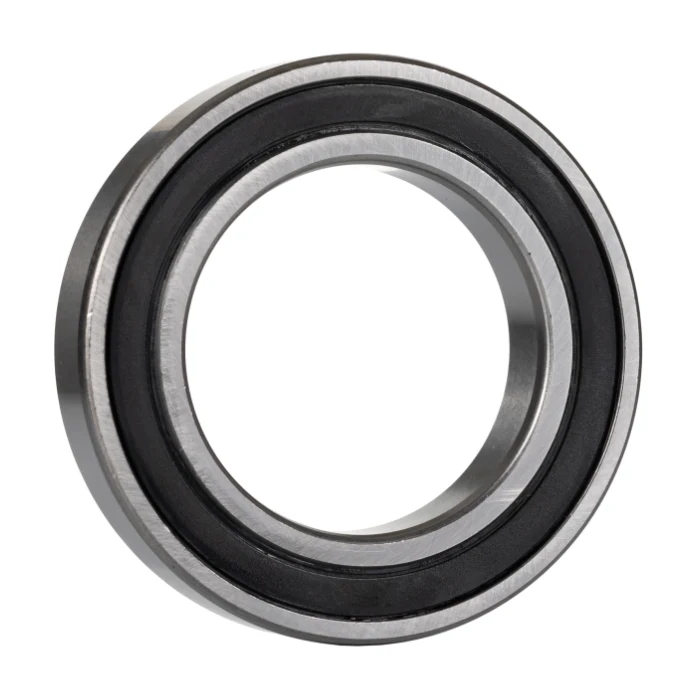

Deep Groove Ball Bearing:61802

Product Name: Deep Groove Ball Bearing:61802
Type: Ball Bearing Brand : FODA
New Model: 61802 Old Model: 1000802
Inner Diameter (mm): 15 Outer Diameter (mm): 24
Thickness (mm): 5 Weight (kg/pc): 0.007

Description

Basic Parameters

In bearing 61802, “6”: Indicates that the bearing type is a deep groove ball bearing, which is highly common with a simple structure and easy usability, mainly designed to bear radial loads and some axial load. “18”: The digit “8” here represents the bearing’s diameter series code, with the 8 series typically denoting the extra light series, indicating the bearing’s inner and outer diameter dimensions belong to the extra light category. “02”: Indicates the bearing’s inner diameter code. For inner diameter codes below 04, specific rules apply: 00 = 10mm, 01 = 12mm, 02 = 15mm, and 03 = 17mm. Thus, the inner diameter of the 61802 bearing is 15mm. The tolerance grade is not explicitly shown in the model but is generally assumed to be grade 0, the normal precision level, representing standard dimensional and rotational accuracy. In summary, the bearing model 61802 signifies a deep groove ball bearing, extra light series (diameter series 8), inner diameter of 15mm, and normal precision level, suitable for various applications including high-speed transmission and scenarios requiring some axial load capacity.

Working Principle

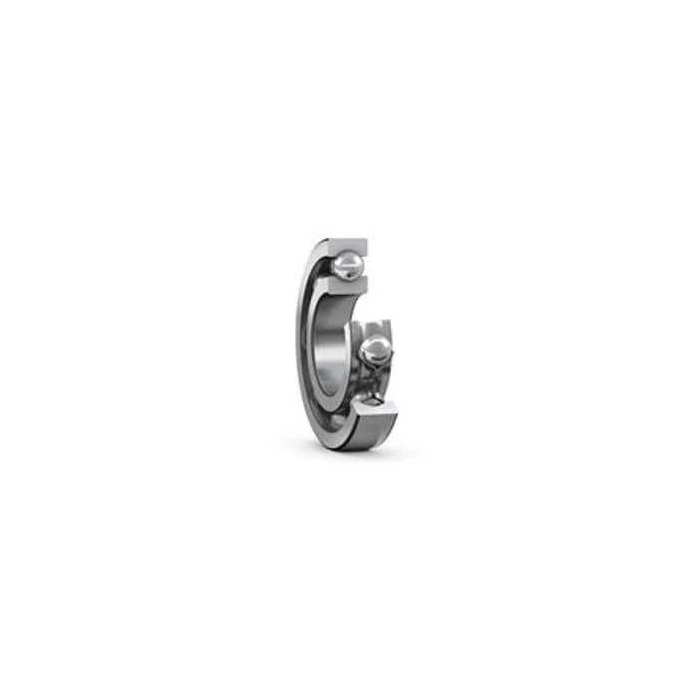

The working principle of the Deep Groove Ball Bearing 61802 revolves around its fundamental structure and the mechanical interaction of its components. It consists of an inner ring, an outer ring, a set of precision-grade steel balls, and a retainer (cage). The inner and outer rings feature continuous, semi-circular raceways that form a deep groove path for the balls.
When the bearing is in operation, the steel balls roll between the inner and outer ring raceways, converting sliding friction into minimal rolling friction. This allows the bearing to efficiently transmit radial loads (forces perpendicular to the shaft) and moderate axial loads (forces parallel to the shaft). The deep groove design provides additional contact area between the balls and raceways, enhancing the bearing’s capacity to handle combined radial-axial loads and misalignment tolerance.
The retainer separates the balls evenly, preventing direct contact and reducing friction while maintaining consistent spacing for smooth, high-speed rotation. In the 61802 model, the extra-light diameter series (18) and compact dimensions (15mm ID, 24mm OD, 5mm width) optimize it for applications requiring lightweight construction and space efficiency. The standard precision grade (Grade 0) ensures reliable dimensional accuracy, making it suitable for general-purpose high-speed scenarios, such as small motors, precision instruments, or automation systems, where low noise and stable rotational performance are critical.

Product Application

The Deep Groove Ball Bearing 61802 (61802) is widely applied in various industries and mechanical systems due to its compact design, high-speed capability, and ability to handle light to medium radial loads with some axial load capacity. Its extra light diameter series (18) and 15mm inner diameter make it ideal for space-constrained applications requiring lightweight construction. Common uses include small electric motors (e.g., in household appliances like fans, blenders, and power tools), precision instruments (such as optical equipment and measurement devices), automotive auxiliary systems (e.g., electric power steering motors, air conditioning compressors), office machinery (printers, copiers, and scanners), textile machinery (spinning and weaving equipment with high-speed rotating components), and automation systems (robot joints, conveyor belts, and linear motion guides). Additionally, it is suitable for medical devices (low-noise applications like diagnostic equipment) and consumer electronics (small gearboxes in drones or portable electronics). The bearing’s standard precision grade (grade 0) ensures reliable dimensional accuracy and rotational smoothness in general-purpose applications, while its simple structure enables easy installation and maintenance across diverse operational environments.



Product List

 Bearing No. Dimensions (mm) Basic Load Rating (N)      Weight (kg)
ISO GOST d D B Dyn. C Stat. C0
61802 1000802 15 24 5 1560 800 0.007
61803 1000803 17 26 5 1680 930 0.008
61804 1000804 20 32 7 2700 1500 0.018
61805 1000805 25 37 7 4360 2600 0.022
61806 1000806 30 42 7 4490 2900 0.027
61807 1000807 35 47 7 4750 3200 0.030
61808 1000808 40 52 7 4940 3450 0.034
61809 1000809 45 58 7 6050 4300 0.040
61810 1000810 50 65 7 6240 4750 0.052
61811 1000811 55 72 9 8320 6200 0.083
61812 1000812 60 78 10 8710 6700 0.110
61813 1000813 65 85 10 12000 11500 0.130
61814 1000814 70 90 10 12100 11900 0.140
61815 1000815 75 95 10 12500 10800 0.150
61816 1000816 80 100 10 13300 12400 0.155
61817 1000817 85 110 13 19500 16600 0.270
61818 1000818 90 115 13 19900 17000 0.280
61819 1000819 95 120 13 19900 17600 0.300
61820 1000820 100 125 13 19900 18300 0.310
61821 1000821 105 130 13 20800 19600 0.320
61822 1000822 110 140 16 28100 30700 0.600
61824 1000824 120 150 16 29000 33000 0.650
61826 1000826 130 165 18 39000 43000 0.930
61828 1000828 140 175 18 40500 46500 0.990
61830 1000830 150 190 20 47500 54500 1.200
61832 1000832 160 200 20 49400 64000 1.300
61834 1000834 170 215 22 61800 78000 1.850
61836 1000836 180 225 22 62400 81500 2.000
61838 1000838 190 240 24 73000 88000 2.620
61840 1000840 200 250 24 76100 102000 2.700
61844 1000844 220 270 24 78000 110000 3.000
61848 1000848 240 300 28 98500 127000 4.600
61852 1000852 260 320 28 111000 163000 4.800
61856 1000856 280 350 33 138000 200000 7.400
61860 1000860 300 380 38 162000 210000 10.500
61864 1000864 320 400 38 168000 228000 10.900
61868 1000868 340 420 38 170000 236000 11.500
61872 1000872 360 440 38 187000 258000 12.300
61876 1000876 380 480 46 231000 340000 19.700
61880 1000880 400 500 46 235000 350000 20.600
61884 1000884 420 520 46 260000 405000 21.600
61888 1000888 440 540 46 264000 420000 22.500
61892 1000892 460 580 56 315000 515000 34.800
61896 1000896 480 600 56 325000 600000 36.500
