Deep Groove Ball Bearing:6300

Product Name: Deep Groove Ball Bearing:6300
Type: Ball Bearing Brand : FODA
New Model: 6300 Old Model: 300
Inner Diameter (mm): 10 Outer Diameter (mm): 35
Thickness (mm): 11 Weight (kg/pc): 0.054

Description

Basic Parameters

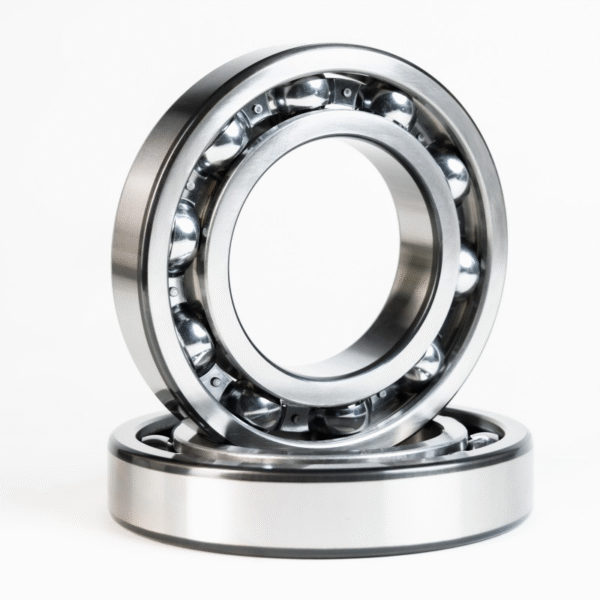

The Deep Groove Ball Bearing 6300 is a single-row bearing with standard dimensions including a 10 mm bore diameter, 35 mm outer diameter, and 11 mm width. It features a basic dynamic load rating (C) of 10.0 kN and a basic static load rating (C₀) of 5.8 kN, constructed from high-carbon chromium bearing steel (GCr15, compliant with GB/T 18254) for the rings and rolling elements, and a stamping steel or nylon cage. Weighing approximately 0.049 kg, it has a limiting speed of 17,000 r/min under grease lubrication and 20,000 r/min with oil lubrication, operating within a temperature range of -30°C to +120°C under normal conditions. With dimensional tolerances complying with ISO 492 (P0 grade) for general precision needs, this bearing is ideal for applications such as motors, pumps, compressors, conveyors, and textile machinery. Note that parameters are general standards; actual specifications may vary, and customized options (e.g., higher precision grades or special materials) are available upon request.

Product Application

The Deep Groove Ball Bearing: 6300 is a versatile, high-performance component designed for a wide range of mechanical systems requiring reliable rotational motion. Its balanced load-carrying capacity, low friction, and durable construction make it ideal for the following applications:
1. Industrial Machinery

Motors & Generators: Provides smooth rotation for electric motors in pumps, fans, and industrial drives, ensuring minimal energy loss and long service life.

Conveyor Systems: Supports heavy-duty rollers in material handling equipment, withstands radial and axial loads in high-speed conveying applications.

Compressors & Pumps: Maintains precision alignment in fluid-handling systems, reducing vibration and noise in air compressors, water pumps, and hydraulic machinery.

2. Household & Consumer Electronics

Appliances: Used in washing machines, dryers, and kitchen appliances (e.g., mixers) for quiet, efficient operation under varying loads.

Power Tools: Enables high-speed rotation in drills, saws, and grinders, delivering consistent performance for DIY and professional use.

3. Automotive Systems

Engine Accessories: Supports alternators, water pumps, and air conditioning compressors in vehicles, resisting thermal stress and contamination.

Steering & Suspension: Enhances stability in power steering systems and wheel hubs (in some light-duty applications), ensuring responsive handling.

4. Textile & Printing Machinery

Looms & Spinning Equipment: Maintains accuracy in high-speed textile production, minimizing downtime in yarn processing and fabric weaving.

Printing Presses: Facilitates precise roller alignment in commercial printers, reducing misalignment errors and improving output quality.

5. Agricultural & Construction Equipment

Irrigation Pumps: Operates reliably in harsh environments with dust and moisture, supporting water supply systems in farms and construction sites.

Small Machinery: Used in tractors (auxiliary drives), lawnmowers, and garden tools for robust, cost-effective rotational support.

Product List

 Bearing No. Dimensions (mm) Basic Load Rating (N)      Weight (kg)
ISO GOST d D B Dyn. C Stat. C0
6300 300 10 35 11 8060 3400 0.054
6301 301 12 37 12 9750 4150 0.063
6302 302 15 42 13 11400 5400 0.087
6303 303 17 47 14 13500 6550 0.117
6304 304 20 52 15 15900 7800 0.153
6305 305 25 62 17 22500 11600 0.238
6306 306 30 72 19 28100 16000 0.360
6307 307 35 80 21 33200 19000 0.467
6308 308 40 90 23 41000 24000 0.640
6309 309 45 100 25 52700 31500 0.843
6310 310 50 110 27 61800 38000 1.097
6311 311 55 120 29 71500 45000 1.377
6312 312 60 130 31 81900 52000 1.733
6313 313 65 140 33 92300 60000 2.153
6314 314 70 150 35 104000 68000 2.560
6315 315 75 160 37 111400 76500 3.120
6316 316 80 170 39 124000 86500 3.680
6317 317 85 180 41 133000 96500 4.303
6318 318 90 190 43 143000 108000 4.967
6319 319 95 200 45 153000 118000 5.710
6320 320 100 215 47 174000 140000 7.633
6321 321 105 225 49 182000 153000 8.677
6322 322 110 240 50 203000 180000 9.603
6324 324 120 260 55 208000 186000 12.750
6326 326 130 280 58 230000 216000 18.400
6328 328 140 300 62 251000 245000 22.000
6330 330 150 320 65 276000 285000 23.000
6332 332 160 340 68 285000 300000 29.000
6334 334 170 360 72 312000 340000 34.500
6336 336 180 380 75 351000 405000 42.500
6338 338 190 400 78 371000 430000 49.000
6340 340 200 420 80 377000 465000 55.500
6344 344 220 460 88 410000 520000 60.800
6348 348 240 500 95 470000 624000 93.300
6352 352 260 540 102 531000 741000 116.000
6356 356 280 580 108 568000 845000 145.000
6360 360 300 620 109 593000 886000 169.000
6364 364 320 670 112 634000 1010000 207.000
