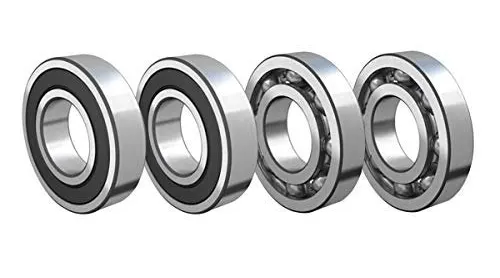

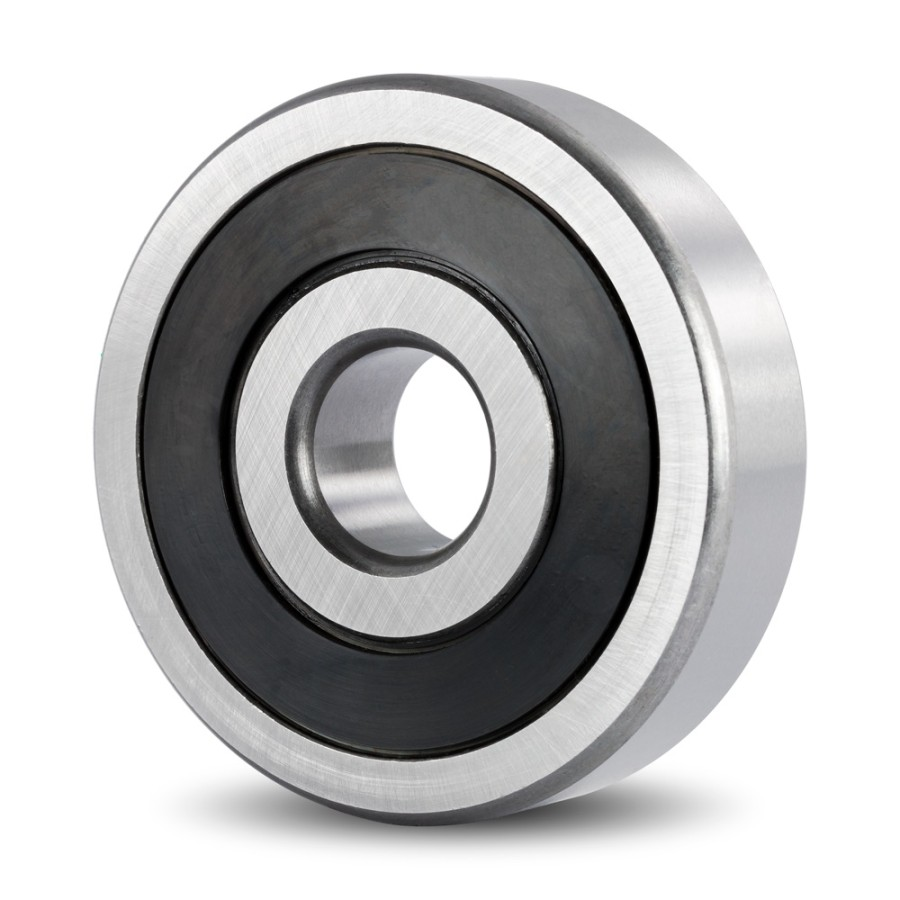

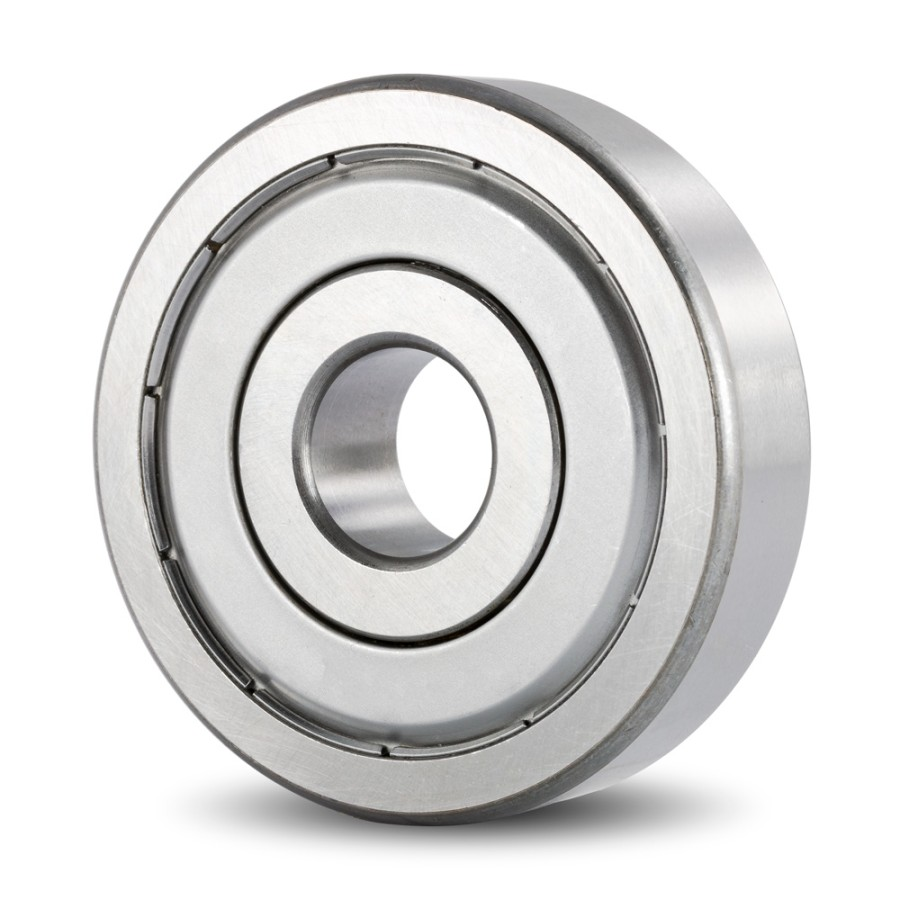

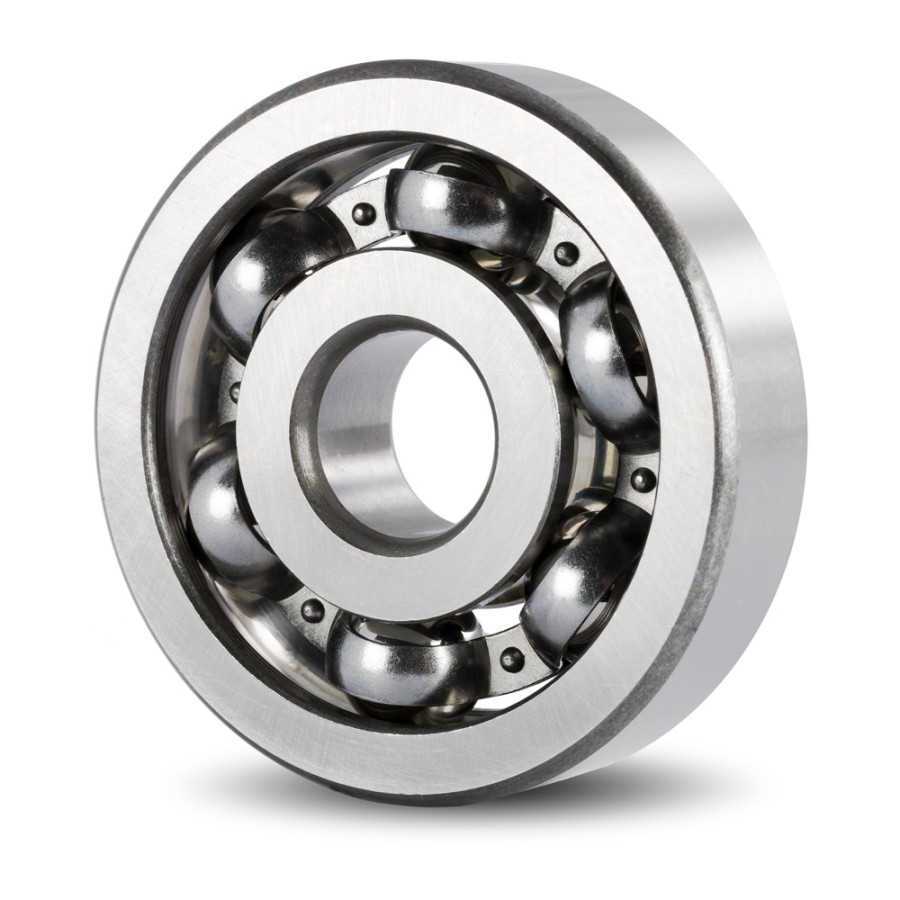

Deep Groove Ball Bearing:6410

Product Name: Deep Groove Ball Bearing:6410
Type: Ball Bearing Brand : FODA
New Model: 6410 Old Model: 410
Inner Diameter (mm): 50 Outer Diameter (mm): 130
Thickness (mm): 31 Weight (kg/pc): 1.9

Description

Basic Parameters

The model 6410 Deep Groove Ball Bearing is a heavy-duty rolling bearing designed for robust industrial applications. In this designation, the digit “6” indicates it is a deep groove ball bearing, characterized by a simple structure and high-speed compatibility; the “4” represents the heavy diameter series, signifying larger outer diameter and width dimensions for enhanced radial load capacity compared to lighter series; and “10” is the bore diameter code, with the actual inner diameter calculated as 10 × 5 = 50 mm. With basic dimensions of 50 mm ID, 130 mm OD, and 31 mm width (old model: 410), it typically operates at P0 tolerance grade (standard precision) for general industrial use. Designed to primarily carry radial loads while accommodating moderate axial loads, its heavy-series construction makes it suitable for high-load scenarios such as mining equipment, heavy-duty reducers, large motors, cranes, and conveyors. It offers a balance of compact design, high durability, and cost-effectiveness, performing reliably at moderate to high rotational speeds. Overall, the 6410 bearing is a versatile solution for applications requiring substantial radial load capacity and medium-precision performance.

Product Application

The 6410 Deep Groove Ball Bearing is engineered for high-load industrial environments where robust radial load capacity and reliable performance are critical. Its heavy-series design (diameter series “4”) and 50mm inner diameter (bore code “10”) make it ideal for applications requiring substantial load-bearing capability alongside moderate axial load resistance and medium-to-high-speed operation.
1.Heavy Machinery & Industrial Equipment

Mining & Quarrying: Used in conveyor systems, jaw crushers, ball mills, and ore screening machines to support heavy rotating shafts under constant radial loads from bulk material transport.

Construction Machinery: Installed in excavator swing drives, wheel loaders, and crane bogie systems, where it withstands dynamic loads from uneven terrain and repetitive motion.

Industrial Gearboxes & Reducers: Integrates into heavy-duty reducers for wind turbines (low-speed shafts) and industrial gear drives, ensuring stable power transmission under high torque.

2.Power Generation & Electrical Systems

Large Electric Motors & Generators: Supports the rotor shafts of medium-to-high-power motors (e.g., 50-200kW) in pumps, fans, and compressors, balancing radial forces from eccentric loads and enabling smooth high-speed rotation (up to 3,000 RPM under ideal conditions).

Hydraulic Systems: Used in hydraulic pumps and motors for industrial presses and injection molding machines, where it handles radial loads from pressure fluctuations and maintains alignment for precise motion control.

3.Material Handling & Conveyance

Logistics & Warehousing: Installed in conveyor rollers, palletizers, and stacker-reclaimers, enduring heavy payloads and frequent start-stop cycles in distribution centers and manufacturing plants.

Transportation Equipment: Fits into truck wheel hubs (non-drive axles) and railway carriage bearings (low-speed applications), providing reliable load support for vehicles operating under varying road/rail conditions.

4.General Industrial Machinery

Woodworking & Metalworking: Used in lathe spindles, milling machine drives, and sawing equipment, where it balances radial forces from cutting tools and ensures dimensional accuracy during machining.

Agricultural Machinery: Integrates into combine harvester drives, tractor PTO shafts, and irrigation pumps, resisting dust, moisture, and shock loads in harsh field environments.

Product List

 Bearing No. Dimensions (mm) Basic Load Rating (N)      Weight (kg)
ISO GOST d D B Dyn. C Stat. C0
6405 405 25 80 21 35800 19300 0.530
6406 406 30 90 23 43600 23600 0.740
6407 407 35 100 25 55300 31000 0.950
6408 408 40 110 27 63700 36500 1.250
6409 409 45 120 29 76100 45000 1.550
6410 410 50 130 31 87100 52000 1.900
6411 411 55 140 33 99500 62000 2.300
6412 412 60 150 35 108000 69500 2.750
6413 413 65 160 37 119000 78000 3.300
6414 414 70 180 42 143000 10400 4.850
6415 415 75 190 45 153000 114000 6.800
6416 416 80 200 48 162000 125000 6.422
6417 417 85 210 52 174000 137000 9.500
6418 418 90 225 54 186000 150000 9.560
6419 419 95 240 55 188000 153000 11.000
6420 420 100 250 58 206000 175000 12.900
6421 421 105 260 60 222000 179000 16.800
6422 422 110 280 65 247000 227000 21.300
6424 424 120 310 72 291000 287000 29.000
6426 426 130 340 78 300000 298000 38.000
