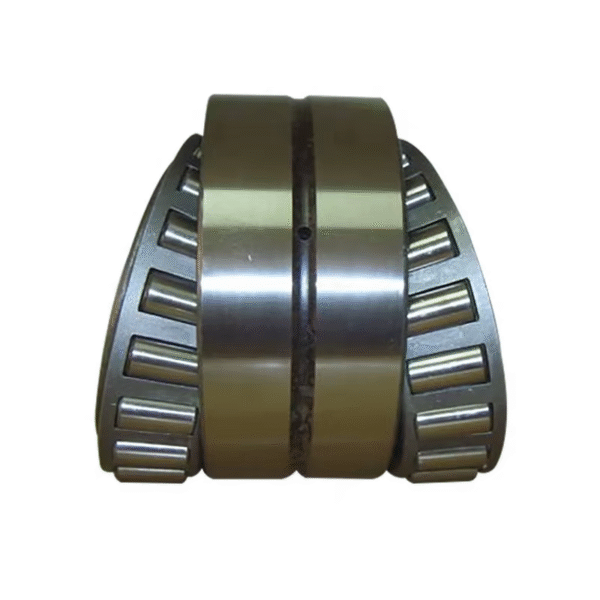

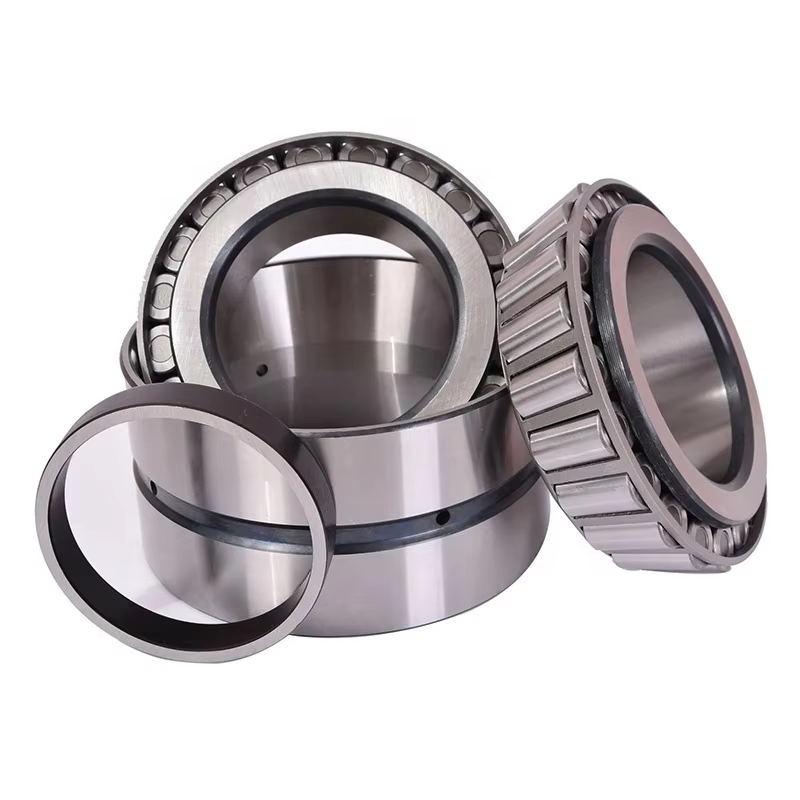

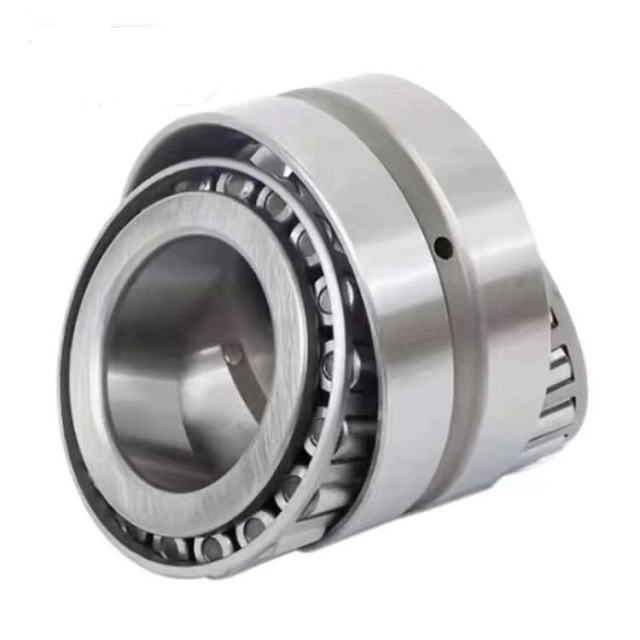

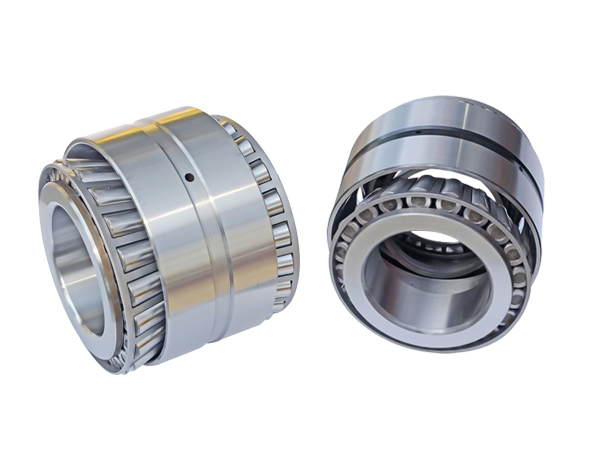

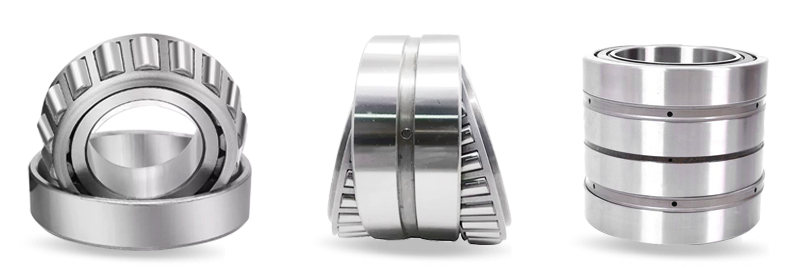

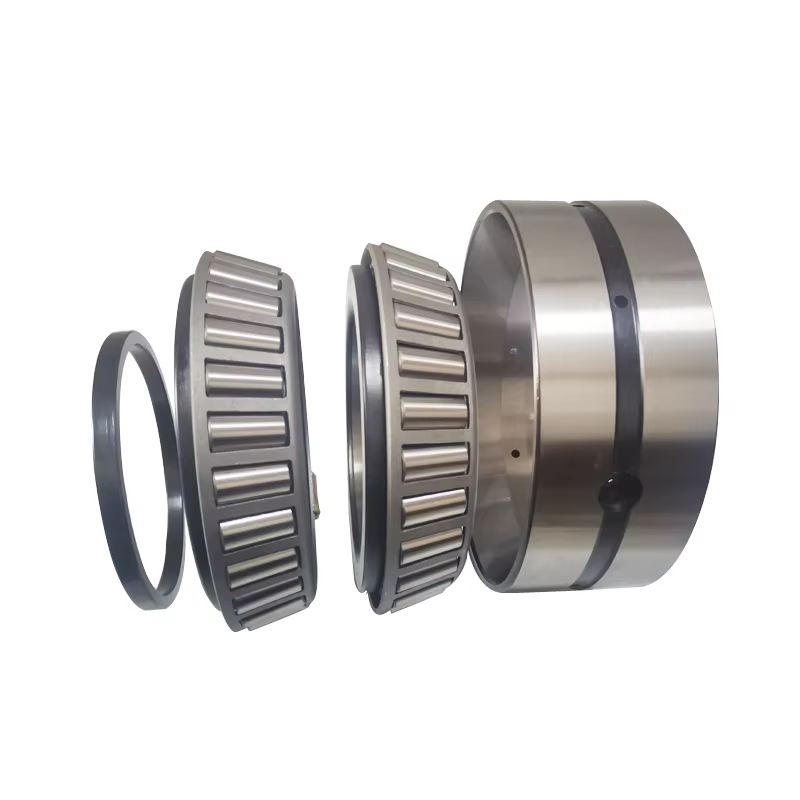

Double Row Tapered Roller Bearings: 351316
Double Row Tapered Roller Bearings: 351316 - Image 2
Double Row Tapered Roller Bearings: 351316 - Image 3
Double Row Tapered Roller Bearings: 351316 - Image 4

Double Row Tapered Roller Bearings: 351316

Product Name: Double Row Tapered Roller Bearings: 351316
Type: Roller Bearings Brand : FODA
New Model: 351316 Old Model: 297316E
Inner Diameter (mm): 80 Outer Diameter (mm): 170
Thickness (mm): 94 Weight (kg/pc):
Category:

Description

Basic Parameters

In the double row tapered roller bearing model 351316:
“3” indicates the bearing type is a tapered roller bearing. This type features a tapered contact between the rollers and raceways, enabling it to handle significant radial and axial loads simultaneously. The double-row design further enhances load capacity and stiffness, making it suitable for applications requiring stable performance under combined loads.



“5” represents the width series code, specifying the bearing’s dimensional range in the axial direction. The “5” series typically denotes a medium-width configuration, balancing installation space constraints with optimal load distribution across various mechanical assemblies.



“13” denotes the diameter series code, which corresponds to specific inner and outer diameter ranges. In the 351316 model, the “13” series, combined with the width series and inner diameter code, precisely defines the bearing’s radial dimensions to ensure compatibility with shafts and housings.



“16” is the inner diameter code. Following the standard calculation rule (inner diameter = code × 5), the bearing’s inner diameter is 16 × 5 = 80mm, making it suitable for shafts of corresponding size.



The tolerance grade is not explicitly marked, defaulting to the normal class (PN), which provides dimensional and rotational accuracy adequate for most industrial machinery. This grade balances reliability with cost-effectiveness for general-purpose applications.

Summary: The 351316 is a double row tapered roller bearing with medium width, diameter series 13, 80mm inner diameter, and normal precision. Its dual-row structure enhances load-bearing capabilities, making it ideal for heavy machinery, industrial gearboxes, agricultural equipment, and other applications requiring high stiffness and resistance to combined loads. It excels in demanding environments with vibration,and dust, ensuring stable operation and extended service life.







Product Application

The 351316 double row tapered roller bearings are widely used in heavy-duty machinery, industrial reducers, agricultural equipment, mining equipment, metallurgical machinery, rail transit, wind power generation, lifting machinery, paper machinery, petroleum machinery, cement equipment, port machinery, forestry machinery, marine equipment, railway vehicles, power transmission systems, and material handling equipment, among other fields.​
Designed to withstand high combined radial and axial loads, these bearings deliver exceptional performance in applications demanding robust load capacity and precision. In heavy machinery such as wheel loaders and mobile cranes, they ensure stable operation under intense vibration and impact, maintaining reliable motion even in rough terrain. Industrial reducers leverage their double-row structure for efficient torque transmission, minimizing energy loss and enhancing system durability. Agricultural equipment like tractors and combine harvesters rely on them to handle fluctuating loads and harsh field conditions, improving power transfer and reducing downtime.​
In mining machinery such as jaw crushers and belt conveyors, the 351316 bearings excel in dusty, high-impact environments, providing long service life with minimal maintenance. Metallurgical rolling mills and steel processing lines benefit from their ability to endure high temperatures and heavy radial loads, ensuring smooth operation in continuous production cycles. Rail transit applications, including railway car axles and bogie systems, utilize their precision to maintain stable motion and reduce noise, critical for safe and efficient transportation. Wind power gearboxes and small-scale renewable energy systems rely on their reliability to withstand cyclic loads, while lifting machinery such as overhead cranes and elevator systems gain enhanced rigidity and load-bearing capacity.​

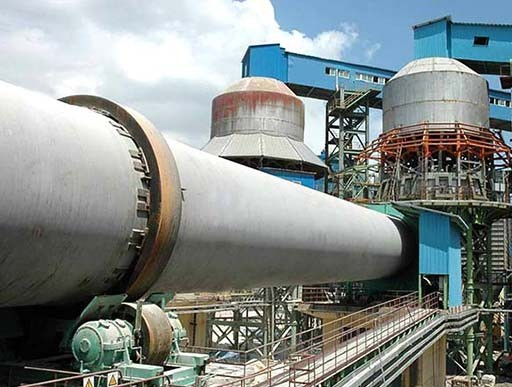

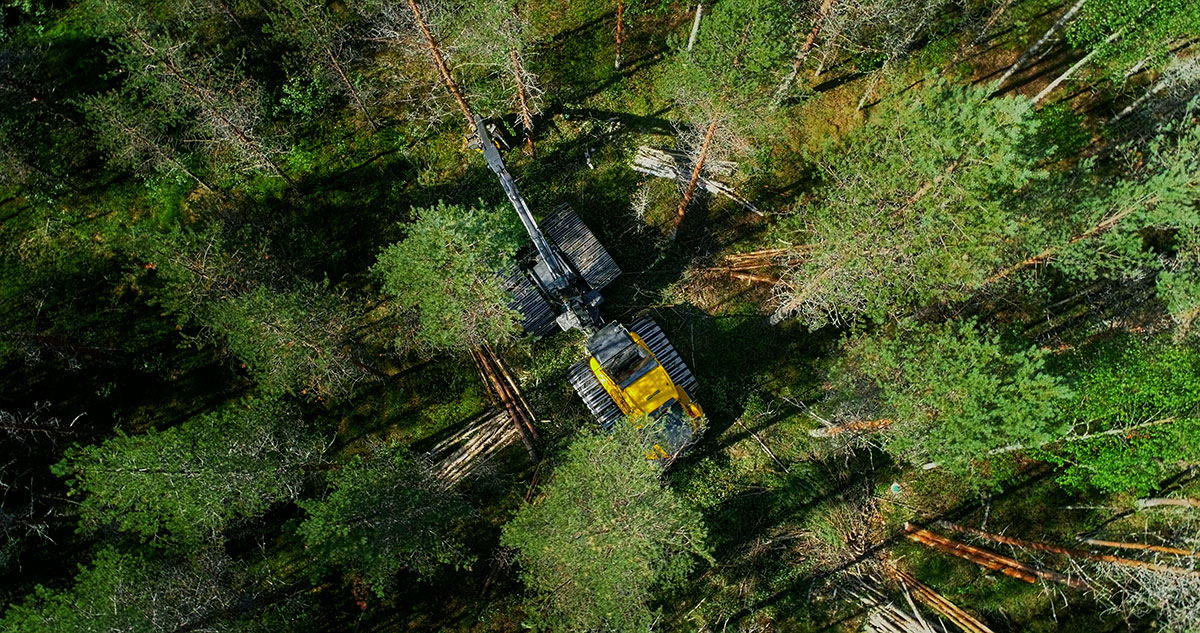

In paper making and petroleum drilling equipment, these bearings perform consistently under high-pressure and corrosive conditions, while in cement production and port handling machinery, they resist dust and moisture, ensuring long-term reliability. Their compact design with a 80mm inner diameter (calculated as 16×5) makes them ideal for space-constrained setups like forestry machinery and marine auxiliary drives. From general industrial applications to specialized mechanical systems, the 351316 bearings offer a balance of strength, precision, and durability, making them a trusted choice for demanding operational environments.

Product List

New Model Old Model Inner Diameter (mm) Outer Diameter (mm) Thickness (mm): New Model Old Model Inner Diameter (mm) Outer Diameter (mm) Thickness (mm):
352024 2097124E 120 180 88 351316 297316E 80 170 94
352026 2097126E 130 200 102 351317 297317E 85 180 99
352028 2097128E 140 210 104 351318 297318E 90 190 103
352030 2097130E 150 225 110 351319 297319E 95 200 109
352032 2097132E 160 240 116 351320 297320E 100 215 124
352034 2097134E 170 260 128 351321 297321E 105 225 127
352036 2097136E 180 280 134 351322 297322E 110 240 137
352038 2097138E 190 290 134 351324 297324E 120 260 148
352040 2097140E 200 310 152 351326 297326E 130 280 156
352044 2097144E 220 340 165 351328 297328E 140 300 168
352048 2097148E 240 360 165 351330 297330E 150 320 178
352052 2097152E 260 400 186 352208 97508E 40 80 55
352056 2097156E 280 420 186 352209 97509E 45 85 55
352060 2097160E 300 460 220 352210 97510E 50 90 55
352064 2097164E 320 480 220 352211 97511E 55 100 60
352068 2097168E 360 540 220 352212 97512E 60 110 66
352072 2097172E 400 540 220 352213 97513E 65 120 73
352080 2097180E 400 600 230 352214 97514E 70 125 74
352122 2097722E 110 180 95 352215 97515E 75 130 74
352124 2097724E 120 200 110 352216 97516E 80 140 78
352126 2097726E 130 210 110 352217 97517E 85 150 86
352128 2097728E 140 225 115 352218 97518E 90 160 94
352130 2097730E 150 250 138 352219 97519E 95 170 100
352132 2097732E 160 270 150 352220 97520E 100 180 107
352134 2097734E 170 280 150 352221 97521E 105 190 115
352136 2097736E 180 300 164 352222 97522E 110 200 121
352138 2097738E 190 320 170 352224 97524E 120 215 132
352140 2097740E 200 340 184
352144 2097744E 220 370 195
352148 2097748E 240 400 210
352152 2097752E 260 440 225
352930 2097930E 150 210 86
352932 2097932E 160 220 86
352934 2097934E 170 230 86
352936 2097936E 180 250 102
352938 2097938E 190 260 102
352940 2097940E 200 280 106
352944 2097944E 220 300 116
352948 2097948E 240 320 116
352952 2097952E 260 360 134
352956 2097956E 280 380 134
352960 2097960E 300 420 160
352964 2097964E 320 440 160
352968 2097968E 340 460 160
352972 2097972E 360 480 160
