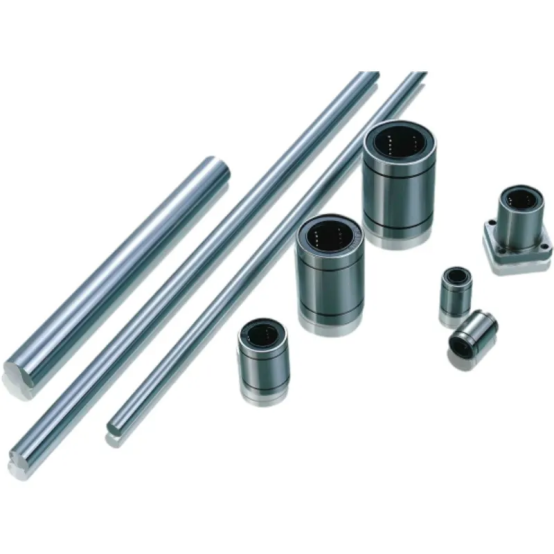

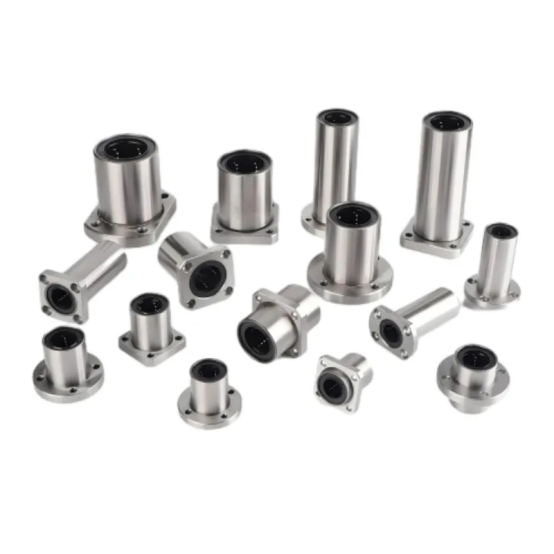

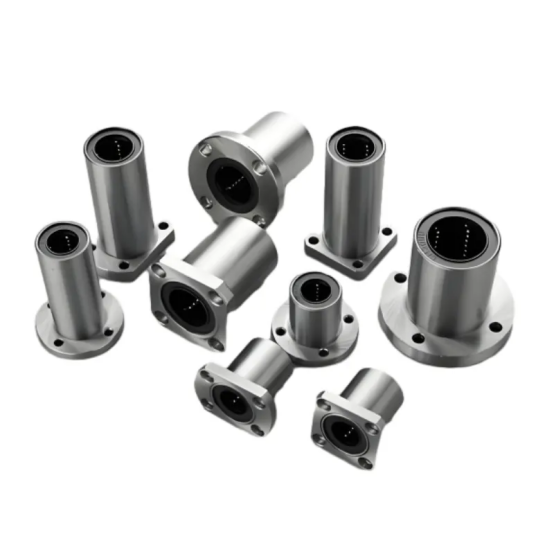

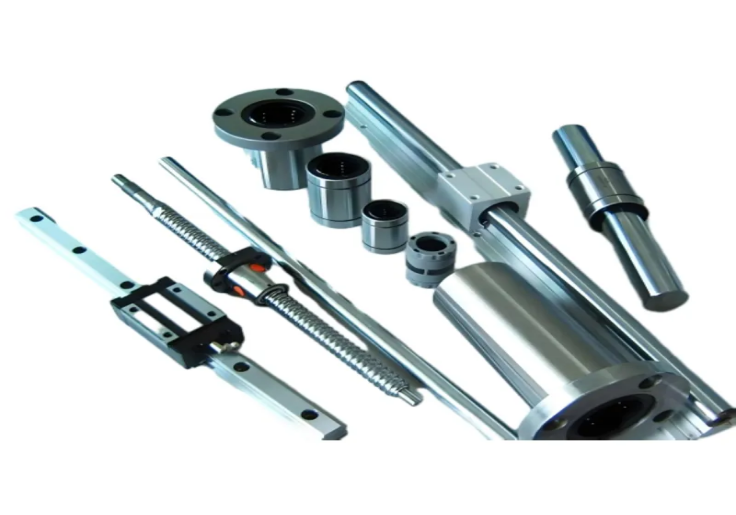

Linear Bearing

Description

Features



– High precision: Ensure the accuracy and stability of linear motion.
– Low friction: smoother movement and less energy loss.
– High rigidity: able to withstand large axial and radial loads.
– Simple maintenance: long service life, not easy to damage.

Categories



– According to the type of rolling element, it can be divided into ball linear bearings and roller linear bearings.
– According to the seal form can be divided into open linear bearings and sealed linear bearings.

Basic Parameters



– Inside diameter, outside diameter, length and other dimensional parameters.
– Rated dynamic and static loads.
– Limit speed.
– Accuracy level.

How It Works



Linear bearing is composed of bearing body, rolling body, cage and so on. When the shaft moves in a straight line in the bearing, the rolling body rolls between the bearing and the shaft, reducing friction resistance and achieving smooth linear movement.

Application Field



– Automation equipment: such as industrial robots, automated production lines, etc.
– Precision instruments: such as measuring instruments, optical instruments, etc.
– Machine tool equipment: such as CNC machine tools, machining centers, etc.
– Printing equipment: such as printing press, die-cutting machine, etc.
– Electronic equipment: such as semiconductor manufacturing equipment, electronic assembly equipment, etc.
