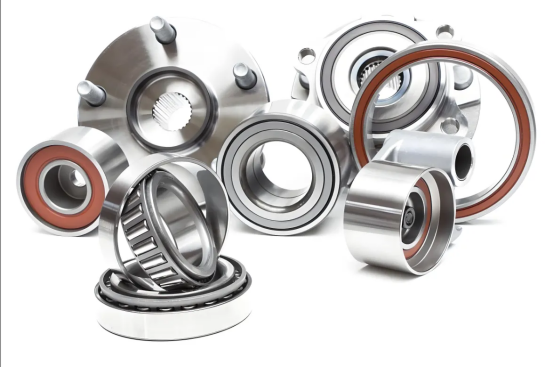

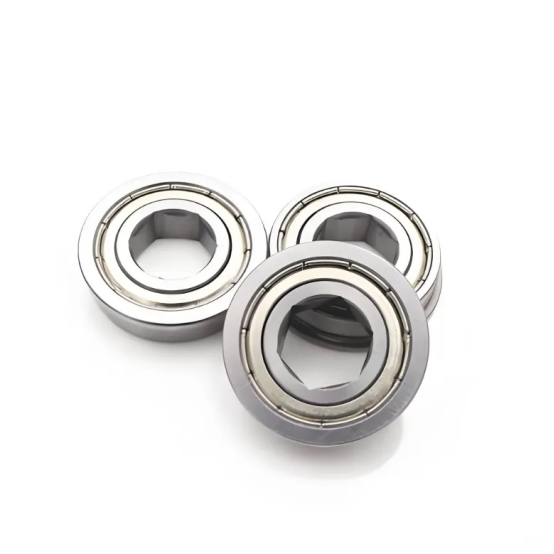

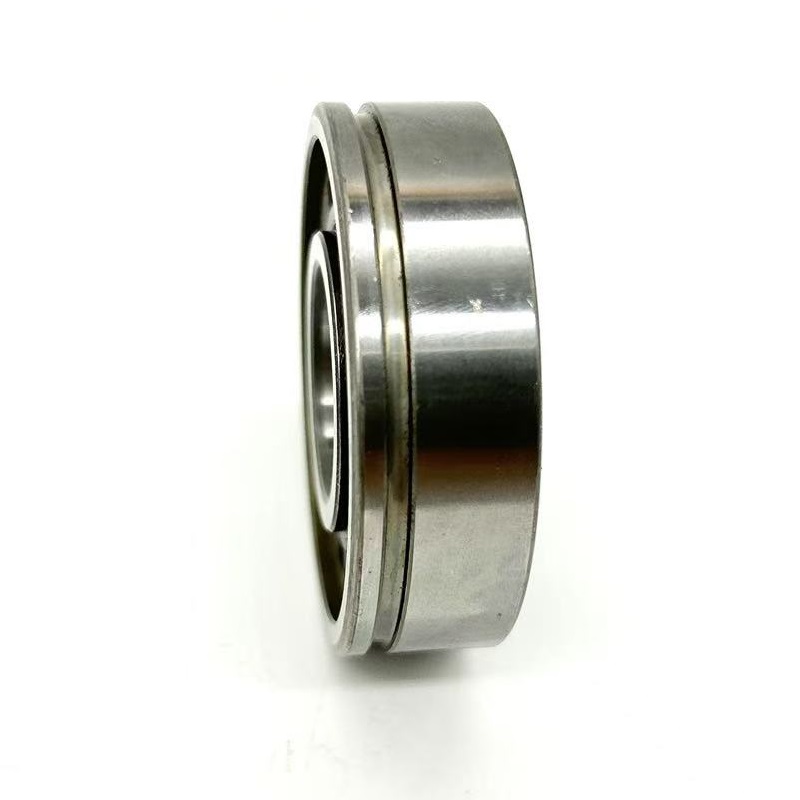

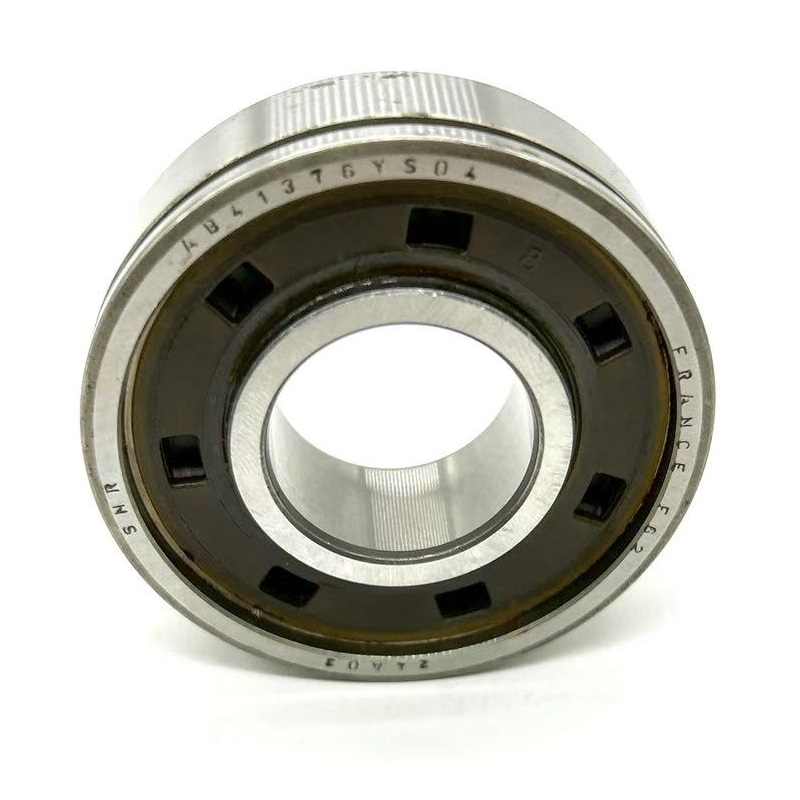

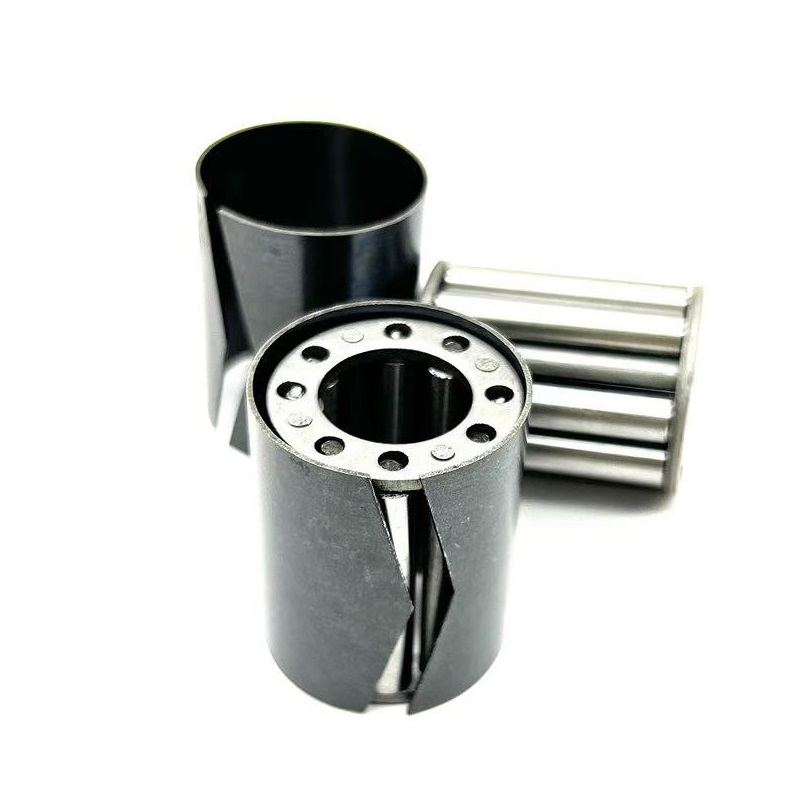

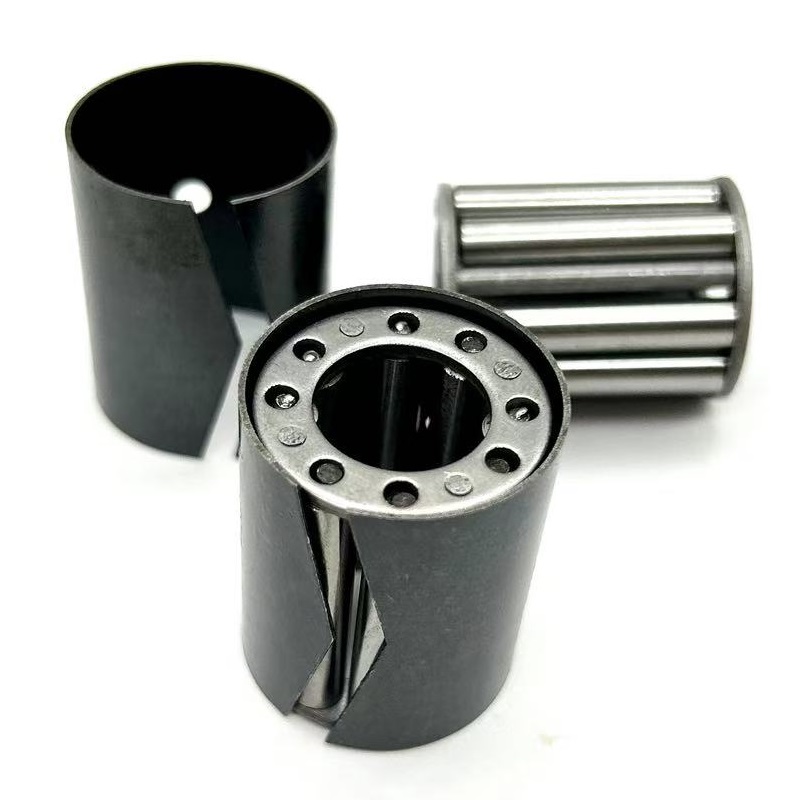

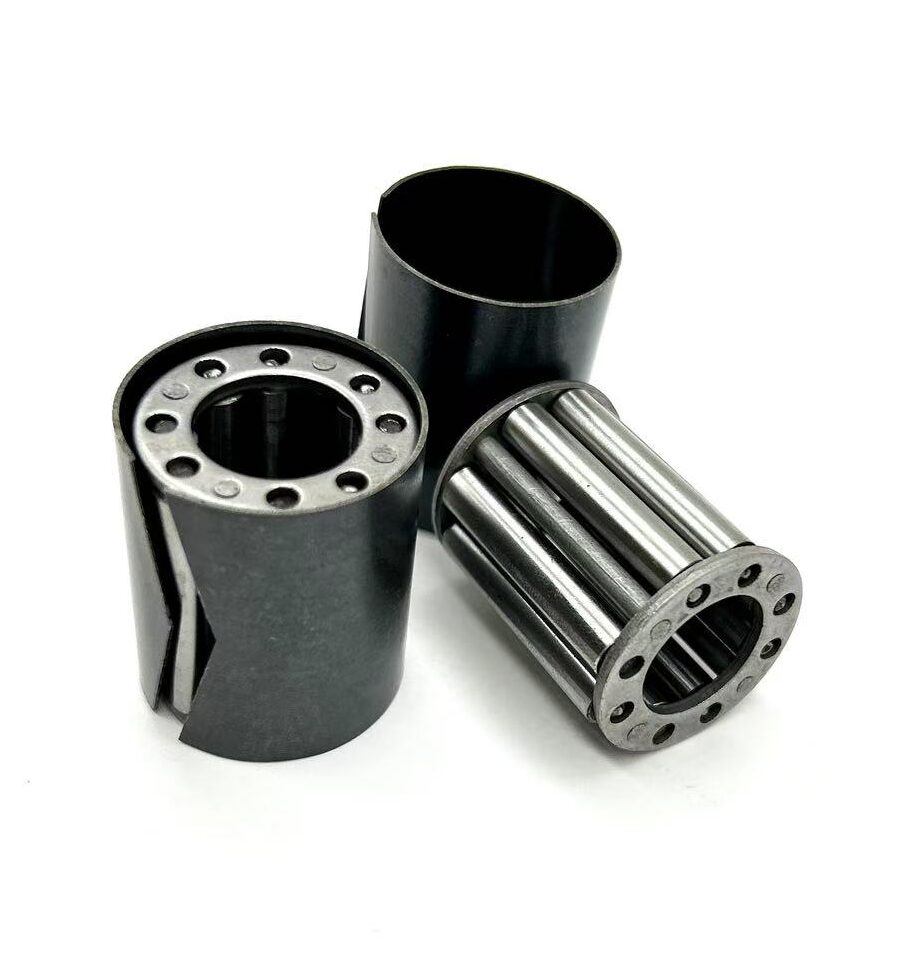

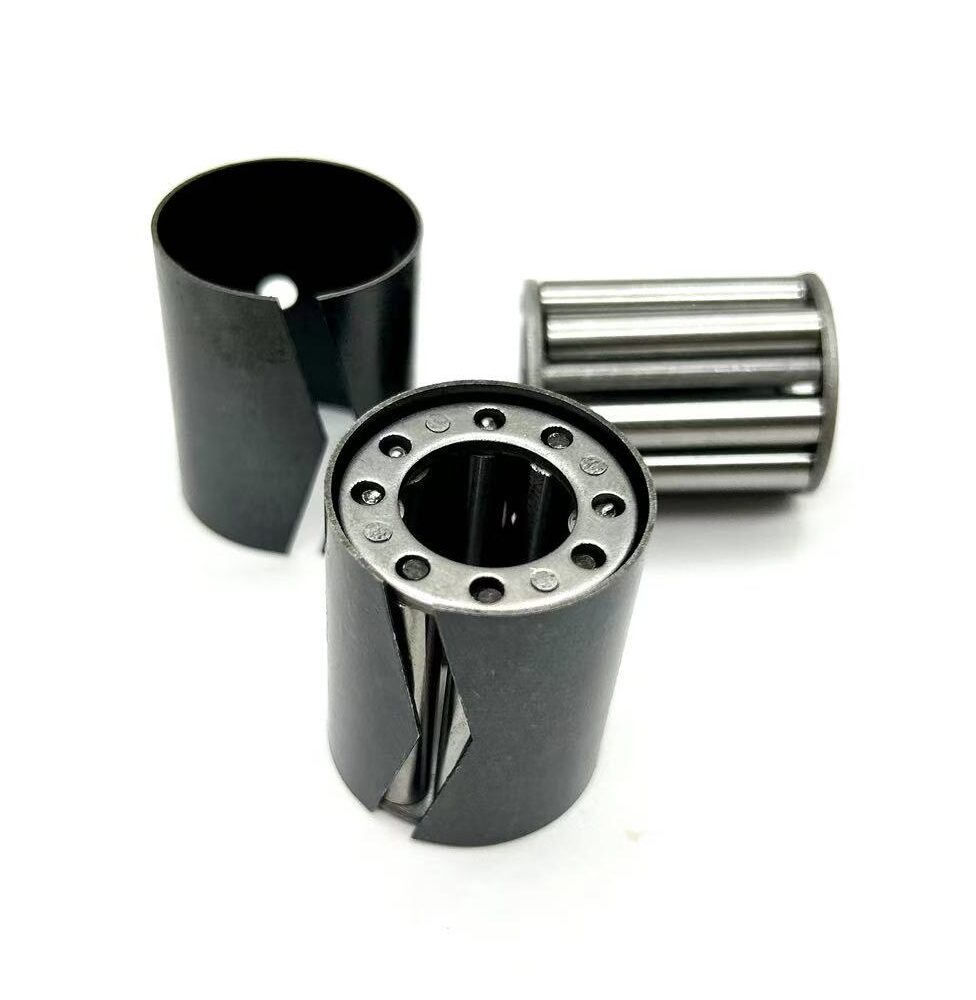

Custom Non-Standard Bearings

Description

Advantages of Custom Bearings

Customized bearings offer numerous advantages, primarily by being precisely engineered to meet specific operational requirements, ensuring optimal performance in unique applications. They allow for tailored material selection, such as high-strength alloys or corrosion-resistant coatings, to withstand harsh environments, extreme temperatures, or heavy loads, significantly enhancing durability and service life. Custom designs can also integrate special features like non-standard geometries, enhanced sealing mechanisms, or precision tolerances that off-the-shelf bearings cannot provide, improving system efficiency and reducing energy consumption. By aligning perfectly with the client’s mechanical specifications, customized bearings minimize downtime through reduced wear and tear, lower maintenance costs, and better compatibility with existing equipment. This level of personalization not only addresses specific engineering challenges but also delivers long-term reliability and cost-effectiveness, making them an ideal solution for industries requiring high-precision, specialized motion control, from aerospace and robotics to renewable energy and heavy machinery.

FODA’s Customization Capabilities

Custom bearings are designed specifically to meet the requirements that most standard bearings cannot fulfill. Unlike standard bearings, our custom options are specifically tailored to your needs through a comprehensive customization process. Our goal is always to provide you with products that perform well, have a long service life, and meet your exact specifications.Our bearings are designed and manufactured in a wide range of sizes to meet the needs of all types of applications. From consumer products to aerospace components to high-precision bearings for machinery, we can meet your requirements.FODA Bearing’s Design Capabilities:With over 20 years of experience and extensive design capabilities, It helps us meet different application needs.

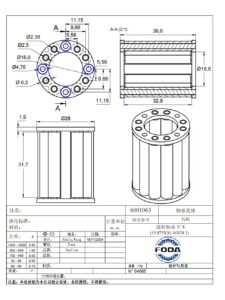

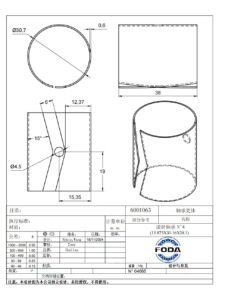

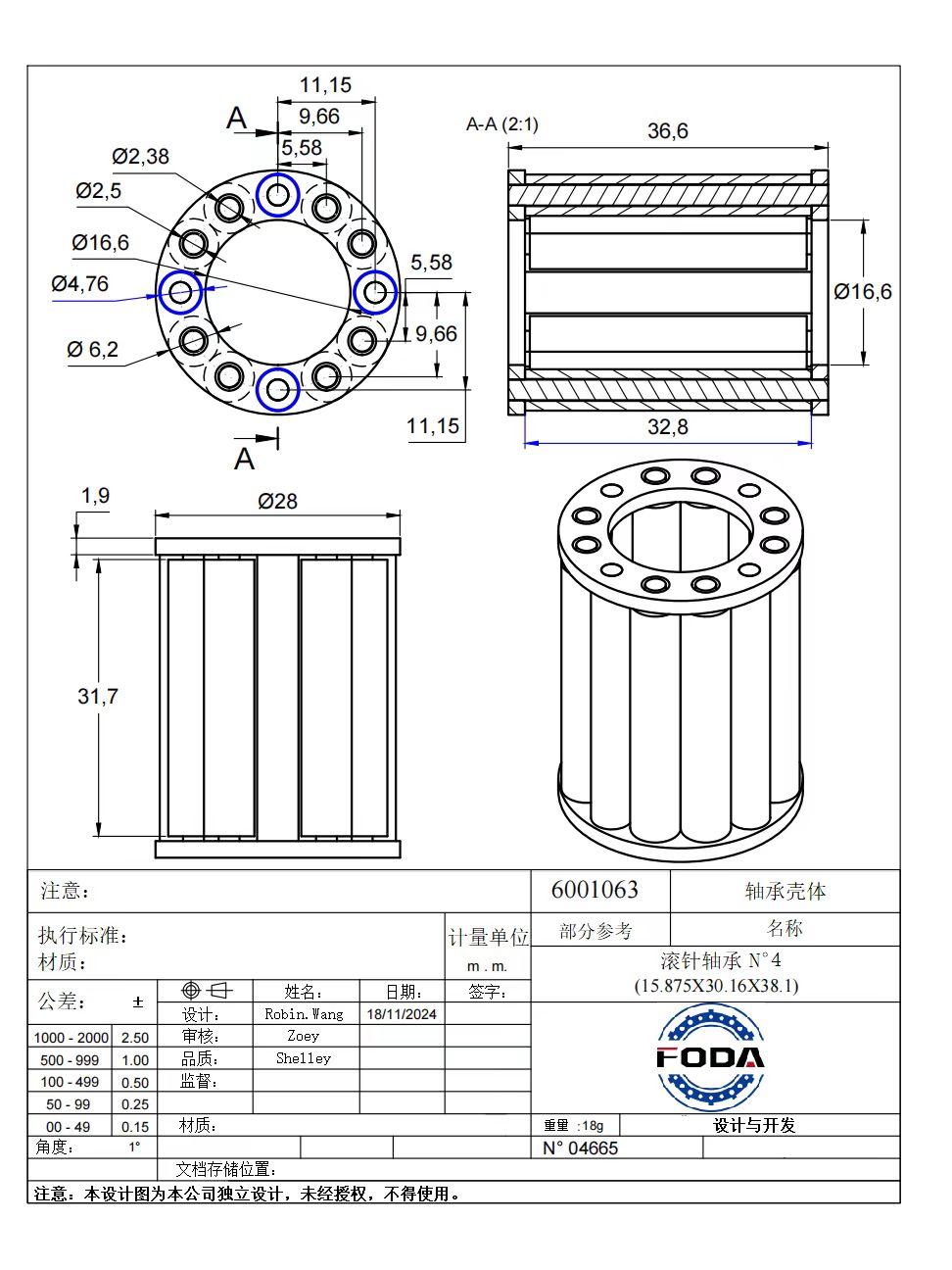

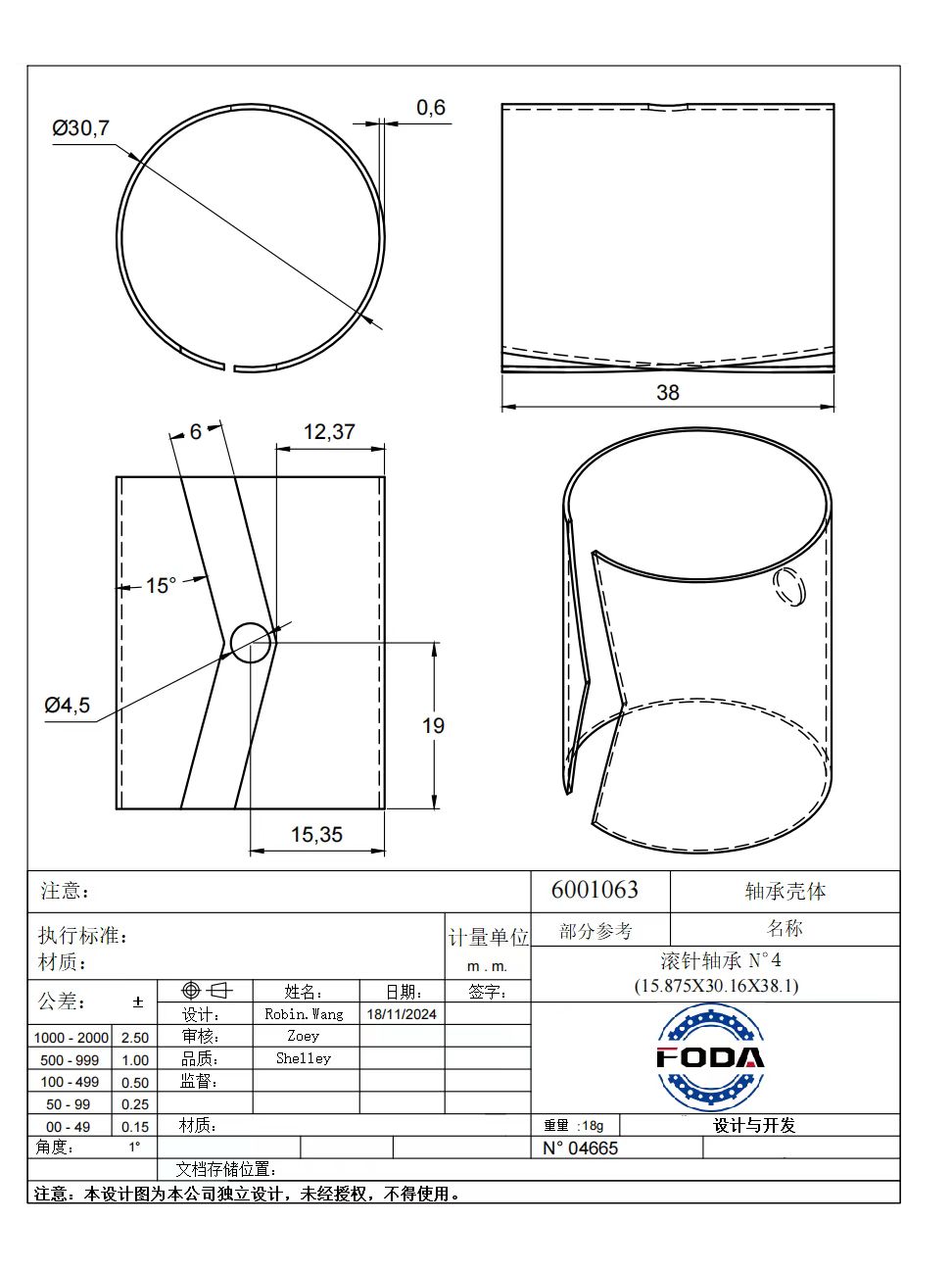

Customization according to drawings

1.Drawing Receipt and Review

In accordance with the technical requirements specified in the drawings, the company will select qualified suppliers to procure raw materials based on the specifications outlined in the evaluation report. We will rigorously verify quality certifications, conduct batch sampling to ensure compliance with chemical composition standards, and test mechanical properties using hardness and tensile testing machines before the materials are warehoused. For samples requiring molds, the design team will develop plans considering the shape, dimensions, and processing technology, while also taking into account factors such as strength, precision, wear resistance, and ease of demolding. These plans will be finalized through multi-departmental reviews before part processing commences. All processes adhere to customer standards regarding dimensions, material properties, and load-bearing capacity, ensuring dimensional accuracy, structural strength, and assembly suitability with compliant shape and surface roughness.

3. 1:1 Scale Reproduction Of The Drawing

After completing part processing, strict quality inspections are carried out to ensure that each part’s dimensional accuracy, shape precision, surface roughness, and material properties are identical to the sample. Qualified parts passing inspection are pre-assembled to check the fit precision and assembly effect between components. Through fine-tuning of part processing dimensions or optimization of the assembly process, the pre-assembled product achieves 1:1 replication of the drawing in terms of appearance, structure, and performance.

4.Finished Product Inspection

Customization according to samples

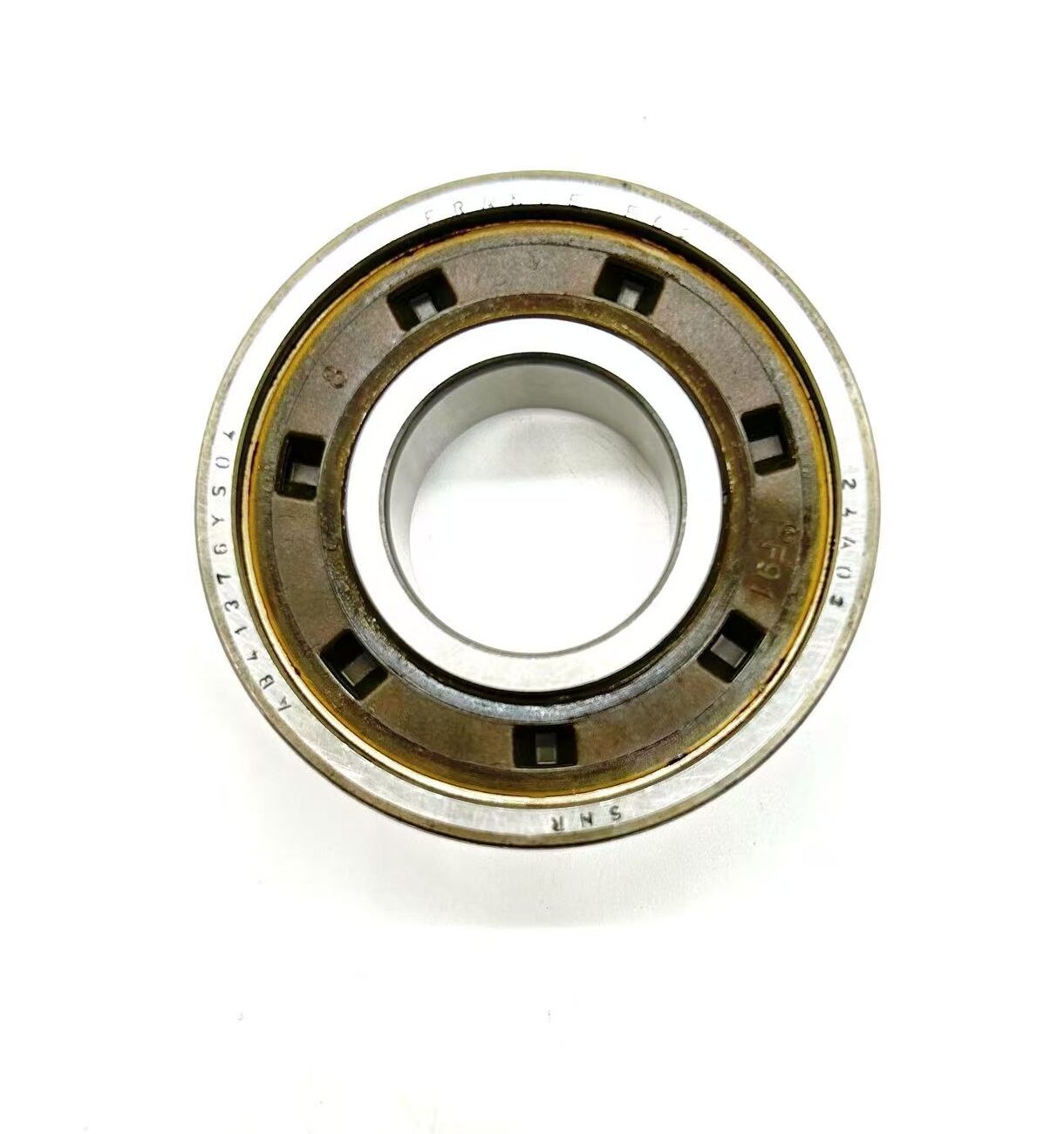

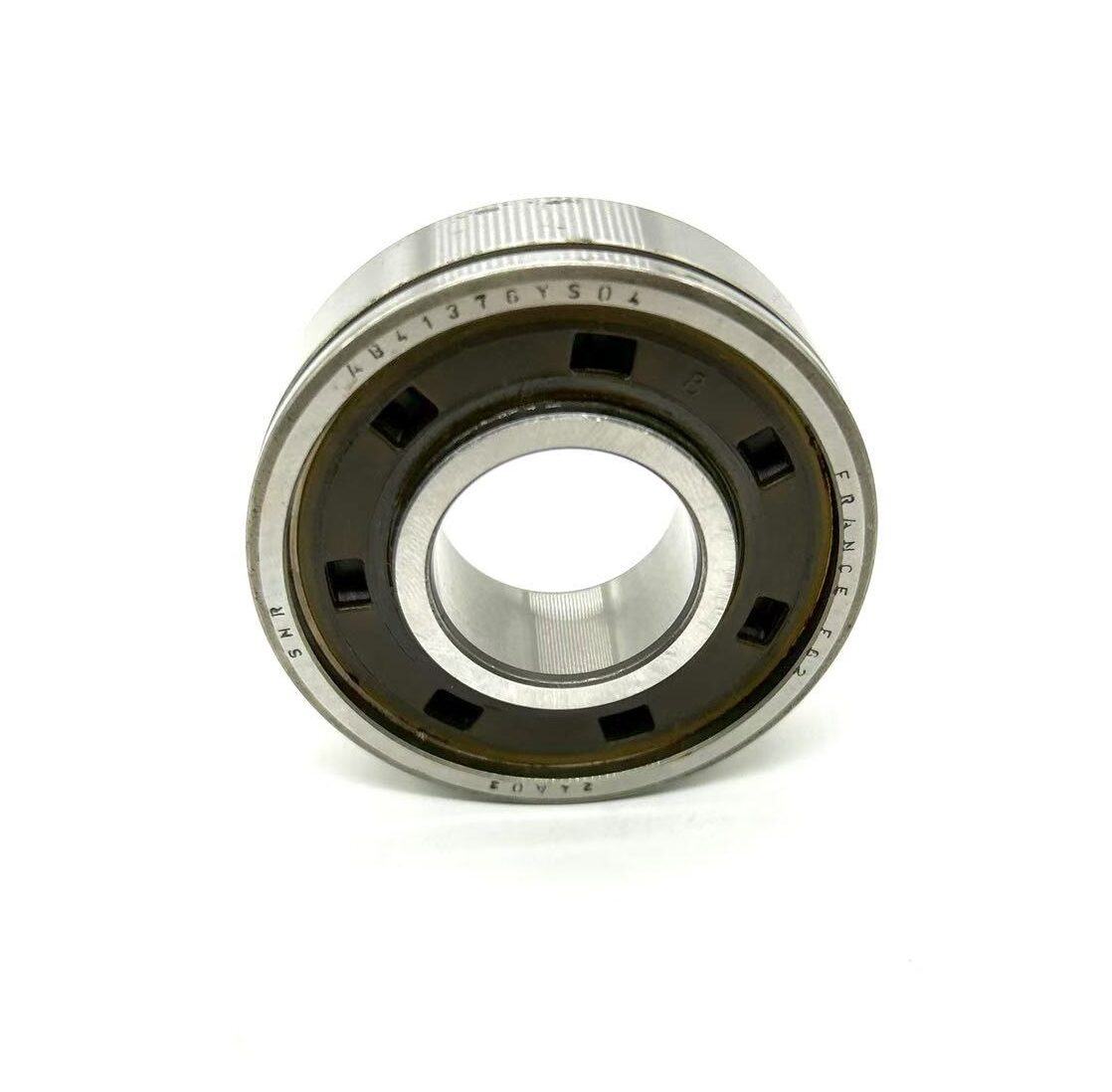

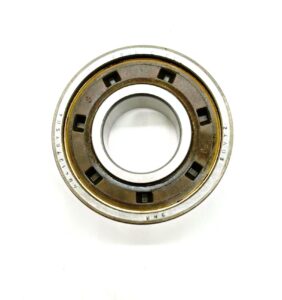

1.Customer Sample Submission:

Customers shall send the bearing samples to be processed to FODA BEARING. Upon receipt of the samples, dedicated personnel will be responsible for receipt registration, recording key information such as the receipt date, sender details, sample name, and quantity. We ensure that the samples remain undamaged during transportation. In case of any abnormalities, we will promptly communicate with the customer.

2.Sample Evaluation:

FODA BEARING will promptly assemble an experienced engineering and technical team to conduct a comprehensive and meticulous evaluation of the samples. High-precision measuring instruments will be used to accurately measure all dimensions of the samples, including inner diameter, outer diameter, width, raceway diameter, etc., with errors controlled within a minimal range. Meanwhile, equipment such as metallographic analyzers and hardness testers will be employed to analyze the material composition, hardness, and structural characteristics of the samples. The team will conduct in-depth research on the structural design of the samples to assess their rationality and machinability. For complex samples or those with special requirements, technical personnel will further communicate with customers to clarify technical details and quality standards, and prepare detailed evaluation reports to provide a basis for formulating subsequent processing techniques.

3.Material Preparation, Mold Making, and Processing:

4. 1:1 Sample Replication:

5.Sample Production and Submission for Customer Quality Inspection:

6.Enter production

Customozation according to requirement

We can determine the required radial and axial loads based on the client’s load requirements, assess the operating speed and precision requirements according to speed specifications, consider temperature, corrosion resistance, and lubrication needs based on environmental conditions, and select suitable materials for the application according to material properties to ensure they meet specific requirements.

FODA Bearings, we have achieved success in the custom bearing market because we are committed to perfect engineering design, the most advanced manufacturing capabilities, and a customer-centric approach. With a wealth of options and a customized approach, we are dedicated to providing high-performance and reliable bearing solutions for various applications. Contact us today to learn more about our bearing custom manufacturing capabilities.

Application

Custom bearings are crucial to a wide range of industries, each with unique requirements and challenges. Some key industries that use custom bearings include:

● Aerospace
Because we typically use custom bearings in aircraft engines, landing gear, and navigation systems, they need to maintain reliability under high speeds and extreme conditions like different temperatures.
● Automobiles
The transmission, wheels, and motors of automobiles, which require durability and precision, require custom bearings to improve the performance and safety of automobiles.
● Industrial machinery
Custom bearings are indispensable parts for heavy and specialized equipment in the industrial machinery industry. They can withstand high loads, reduce downtime, and improve the overall efficiency of manufacturing, mining, and construction machinery and equipment.

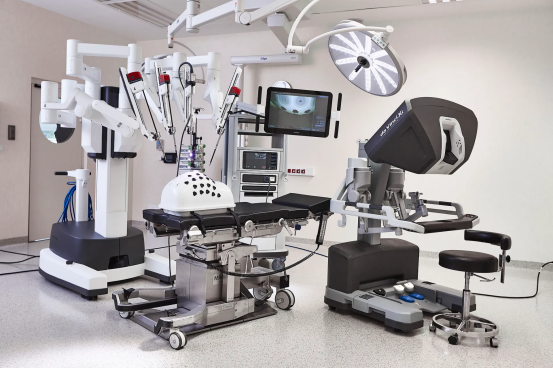

● Medical equipment
The precision and reliability of medical equipment are crucial. Custom bearings can be used in MRI machines, surgical tools, and diagnostic equipment to ensure smooth and accurate operation, which is crucial for patient safety and effective treatment.
● Emerging fields
Innovations in the field of robots and automation have driven the demand for custom bearings that can meet specific needs. These bearings enable advanced functions in robots, drones, and automation systems, promoting the development of cutting-edge fields.
