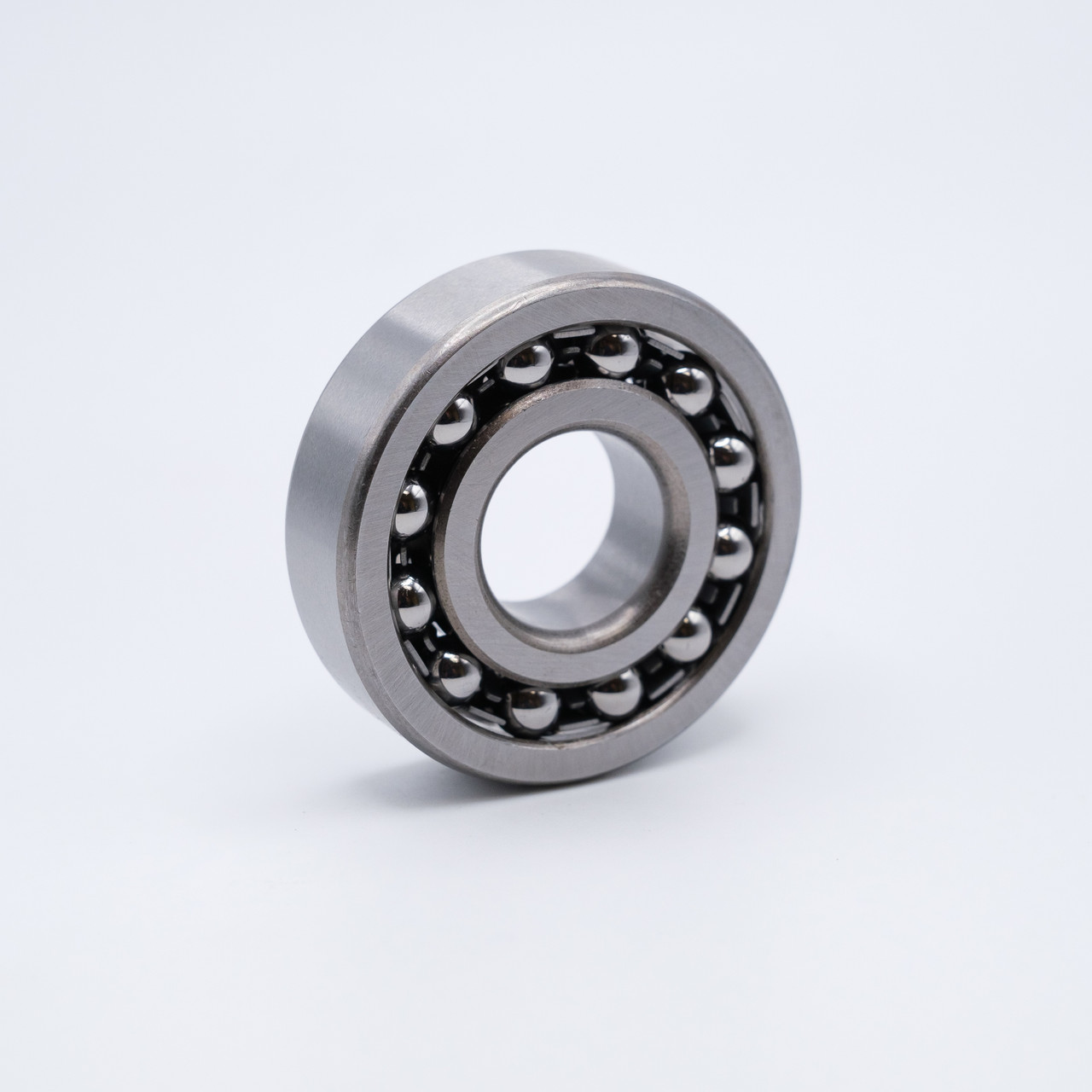

Self Aligning Ball Bearing：1300
Self Aligning Ball Bearing：1300 - Image 2
Self Aligning Ball Bearing：1300 - Image 3
Self Aligning Ball Bearing：1300 - Image 4

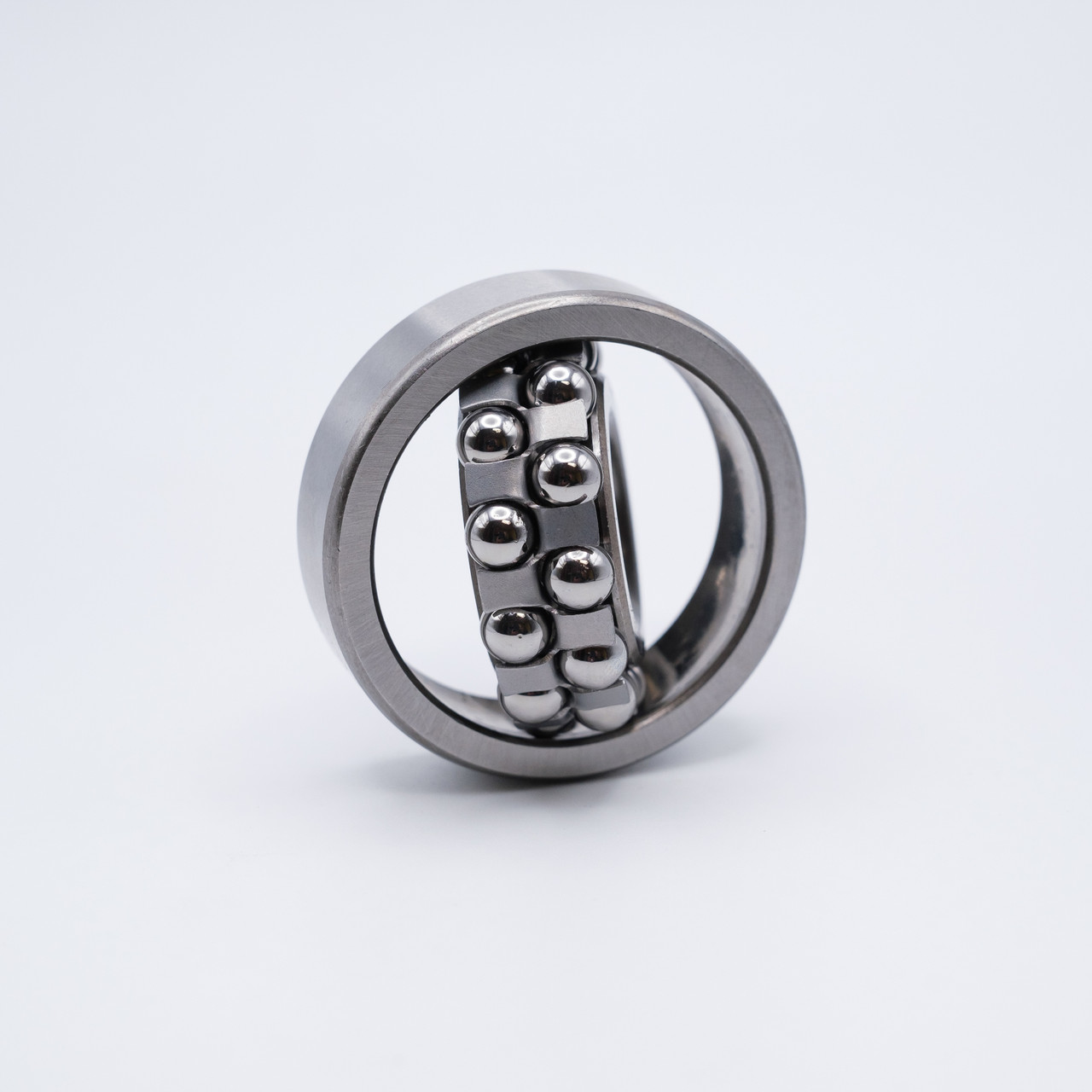

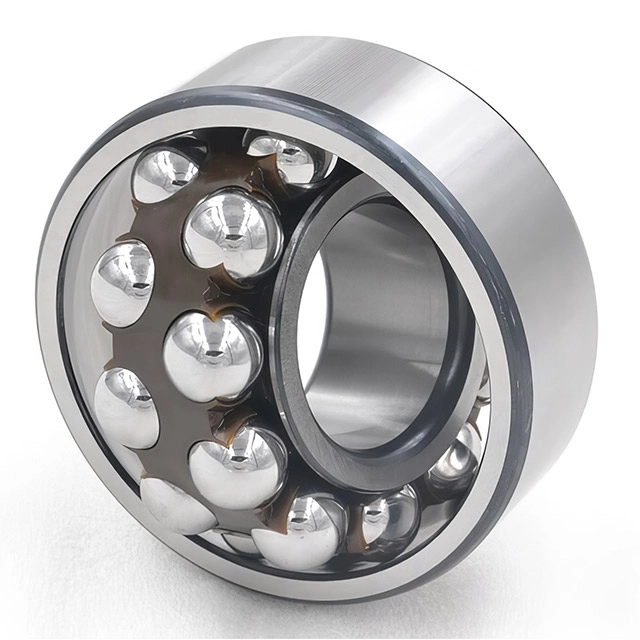

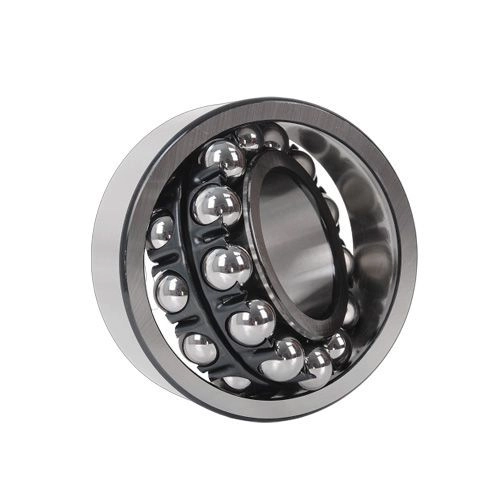

Self Aligning Ball Bearing：1300

Product Name: Self Aligning Ball Bearing
Type: Ball Bearing Brand : FODA
New Model: 1300 Old Model: 1300

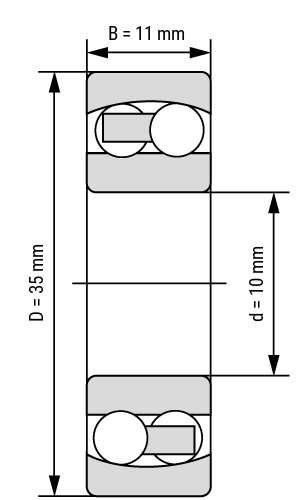

Inner Diameter (mm): 10 Outer Diameter (mm): 35
Thickness (mm): 11 Weight (kg/pc): 0.058
Category:

Description

Basic Parameters

In bearing 1300:

“1”: Indicates the bearing type is a self aligning ball bearing, characterized by a unique design with a spherical outer ring raceway. This allows the bearing to automatically compensate for shaft misalignment (up to 2-3 degrees), making it highly versatile in applications with potential misalignment issues.

“3”: Represents the diameter series code. The “3” series denotes a medium series, meaning the bearing has a moderate cross-sectional size relative to its inner diameter. This design balances load-carrying capacity and space requirements for practical applications.

“00”: Is the inner diameter code. For standard bearings, codes 00-03 correspond to specific inner diameters:

“00” = 10mm, “01” = 12mm, “02” = 15mm, “03” = 17mm.

Tolerance grade: Not explicitly indicated in the model, but typically assumed to be grade 0 (normal precision), suitable for general machinery with standard accuracy needs.

Self Aligning Ball Bearing Features:

Dual-row balls: Provide higher radial load capacity and self-aligning capability.

Spherical outer ring: Enables automatic adjustment to shaft misalignment caused by installation errors or thermal expansion.

Simple structure: Easy to install and maintain, even in environments with misalignment challenges.

The bearing model 1300 signifies a self aligning ball bearing, medium series, 10mm inner diameter, and normal precision level. Its self-aligning design makes it ideal for applications where shaft misalignment is likely, such as agricultural machinery (tractors, threshers), construction equipment (cranes, mixers), conveyor systems, textile looms, and industrial fans. It efficiently handles radial loads and minor axial forces while compensating for misalignment, ensuring stable operation and extended service life in challenging mechanical setups.

Product Application

The Self Aligning Ball Bearing: 1300 is a versatile and highly sought-after component, widely used in machinery grappling with shaft misalignment challenges. Its design, characterized by two rows of balls and a spherical outer ring raceway, empowers it to handle angular misalignments of up to 2.5 degrees, adeptly countering issues arising from installation errors, shaft deflection, or thermal expansion.
In the agricultural sector, tractors navigating uneven fields endure constant shaft stress due to terrain irregularities. The 1300 bearing minimizes vibration and wear, enhancing the tractor’s power transmission efficiency by up to 15%, which extends the machinery’s lifespan and reduces maintenance costs. In construction, cranes frequently face misalignment caused by heavy loads and wind forces. The self-aligning feature of the 1300 bearing ensures the slewing mechanism operates smoothly, improving lifting precision and safety.
Conveyor systems, integral to numerous industries, rely on this bearing to maintain seamless operation. By preventing belt slippage and misalignment, it reduces production line disruptions. In paper-making machines, the 1300 bearing guarantees consistent roller rotation, crucial for producing high-quality paper. In woodworking, it enables precise shaping of uneven workpieces. In food processing, its corrosion-resistant properties and self-aligning ability meet strict hygiene standards while ensuring reliable operation.
In essence, the 1300 Self Aligning Ball Bearing stands as an essential solution across diverse industries, delivering reliable performance and operational efficiency.



Product List

Bearing No. Dimensions (mm) Basic Load Rating (N)      Weight (kg)
ISO GOST d D B Dyn. C Stat. C0
1300 1300 10 35 11 7220 1620 0.058
1301 1301 12 37 12 9420 2120 0.067
1302 1302 15 42 13 9500 2280 0.094
1303 1303 17 47 14 12500 3180 0.13
1304 1304 20 52 15 12500 3380 0.165
1305 1305 25 62 17 17800 5050 0.255
1306 1306 30 72 19 21500 6280 0.385
1307 1307 35 80 21 25000 7950 0.51
1308 1308 40 90 23 29500 9500 0.715
1309 1309 45 100 25 38000 12800 0.955
1310 1310 50 110 27 43200 14200 1.2
1311 1311 55 120 29 51500 18200 1.6
1312 1312 60 130 31 57200 21200 1.95
1313 1313 65 140 33 61800 22800 2.42
1314 1314 70 150 35 74500 27500 3
1315 1315 75 160 37 79000 29800 3.55
1316 1316 80 170 39 86700 31400 4.17
1317 1317 85 180 41 97800 37800 5
1318 1318 90 190 43 115000 42000 5.8
1319 1319 95 200 45 132000 50800 6.7
1320 1320 100 215 47 141000 55000 8.3
