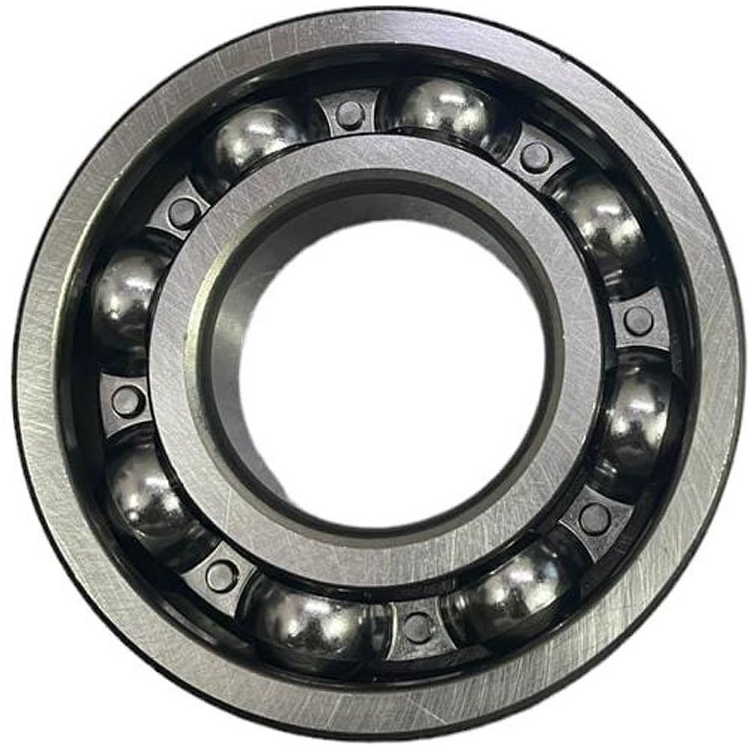

Stainless Steel Bearings: SS6005

Description

Basic Parameters

Here are the basic parameters for the SS6005 Stainless Steel Bearing: This single-row deep groove ball bearing has an inner diameter of 25 mm, an outer diameter of 47 mm, and a width of 12 mm. It is constructed entirely from stainless steel (AISI 440C or equivalent), offering excellent corrosion resistance and durability in harsh environments. The bearing features a cage-guided design with a radial internal clearance of C3, optimized for high-speed applications up to 18,000 RPM. It has a dynamic load rating of 11.2 kN and a static load rating of 7.15 kN, making it suitable for moderate load applications. The SS6005 is grease-lubricated for maintenance-free operation and is commonly used in food processing equipment, marine applications, and medical devices where corrosion resistance is critical.

Product Application

Food & Beverage Processing:

Used in conveyor systems, mixing equipment, and packaging machinery where exposure to water, cleaning agents, and food products requires corrosion-resistant materials.Complies with hygienic standards (e.g., FDA, EC 1935/2004) for direct or indirect contact with food.Resistant to rust and degradation from acidic or alkaline substances.

Marine & Underwater Systems:

Ideal for boat trailers, winches, water pumps, and marine navigation equipment exposed to saltwater.Withstands prolonged immersion and harsh weather conditions, reducing maintenance downtime.Prevents seizing and corrosion caused by saltwater exposure.

Medical & Laboratory Equipment:

Used in surgical tools, diagnostic devices, and analytical instruments requiring high precision and cleanliness.Resistant to sterilization processes (e.g., autoclaving, chemical disinfectants).Low friction design ensures smooth operation in sensitive equipment.

Chemical & Pharmaceutical Industries:

Suitable for pumps, agitators, and processing machinery handling corrosive chemicals or solvents.Maintains integrity in acidic or alkaline environments, extending service life.Prevents contamination from bearing degradation.

Automotive & Transportation:

Applied in wheel hubs, electric motors, and engine components in humid or corrosive environments.Resistant to road salts, moisture, and automotive fluids.High-speed capability (up to 18,000 RPM) supports efficient operation in electric vehicles and conventional engines.

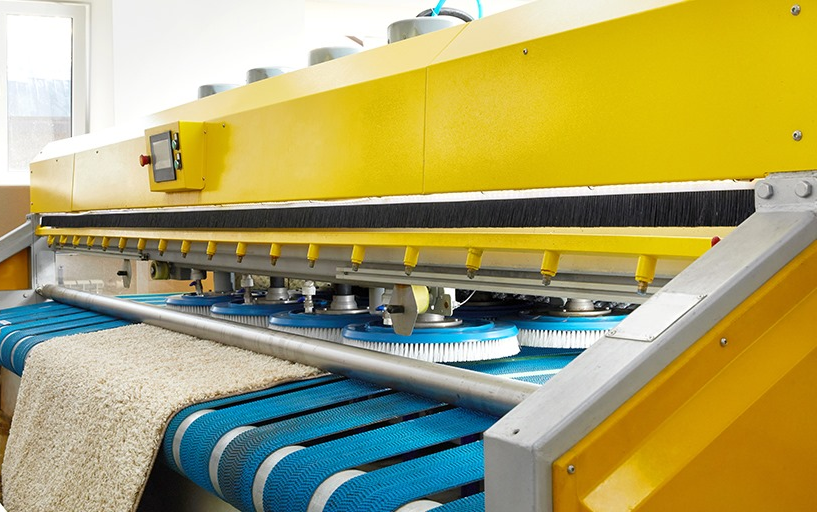

Textile & Printing Machinery:

Used in dyeing machines, spinning equipment, and printing presses exposed to water-based solutions or chemicals.Prevents rust-induced damage to moving parts, ensuring consistent performance.Low noise and vibration characteristics improve product quality in textile weaving and printing.

Aerospace & Defense:

Employed in aircraft components, missile systems, and navigation equipment requiring lightweight, corrosion-resistant materials.Meets stringent military and aerospace standards for reliability and performance.Maintains functionality in extreme temperatures and high-stress environments.
