Super Precision Ball Bearings

Description

Basic Parameters

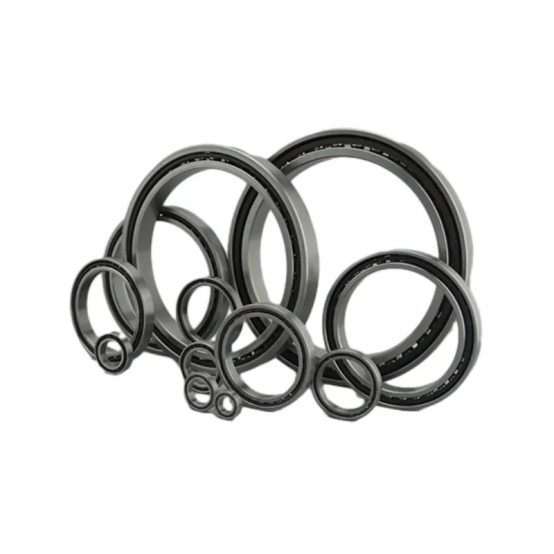

Super precision ball bearings are high-performance components designed to meet the demanding requirements of modern industries where extreme accuracy, high speed, and long service life are essential. Commonly used in CNC spindles, high-frequency grinding machines, robotics, medical equipment, and aerospace systems, these bearings offer exceptional rotational accuracy and repeatability, making them indispensable in precision-critical environments.

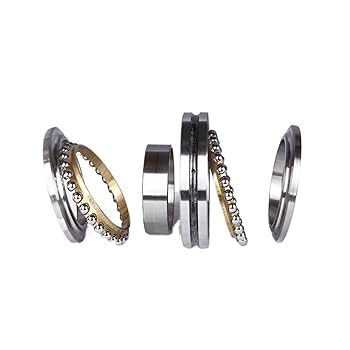

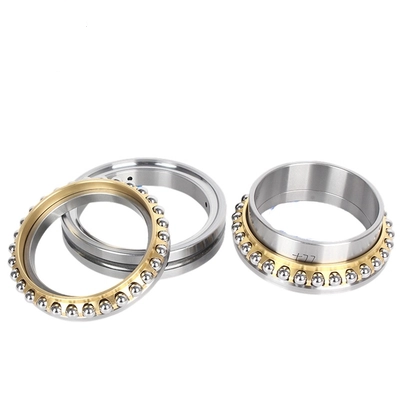

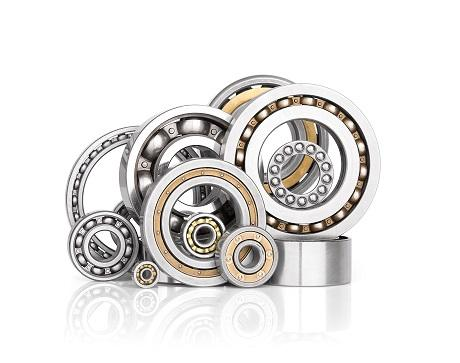

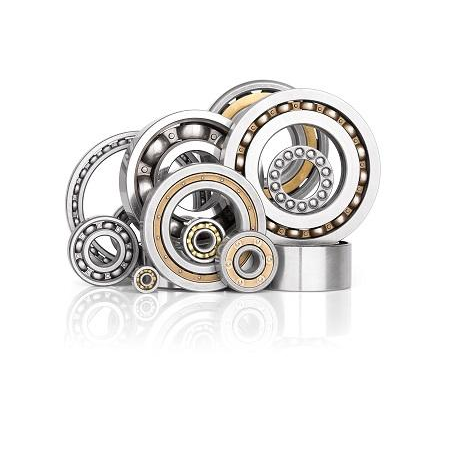

Available in a range of configurations—including angular contact, deep groove, and thrust types—super precision bearings are manufactured to tight tolerance classes such as ABEC-7/9 or ISO P4/P2. They are offered in various sizes, typically with bore diameters from 5 mm up to 120 mm, and are designed with optimized contact angles (15°, 25°, or 30°) to balance axial and radial loads effectively.

The choice of materials also contributes to their superior performance. Rolling elements are made from high-grade steel or silicon nitride ceramic, offering reduced mass and thermal expansion. Cage materials such as phenolic resin, polyamide, or brass are selected for their strength and low friction properties. These design choices allow the bearings to achieve ultra-high speeds—up to 100,000 rpm—while minimizing heat, noise, and vibration.

Additionally, super precision ball bearings are compatible with various lubrication methods, including grease, oil mist, and air-oil systems, and can be customized with special preload settings and clearances to suit specific machine dynamics.

In summary, super precision ball bearings are more than just mechanical parts—they are engineered solutions that enhance productivity, ensure repeatable performance, and support the next generation of high-precision manufacturing and automation.

Product Application

1. CNC Machine Tools and Spindles

Super precision ball bearings are at the heart of high-speed and high-precision CNC machines. In applications like milling, turning, grinding, and drilling, spindle systems require extreme accuracy, minimal runout, and thermal stability. These bearings provide the rigidity and low vibration needed to maintain surface finish quality and dimensional accuracy, even at speeds exceeding 60,000 rpm.

2. Robotics and Automation

In the fast-evolving fields of industrial automation and robotics, super precision bearings play a crucial role. They enable repeatable and highly responsive motion control. Their low-friction design and high stiffness are essential for robotic joints, actuators, and linear motion systems. In these applications, micrometer-level positioning accuracy is critical.

3. Aerospace and Defense

Aircraft instruments, navigation systems, gyroscopes, and flight control mechanisms rely on ultra-high precision components. Super precision ball bearings are used in these systems for their excellent performance under dynamic loads. They offer strong resistance to extreme temperatures. They can also function reliably in vacuum or low-lubrication environments.

4. Medical and Dental Equipment

High-speed dental handpieces, surgical drills, and imaging devices require low noise, minimal heat generation, and exceptional reliability. Moreover, ceramic or hybrid super precision bearings not only meet these requirements but also extend equipment life while maintaining consistent performance even during continuous operation.

5. Semiconductor Manufacturing Equipment

In wafer handling systems, lithography machines, and vacuum chambers, any deviation in alignment can result in costly defects. Super precision bearings ensure ultra-smooth and precise motion control in cleanroom environments, supporting the sub-micron tolerances required by today’s semiconductor processes.

6. Measuring and Inspection Instruments

Coordinate Measuring Machines (CMMs), laser scanners, and other metrology tools depend on bearing systems with virtually zero vibration and high stability. Super precision bearings maintain the accuracy and sensitivity of these instruments, enabling precise measurement and quality control in critical industries.
