Super Precision Roller Bearings

Description

Basic Parameters

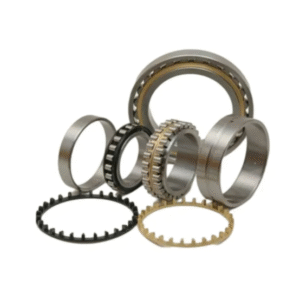

Super precision roller bearings are designed to deliver exceptional performance in applications requiring high rigidity, load capacity, and rotational accuracy. Available in cylindrical, tapered, spherical, and crossed roller designs, these bearings are manufactured to strict tolerance classes such as ISO P4 and P2, ensuring minimal runout and consistent performance at high speeds. They typically range in bore diameters from 10 mm to 200 mm and can handle both heavy radial and axial loads, depending on the design. Featuring line contact geometry, optimized roller profiles, and precision-matched components, they are capable of operating at speeds up to 40,000 rpm with minimal vibration and heat generation. Cage materials include brass, polyamide, steel, or phenolic resin, and various lubrication methods—grease, oil-air, or oil-mist—can be applied. These bearings are ideal for demanding environments such as grinding spindles, aerospace systems, robotics, and high-precision gearboxes, where stability, efficiency, and long service life are critical.

Product Application

1. CNC Machine Tools and High-Speed Spindles
Super precision roller bearings play a key role in the performance and reliability of high-speed CNC machinery, including grinding, milling, and turning centers. In these systems, the bearings are used in the main spindle to provide high radial stiffness, minimal runout, and excellent thermal stability. This enables precise cutting operations, superior surface finishes, and tight dimensional tolerances even during prolonged high-speed rotation. Their ability to support both radial and axial loads while maintaining low friction contributes to reduced vibration, longer tool life, and higher production accuracy.

2. Aerospace and Aviation Systems
In the aerospace industry, where reliability, weight optimization, and resistance to extreme conditions are vital, super precision roller bearings are used in jet engines, auxiliary power units (APUs), helicopter transmissions, and flight control actuators. These applications demand bearings that can perform under rapid acceleration, high centrifugal forces, fluctuating loads, and wide temperature ranges. Super precision bearings meet these requirements with specialized materials, tight manufacturing tolerances, and advanced lubrication options. Their performance is critical for flight safety and long maintenance intervals.

3. Robotics and Advanced Industrial Automation
Modern robotic systems, such as robotic arms, pick-and-place machines, and autonomous guided vehicles (AGVs), require components that support smooth, repeatable, and high-speed motion. Super precision roller bearings offer low starting torque, high rigidity, and exceptional positioning accuracy—especially in joints and rotational axes where backlash must be minimized. Their compact size-to-load ratio allows for space-saving designs in lightweight or collaborative robots, while their low noise and low heat generation improve energy efficiency and operational stability in continuous-duty environments.

4. Metrology and Precision Measurement Equipment
In high-end measurement systems like Coordinate Measuring Machines (CMMs), laser trackers, optical encoders, and ultra-precision rotary tables, even the slightest vibration or thermal drift can affect accuracy. Super precision roller bearings provide ultra-smooth motion with minimal variation in rotational accuracy, making them ideal for supporting rotating elements in such instruments. Their exceptional roundness and surface finish reduce measurement errors and ensure long-term repeatability, making them essential for quality assurance processes in industries like automotive, aerospace, and medical device manufacturing.

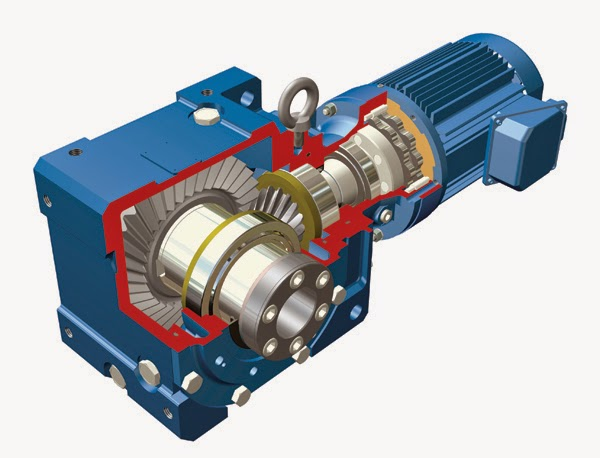

5. High-Performance Electric Motors and Gearboxes
Electric motors and high-precision gearboxes used in medical imaging equipment, machine tools, automation lines, and defense systems rely on super precision roller bearings for their high radial load capacity and superior dynamic performance. These bearings minimize mechanical loss and heat generation, allowing the motor to run more efficiently at high speeds. Their robust internal design and premium materials reduce wear and extend service life, even under constant load changes or challenging environmental conditions such as dust, moisture, or rapid temperature fluctuations.
