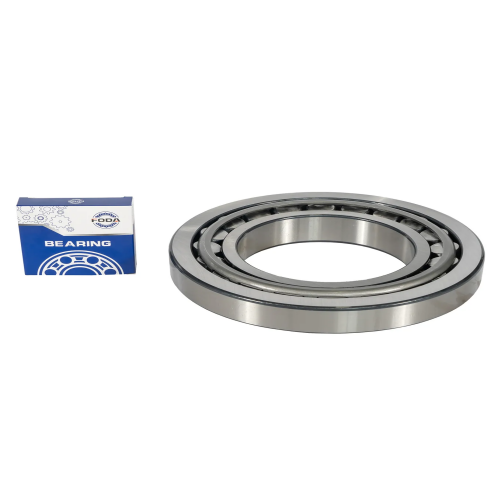

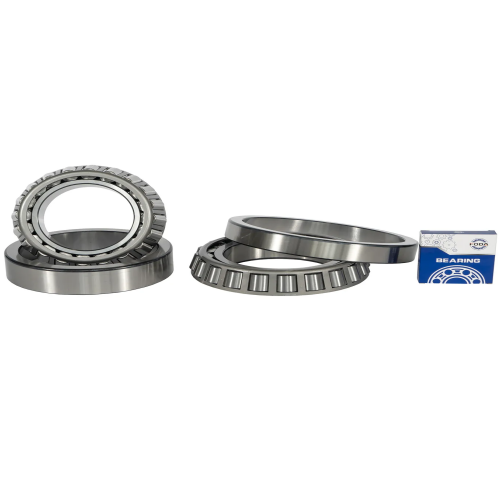

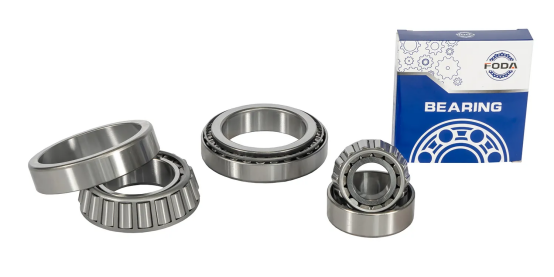

Tapered Roller Bearing:31305

Description

Characteristics

1.Can withstand large radial and axial loads at the same time: due to the special shape of the tapered roller, it has a unique advantage when bearing loads.
2. Adapt to high-speed operation: the reasonably designed tapered roller bearing can work at a higher speed.
3. High precision: can provide high rotation accuracy, reduce vibration and noise.
4. Easy installation and adjustment: the clearance of the bearing can be adjusted to meet different working requirements.

Classification

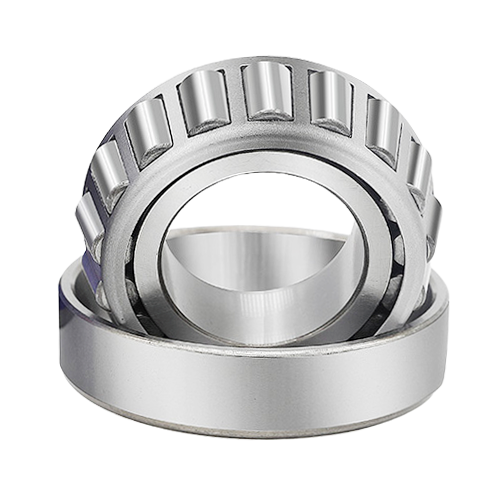

1.Single-row tapered roller bearings: composed of an inner ring, an outer ring and a group of tapered rollers, which can withstand unidirectional radial and axial loads.

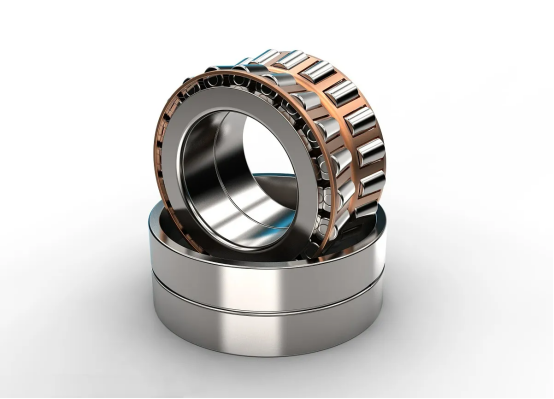

2. Double row tapered roller bearings: there are two rows of tapered roller bearings, which have stronger bearing capacity and can withstand two-way radial and axial loads.
3. Four-row tapered roller bearings: mainly used for special occasions such as heavy machinery, with great carrying capacity.



Basic Parameters

1.Inner diameter, outer diameter and width: determine the mounting size of the bearing.
2. Rated dynamic load and rated static load: characterizes the bearing capacity.
3. Limit speed: indicates the highest speed that the bearing can safely operate under certain conditions.
4. Contact Angle: The Angle between the tapered roller and the raceway affects the bearing capacity and axial force bearing capacity.

The Working Principle

Tapered roller bearings roll between the inner and outer ring raceways when working. When the bearing is stressed, the roller transfers the load to the raceway, and because of the special shape of the roller, the bearing can bear both radial and axial loads. At the same time, by adjusting the bearing clearance, the normal operation of the bearing can be ensured under different working conditions.



Application Fields

1.Automotive field: used in the wheel hub, transmission and other parts of the car.
2. Industrial machinery: such as machine tools, motors, fans, etc.
3. Mining machinery: widely used in crusher, conveyor and other equipment.
4. Agricultural machinery: such as tractors, harvesters, etc.
5. Heavy machinery: such as cranes, excavators, etc.

Product List

Bearing No.		Dimensions (mm)			Basic Load Rating (N)		Weight (kg)
ISO	GOST	d	D	B	Dyn. C	Stat. C0
31305	27305	25	62	17	38000	40000	0.260
31306	27306	30	72	19	47300	50000	0.390
31307	27307	35	80	21	61600	67000	0.520
31308	27308	40	90	23	73700	81500	0.720
31309	27309	45	100	25	91300	102000	0.950
31310	27310	50	110	27	106000	120000	1.200
31311	27311	55	120	29	121000	137000	1.550
31312	27312	60	130	31	145000	166000	1.900
31313	27313	65	140	33	165000	193000	2.350
31314	27314	70	150	35	187000	220000	2.950
31315	27315	75	160	37	209000	245000	3.500
31316	27316	80	170	39	224000	265000	4.050
31317	27317	85	180	41	242000	285000	4.600
31318	27318	90	190	43	264000	315000	5.900
31319	27319	95	200	45	292000	355000	6.950
31320	27320	100	215	51	374000	465000	8.600
31321	27321	105	225	53	402000	500000	9.650
31322	27322	110	240	57	457000	585000	12.000
31324	27324	120	260	62	539000	695000	15.500
31326	27326	130	280	66	605000	780000	18.500
31328	27328	140	300	70	693000	900000	24.500
31330	27330	150	320	75	781000	1020000	29.500
