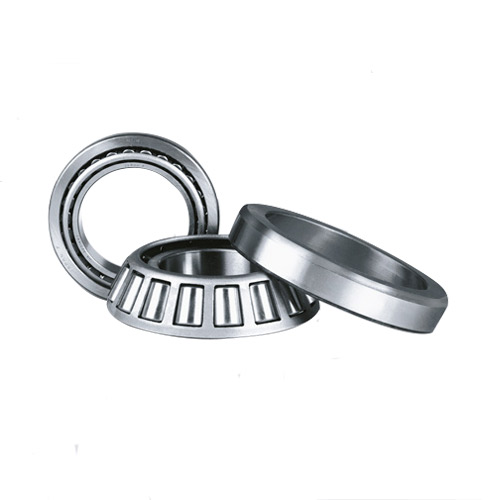

Tapered Roller Bearing:32922

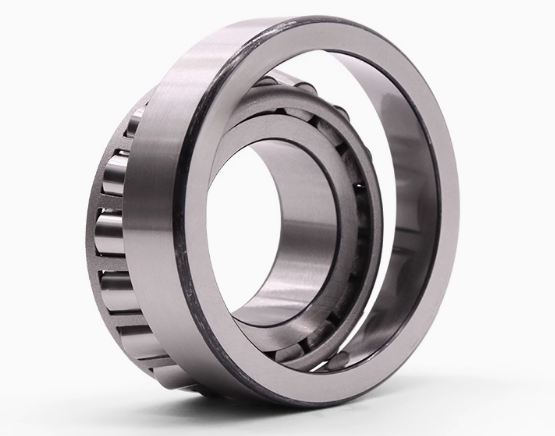

Tapered Roller Bearing:32922 - Image 2

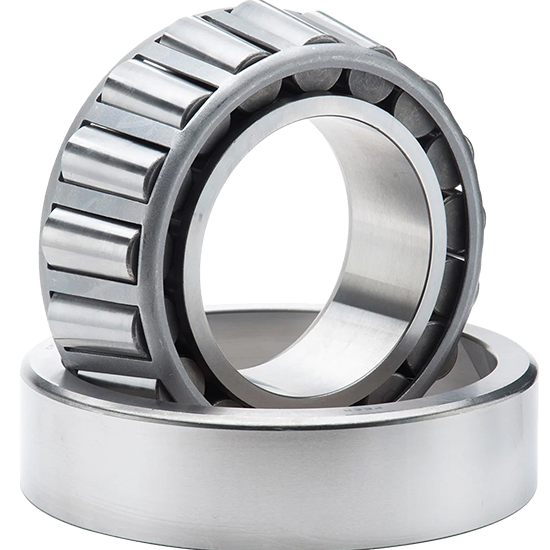

Tapered Roller Bearing:32922 - Image 3

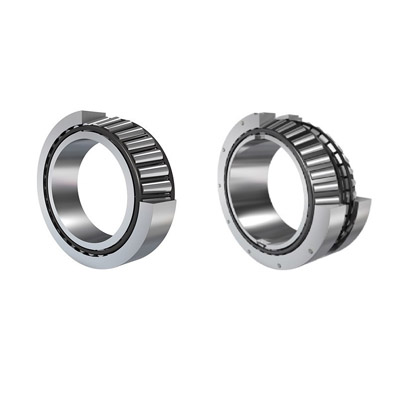

Tapered Roller Bearing:32922 - Image 4

Tapered Roller Bearing:32922

Product Name: Tapered Roller Bearing: 32922
Type: Roller Bearing Brand : FODA
New Model: 32922 Old Model: 2007922

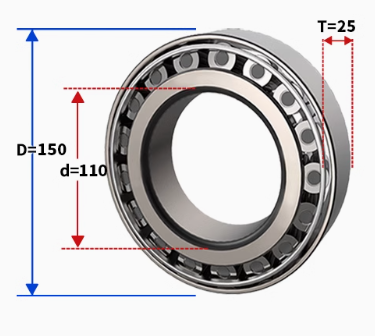

Inner Diameter (mm): 110 Outer Diameter (mm): 150
Thickness (mm): 25 Weight (kg/pc): 1.25
Category:

Description

Basic Parameters

Prefix “3”: Indicates the bearing type is a tapered roller bearing (standard prefix for this category in bearing coding systems).

“29”: Represents the size series, which defines the bearing’s aspect ratio (e.g., width and diameter proportions). For tapered roller bearings, different series correspond to specific design configurations (e.g., single-row, double-row).

“22”: Denotes the inner diameter through the standard coding rule.

Features and Performance

Combined Load Capacity

Designed to withstand both radial and axial loads simultaneously (unlike unidirectional thrust bearings). Axial load capacity is directionally dependent (single-row design resists axial loads in one direction; double-row designs can handle bidirectional loads, but 32922 is typically single-row).High radial rigidity makes it suitable for applications with heavy radial loads, such as gearboxes or axle systems.

Tapered Geometry

The tapered shape of the rollers and raceways allows for line contact between rolling elements and races, distributing loads over a larger area compared to point contact in ball bearings. This enhances load-carrying capacity and resistance to deformation under heavy loads.

Adjustable Clearance

Clearance (axial and radial) can be adjusted during installation by controlling the relative position of the inner and outer rings. This is critical for optimizing performance in precision applications (e.g., machine tool spindles).

Detachable Structure

The inner ring (cone) and outer ring (cup) are separable, simplifying installation and maintenance. This feature is particularly useful in assemblies where one component must be mounted before the other (e.g., shafts with shoulders).

High-Speed Limitations

Compared to ball bearings, tapered roller bearings have lower maximum rotational speeds due to increased sliding friction between rollers and raceways. Suitable for moderate-speed applications (e.g., automotive differentials).

Self-Alignment Limitations

Not self-aligning; requires precise shaft and housing alignment to avoid edge loading, which can cause premature wear or failure.

Materials and Construction

Core components use AISI 52100 high-carbon chromium bearing steel (equivalent to GCr15), heat-treated to 60-62 HRC for high wear/fatigue resistance and dimensional stability under long-term harsh conditions.The design features a tapered inner ring and outer ring for line contact, enhancing load capacity vs. point contact to disperse heavy loads and reduce deformation. A stamped steel/brass cage separates rollers to prevent slippage, ensuring high-speed stability and low friction. Some models have outer ring lubrication channels for better heat dissipation and lubrication, extending lifespan.With strong radial/axial load capability, its adjustable clearance meets installation precision. Ultra-precision machining (Ra ≤ 0.8 μm) ensures low friction/noise. Widely applied in heavy machinery, industrial gearboxes, commercial vehicle axles, and large motors for reliable performance.

Product Application

The FODA 32922 tapered roller bearing is engineered to deliver reliable performance in heavy-load, high-precision industrial environments. Its unique design—featuring adjustable clearance, detachable structure, and robust load capacity—makes it ideal for applications requiring both radial and axial load resistance. Below are its primary application scenarios:
1. Heavy-Duty Machinery

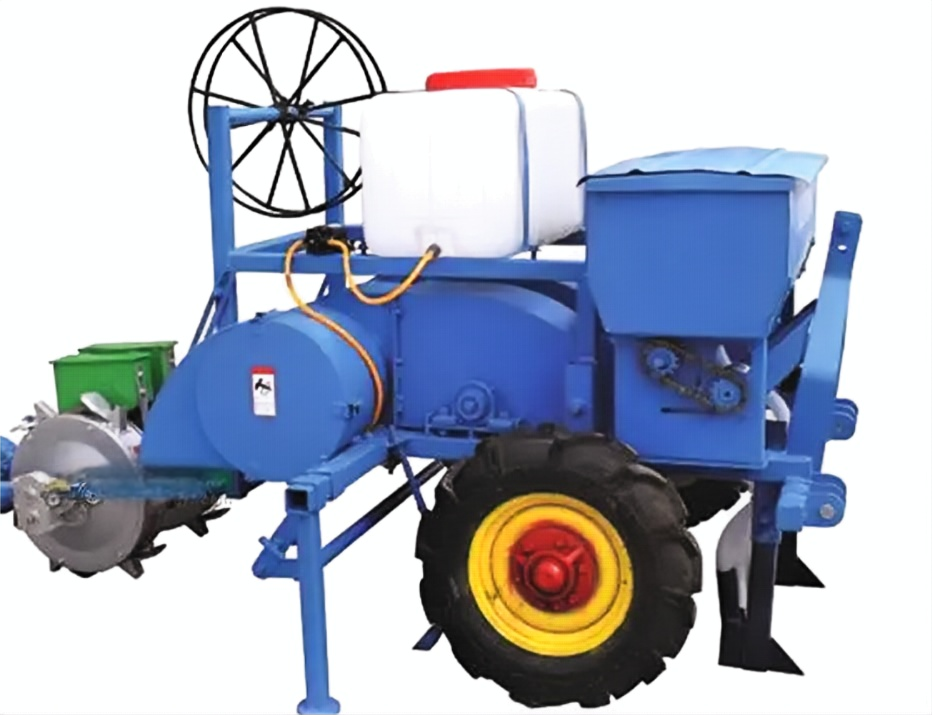

  • Applications: Construction equipment (e.g., excavators, bulldozers), mining machinery, agricultural tractors.
  • Role: Supports transmission systems, gearboxes, and rotating shafts subjected to extreme radial loads (e.g., from heavy-duty gears or conveyor belts).
  • Advantage: High radial rigidity and tapered geometry distribute loads over a larger contact area, minimizing deformation and wear under continuous heavy operation.
2. Industrial Gearboxes & Reducers
  • Applications: Industrial gear reducers, speed reducers, and power transmission systems in manufacturing plants.
  • Role: Maintains precise alignment and load distribution in gear meshing processes, where combined radial and axial forces (e.g., from torque and thrust) are common.
  • Advantage: Adjustable clearance ensures optimal meshing precision, while the detachable inner/outer rings simplify maintenance during gear system overhauls.
3. Commercial Vehicle Axle Systems
  • Applications: Truck axles, bus drivetrains, and trailer wheel hubs.
  • Role: Supports the dynamic loads from vehicle weight and road vibrations, while resisting axial forces from braking or cornering.
  • Advantage: Single-row design with directional axial load capacity efficiently handles one-way thrust (e.g., during acceleration), while AISI 52100 steel construction ensures durability in harsh road conditions.
4. Large Electric Motors & Generators
  • Applications: High-power motors in industrial plants, wind turbines, and power generation equipment.
  • Role: Stabilizes rotating shafts under combined radial loads (from rotor weight) and axial loads (from magnetic forces or belt-driven accessories).
  • Advantage: Ultra-precision machining (Ra ≤ 0.8 μm) reduces friction and noise, while lubrication channels (in select models) enhance heat dissipation for long-term reliable operation.



Conclusion: The 32922 tapered roller bearing excels in demanding environments where robust load capacity, precision adjustment, and ease of maintenance are critical. It is a trusted solution for industries requiring reliable power transmission and rotational stability, from heavy machinery to high-precision equipment.

Product List

 Bearing No. Dimensions (mm) Basic Load Rating (N)      Weight (kg)
ISO GOST d D B Dyn. C Stat. C0
32922 2007922 110 150 25 133000 231000 1.25
32924 2007924 120 165 29 172000 318000 1.82
32926 2007926 130 180 32 208000 370000 2.4
32928 2007928 140 190 32 214000 395000 2.55
32930 2007930 150 210 38 285000 495000 3.9
32932 2007932 160 220 38 295000 530000 4.13
32934 2007934 170 230 38 295000 560000 4.5
32936 2007936 180 250 45 281600 588000 6.65
32938 2007938 190 260 45 286400 612000 7
32940 2007940 200 280 51 378400 760000 9.5
32944 2007944 220 300 51 470000 864000 10.2
32948 2007948 240 320 51 510000 978000 11
32952 2007952 260 360 63.5 750000 1225000 18.7
32956 2007956 280 380 63.5 773000 1328000 20
32960 2007960 300 420 76 840000 1792000 32
