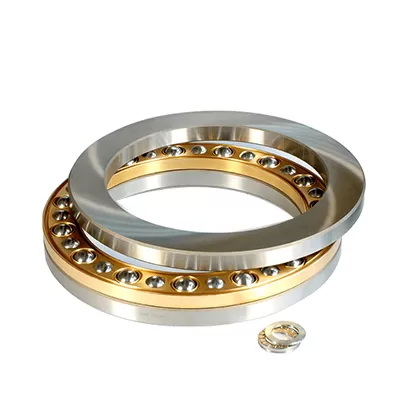

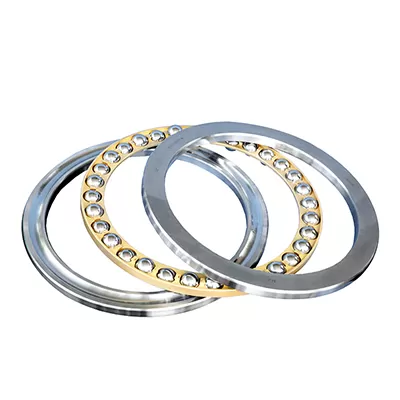

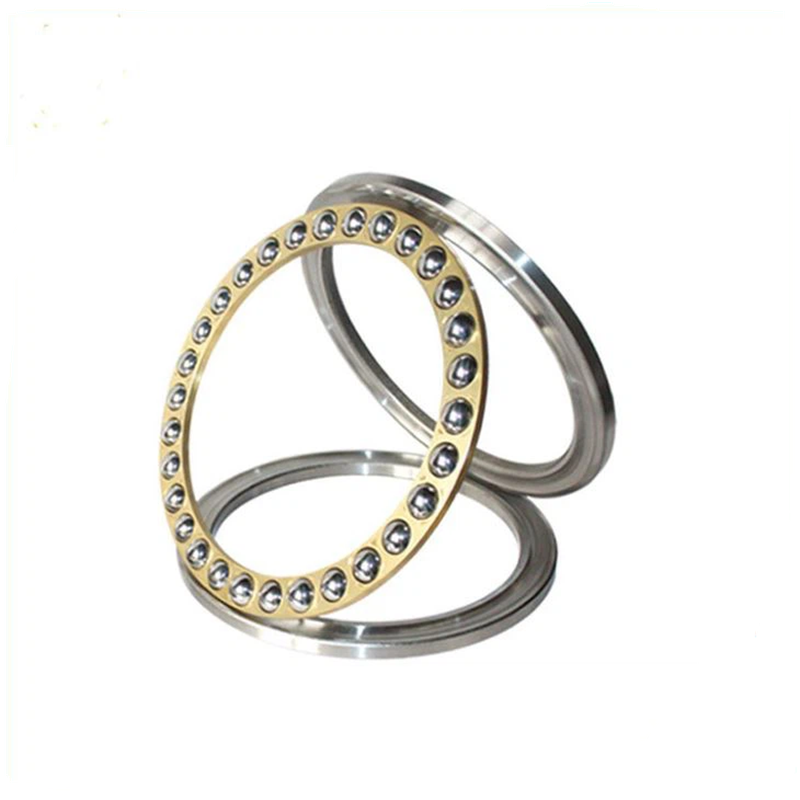

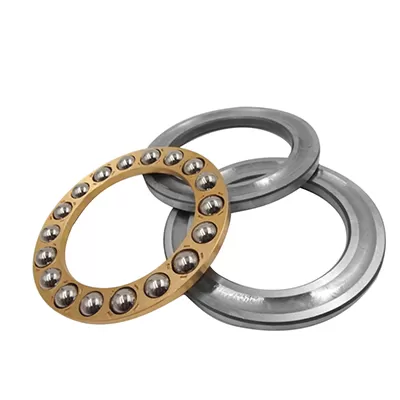

Thrust Ball Bearing:51405 M

Product Name: Thrust Ball Bearing:51405M
Type: Ball Bearing Brand : FODA
New Model: 51405M Old Model: 8405
Inner Diameter (mm): 25 Outer Diameter (mm): 60
Thickness (mm): 24 Weight (kg/pc): 0.34

Description

Basic Parameters

The basic parameters of Thrust Ball Bearing: 51405M include an inner diameter of 25 mm, an outer diameter of 60 mm, and a height of 24 mm, defining its compact axial-mounting dimensions. As a single-row thrust ball bearing with a 90° contact angle, it is specifically designed to handle heavy axial loads in one direction while having limited capacity for radial loads. The bearing is rated with a dynamic load capacity (Cr) of approximately 38,500 N and a static load capacity (Cor) of around 78,500 N, indicating its performance under continuous and instantaneous axial loading conditions, though exact values may vary by manufacturer. It features a limit speed of up to 3,000 RPM (dependent on lubrication type and operating temperature), making it suitable for moderate-speed applications where precise axial positioning and high thrust resistance are required. These parameters collectively ensure the bearing’s effectiveness in applications such as machine tool spindles, automotive transmissions, and industrial pumps, where primary load direction is axial and space constraints demand a slim, lightweight design.





Product Application

The Thrust Ball Bearing: 51405M is engineered for applications requiring efficient management of heavy unidirectional axial loads while maintaining compact dimensions and precise axial positioning. Its single-row design with a 90° contact angle specializes in handling thrust forces along the shaft axis, making it ideal for machinery where radial loads are minimal or secondary.



In machine tool spindles, the bearing ensures stable axial alignment of rotating components, critical for maintaining precision in lathes, milling machines, or grinders where axial thrust from cutting forces must be controlled. In automotive transmissions, it withstands the axial loads generated by gear meshing in manual or automatic gearboxes, supporting smooth shifting and reducing wear on adjacent components. Industrial pumps and compressors benefit from its high static load capacity (Cor: ~78,500 N), efficiently countering axial forces from fluid pressure or mechanical vibrations to prevent shaft displacement and ensure consistent operation.



The bearing’s compact size (25 mm ID, 60 mm OD, 24 mm height) makes it suitable for space-constrained systems, such as electric motors in robotics or precision instruments, where lightweight design and reliable axial support are essential. It also excels in heavy-duty machinery like cranes, conveyors, or construction equipment, where it stabilizes rotating tables or load-bearing platforms under sustained axial thrust. In aerospace auxiliary systems and renewable energy applications (e.g., wind turbine yaw systems), its moderate limit speed (up to 3,000 RPM) and durable construction ensure long service life under cyclic loading conditions.



Designed for one-directional load paths, the 51405Mbearing is typically used in pairs or with radial bearings to manage combined loads, optimizing performance in applications like textile machineryprinting presses, or metalworking equipment. Its ability to handle high instantaneous axial loads (Cor) while maintaining low friction at moderate speeds makes it a cost-effective choice for industries requiring robust axial stability without compromising on space or weight. Overall, this bearing enhances equipment reliability in any system where primary load direction is axial, and a slim, high-thrust-resistant design is critical.

Product List

Bearing No. Dimensions (mm) Basic Load Rating (N)      Weight (kg)
ISO GOST d D B Dyn. C Stat. C0
51405 8405 25 60 24 55300 90000 0.34
51406 8406 30 70 28 72800 125000 0.52
51407 8407 35 80 32 87100 156000 0.76
51408 8408 40 90 36 112000 204000 1.1
51409 8409 45 100 39 130000 240000 1.4
51410 8410 50 110 43 159000 310000 2
51411 8411 55 120 48 178000 360000 2.55
51412 8412 60 130 51 199000 400000 3.1
51413 8413 65 140 56 216000 450000 4
51414 8414 70 150 60 234000 500000 5
51415 8415 75 160 65 251000 560000 6.75
51416 8416 80 170 68 270000 620000 7.95
51417 8417 85 180 72 286000 680000 9.45
51418 8418 90 190 77 307000 750000 11
51420 8420 100 210 85 371000 965000 15
51422 8422 110 230 95 410000 1220000 20
51424 8424 120 250 102 423000 1320000 24.2
51426 8426 130 270 110 520000 1700000 32
51428 8428 140 280 112 520000 1700000 34.5
