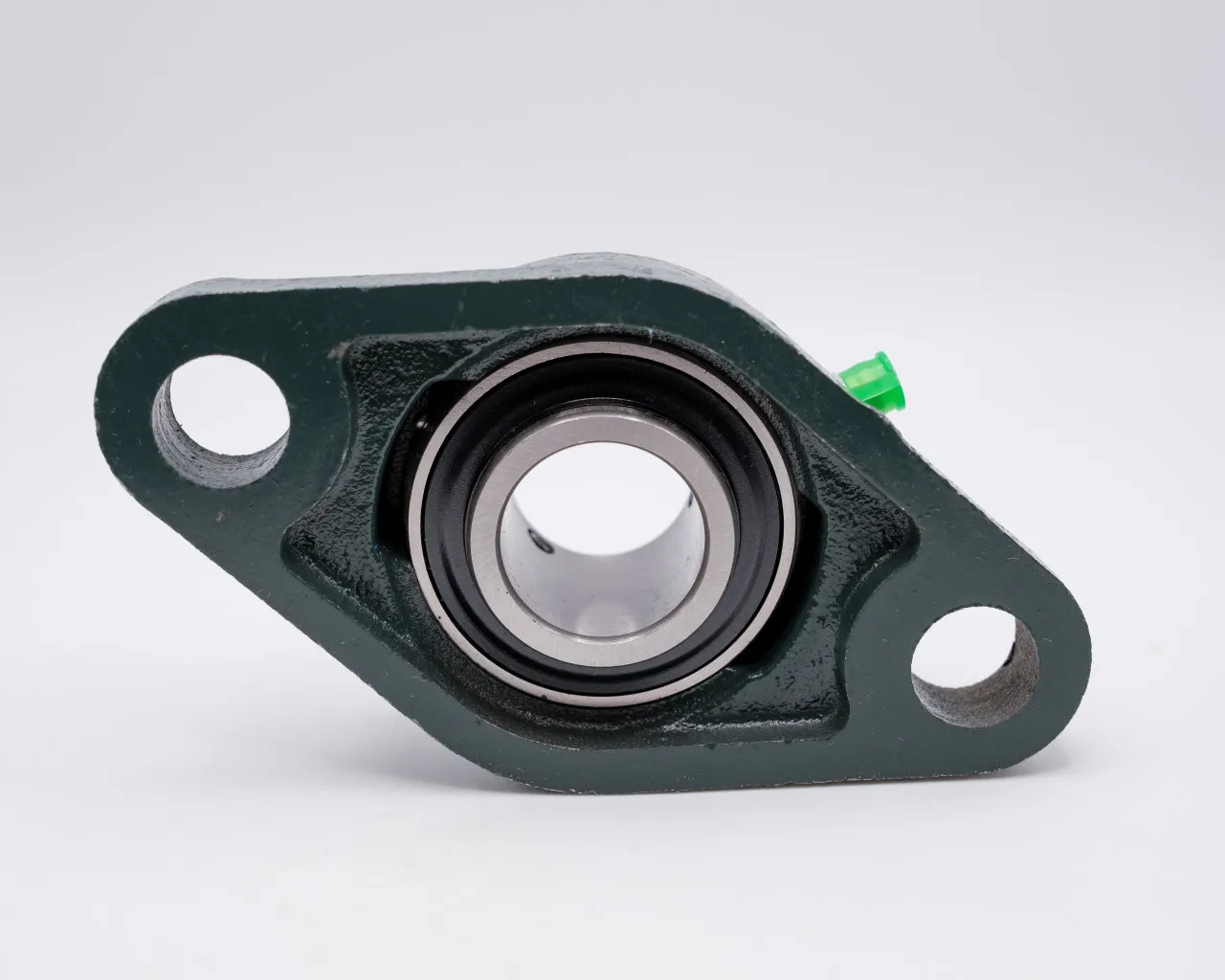

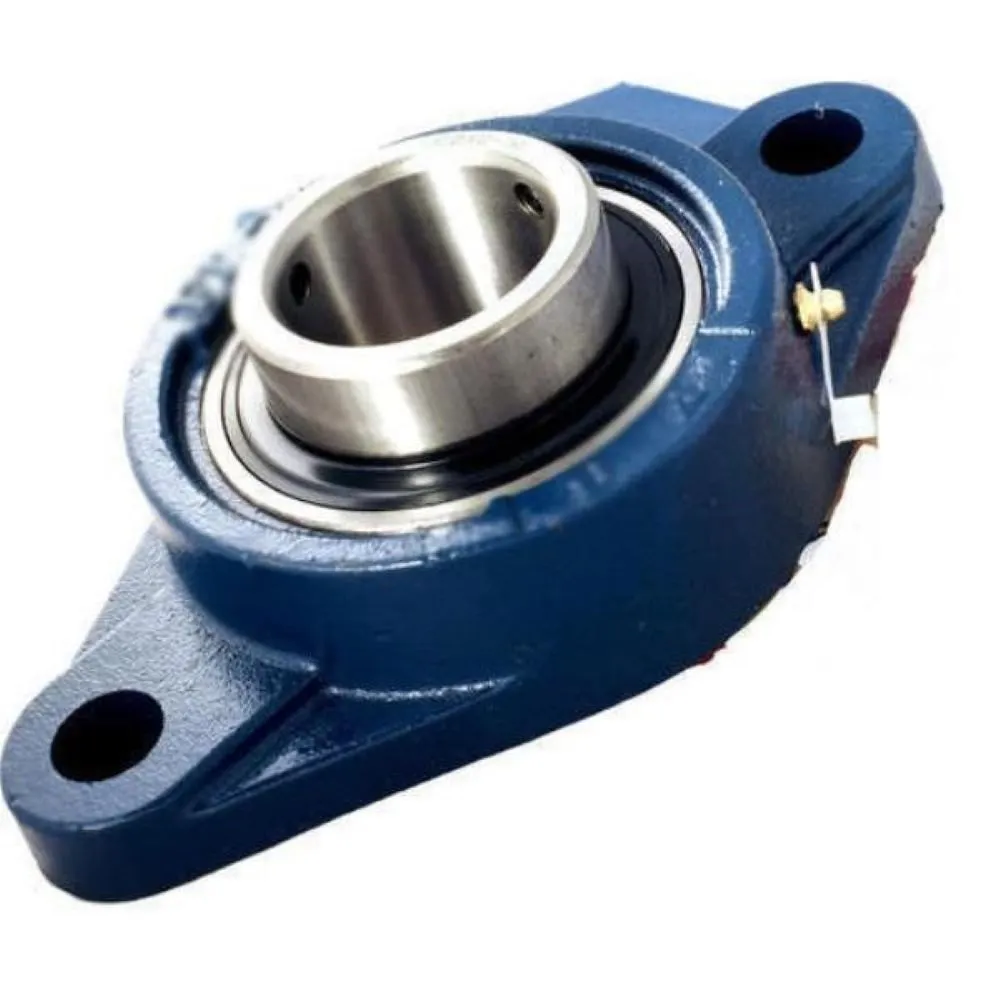

Pillow block & Plummer block：UCFL208

Product Name:	Pillow block & Plummer block
Type:	Agricultural Machinery Bearing	Brand :	FODA
New Model:	UCFL208	Old Model:	UCFL208
Inner Diameter (mm):	12	Outer Diameter (mm):	90
Thickness (mm):	31	Weight (kg/pc):	1.6

Send Email To Us PDF DOWNLOAD

Product Details

Download Catalogue

Basic Parameters

U: Indicates the type of spherical outer race ball bearing.
CF: Represents a bearing structure with a square housing. This structure can provide stable support for the bearing and has convenient installation characteristics.
L: Usually indicates that this bearing has a lubricating oil groove and oil hole, which is convenient for lubricating the bearing to reduce friction and wear and extend the service life of the bearing.
2: It is the series number of the bearing. Different series numbers represent different series of parameters such as the external dimensions and load-carrying capacity of the bearing. The 2 series belongs to a relatively common series.
08: Indicates the inner diameter size of the bearing, and its inner diameter is.
- UCFL208
- UCFL208
- UCFL208

Structural Features

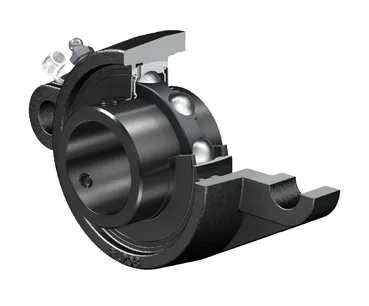

Spherical outside surface design

The outer ring of this bearing adopts a spherical outside surface structure, which gives it the ability of automatic alignment. During the operation of the equipment, even if the shaft has a certain degree of deflection or misalignment, UCFL208 can adapt well, thereby effectively reducing the vibration and noise of the equipment and ensuring the smooth operation of the equipment.

Square base

It is equipped with a sturdy square base. This base type can provide stable and reliable support for the bearing. When installed, the square base can fit well with the installation plane of the equipment, and the installation method is relatively simple, making it convenient for you to operate during the equipment assembly process.

Performance Advantages

Load-bearing capacity

UCFL208 has strong load-bearing capacity and can withstand large radial loads. Whether it is in the conveying equipment on the industrial production line or in the auxiliary transmission parts of some heavy machinery, it can work reliably and ensure the normal operation of the equipment.

Durability

Made of high-quality bearing steel and through precise processing and heat treatment processes, it has high hardness and wear resistance. During long-term operation, it can effectively resist wear, extend service life, and reduce the maintenance frequency and cost of equipment.

Sealing performance

Usually equipped with a good sealing device, which can effectively prevent dust, impurities and moisture from entering the bearing interior. This helps maintain a good state of lubricating grease inside the bearing and further ensures the stability of bearing performance, enabling your equipment to operate reliably in relatively harsh environments.

Product Type

Industrial field

Material handling equipment: Such as belt conveyors, screw conveyors, etc. The UCFL208 bearing can withstand the radial load generated during the conveying process, ensuring the stable operation of the conveying equipment and guaranteeing the efficient transportation of materials.
Fans and ventilation equipment: In the ventilation systems of industrial plants, mines and other places, the shaft support of fans often uses UCFL208 bearings. It can adapt to the vibration and load changes during fan operation and ensure the normal operation of the fan, providing good ventilation conditions for the working environment.
Small processing machinery: For processing equipment such as small lathes and drilling machines, the UCFL208 bearing can provide accurate support for its rotating parts, ensure processing accuracy, and at the same time bear the cutting force and vibration generated during the processing process.

Agricultural field

Irrigation equipment: In the pumps of agricultural irrigation systems, the UCFL208 bearing can work in a humid and dusty environment and withstand the axial and radial forces generated by the rotation of the pump impeller, ensuring the stable water supply of the pump and providing guarantee for the irrigation of crops.
Agricultural harvesting machinery: Such as harvesters, threshers, etc., the UCFL208 bearing can be applied to its transmission device and rotating parts, adapt to the complex field operation environment, and bear the impact load during the harvesting process to ensure the efficient operation of agricultural harvesting machinery.

Construction and engineering machinery field

Concrete mixer: The UCFL208 bearing can be used for the support of the mixing shaft of the mixer, and can withstand the complex load generated by the weight of the material and the mixing force during the mixing process, ensuring the stable rotation of the mixing shaft and making the concrete mix evenly.
Small lifting equipment: Such as small tower cranes and electric hoists on construction sites, the UCFL208 bearing can be used for its rotating and transmission parts, bear the radial and axial loads during the lifting process, and ensure the safe and reliable operation of the lifting equipment.

Other fields

Woodworking machinery: Such as woodworking lathes, sanding machines, etc., the UCFL208 bearing can provide stable support for its rotating tools and transmission parts, bear the cutting force and vibration generated during wood processing, and ensure the processing quality and efficiency of woodworking machinery.

Fitness equipment: In some fitness equipment such as treadmills and spinning bikes, the UCFL208 bearing can be used to support the rotating shaft, bear the load generated by human movement, and ensure the smooth operation and good user experience of fitness equipment.

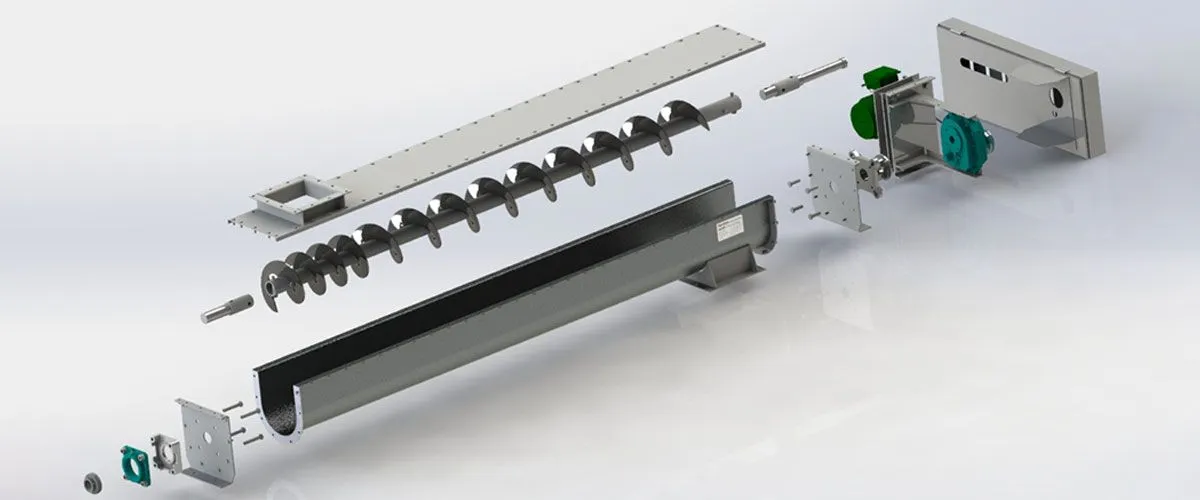

screw conveyor

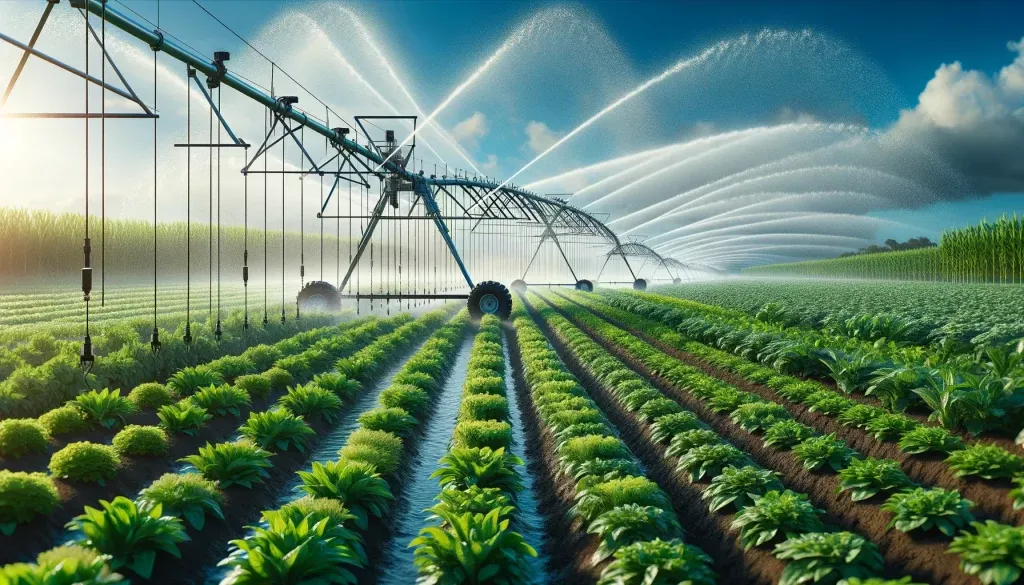

irrigation equipment

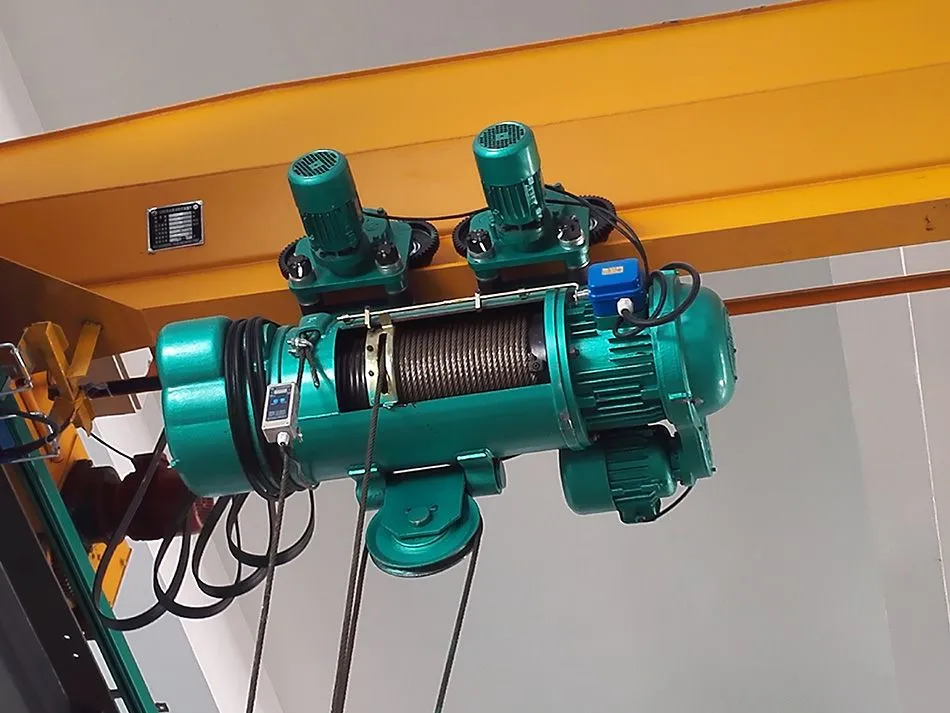

electric hoist

Product List

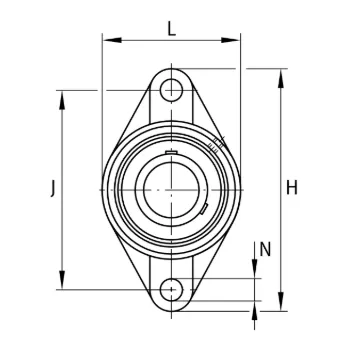

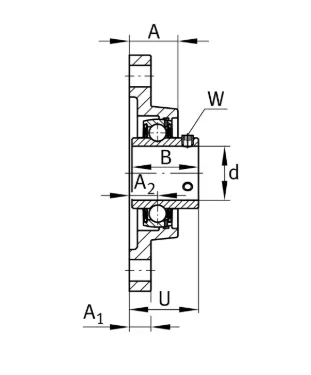

Unit No.	d	B	A	E	K	G	L	S	D	Z	F	bolt size
UCFL201	12	31	113	90	15	11	25,5	12	60	33,3	12,7	M10
UCFL202	15	31	113	90	15	11	25,5	12	60	33,3	12,7	M10
UCFL203	17	31	113	90	15	11	25,5	12	60	33,3	12,7	M10
UCFL204	20	31	113	90	15	11	25,5	12	60	33,3	12,7	M10
UCFL205	25	34,1	130	99	16	13	27	16	68	35,8	14,3	M14
UCFLX05	25	38,1	141	117	18	13	30	12	83	40,2	15,9	M10
UCFL305	25	38	150	113	16	13	29	19	80	39	15	M16
UCFL206	30	38,1	148	117	18	13	31	16	80	40,2	15,9	M14
UCFLX06	30	42,9	156	130	19	15	34	16	95	44,4	17,5	M14
UCFL306	30	43	180	134	18	15	32	23	90	44	17	M20
UCFL207	35	42,9	161	130	19	14	34	16	90	44,4	17,5	M14
UCFLX07	35	49,2	171	144	21	16	38	16	105	51,2	19	M14
UCFL307	35	48	185	141	20	16	36	23	100	49	19	M20
UCFL208	40	49,2	175	144	21	14	36	16	100	51,2	19	M14
UCFLX08	40	49,2	179	148	22	16	40	16	111	52,2	19	M14
UCFL308	40	52	200	158	23	17	40	23	112	56	19	M20
UCFL209	45	49,2	188	148	22	15	38	19	108	52,2	19	M16
UCFLX09	45	51,6	189	157	23	16	40	16	116	55,6	19	M14
UCFL309	45	57	230	177	25	18	44	25	125	60	22	M22
UCFL210	50	51,6	197	157	22	15	40	19	115	54,6	19	M16
UCFLX10	50	55,6	216	184	26	18	44	19	133	59,4	22,2	M16
UCFL310	50	61	240	187	28	19	48	25	140	67	22	M22
UCFL211	55	55,6	224	184	25	18	43	19	130	58,4	22,2	M16
UCFL311	55	66	250	198	30	20	52	25	150	71	25	M22
UCFL212	60	65,1	250	202	29	18	48	23	140	68,7	25,4	M20
UCFL312	60	71	270	212	33	22	56	31	160	78	26	M27
UCFL213	65	65,1	258	210	30	22	50	23	155	69,7	25,4	M20
UCFL313	65	75	295	240	33	25	58	31	175	78	30	M27
UCFL214	70	74,6	265	216	31	22	54	23	160	75,4	30,2	M20
UCFL314	70	78	315	250	36	28	61	35	185	81	33	M20
UCFL215	75	77,8	275	225	34	22	56	23	165	78,5	33,3	M20
UCFL315	75	82	320	260	39	30	66	35	195	89	32	M30
UCFL216	80	82,6	290	233	34	22	58	25	180	83,3	33,3	M22
UCFL316	80	86	355	285	38	32	68	38	210	90	34	M33
UCFL217	85	85,7	305	248	36	24	63	25	190	87,6	34,1	M22
UCFL317	85	96	370	300	44	32	74	38	220	100	40	M33
UCFL218	90	96	320	265	40	24	68	25	205	96,3	39,7	M22
UCFL318	90	96	385	315	44	36	76	38	235	100	40	M33
UCFL319	95	103	405	330	59	40	94	41	250	121	41	M36
