Pillow block & Plummer block：UCT319

Product Name:	Pillow block & Plummer block
Type:	Agricultural Machinery Bearing	Brand :	FODA
New Model:	UCT319	Old Model:
Inner Diameter (mm):		Outer Diameter (mm):
Thickness (mm):		Weight (kg/pc):

Send Email To Us PDF DOWNLOAD

Product Details

Download Catalogue

Basic Parameters

UC: This part represents the basic type of insert bearing with spherical outside surface. The characteristic of insert bearings with spherical outside surface is that the outer ring is spherical. This structure enables the bearing to have the function of automatic alignment, which can compensate for the deflection and misalignment of the shaft within a certain extent, reducing the vibration and noise of the equipment.
T: In this model, "T" usually represents the type of bearing housing. Different letters correspond to different shapes or structures of bearing housings. This is to adapt to various installation environments and equipment requirements.
3: Generally, it is the size series code. The size series includes the size parameter ranges such as the inner diameter, outer diameter, and width of the bearing. The number "3" indicates that this bearing belongs to a specific size series. The size specifications of this series are formulated according to relevant standards. It determines the overall size and some basic geometric characteristics of the bearing, and is different from bearings of other size series in terms of size and load-carrying capacity.
19: It represents the inner diameter size code of the bearing. In this representation method, the inner diameter size is usually obtained through specific calculation rules. For UCT319, its inner diameter size is generally 95mm (inner diameter size = code × 5, that is, 19×5 = 95mm). This is a key parameter when selecting the shaft diameter that the bearing fits.

Structural Features

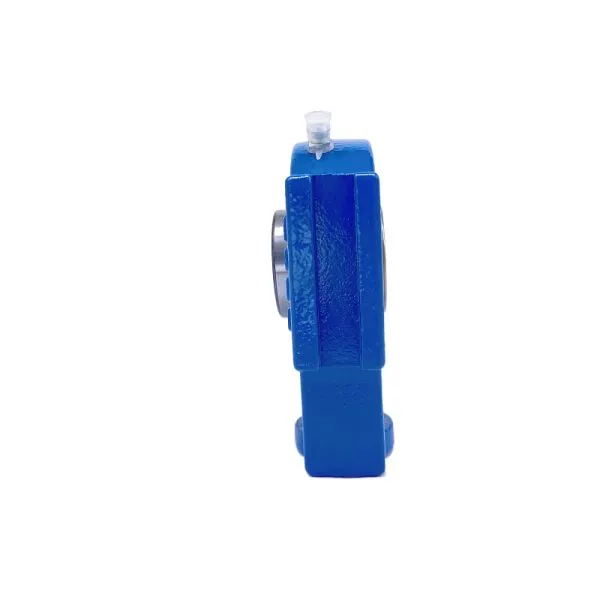

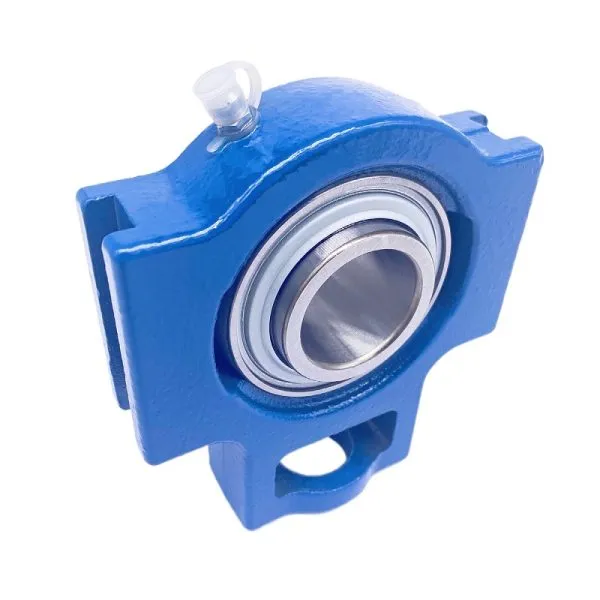

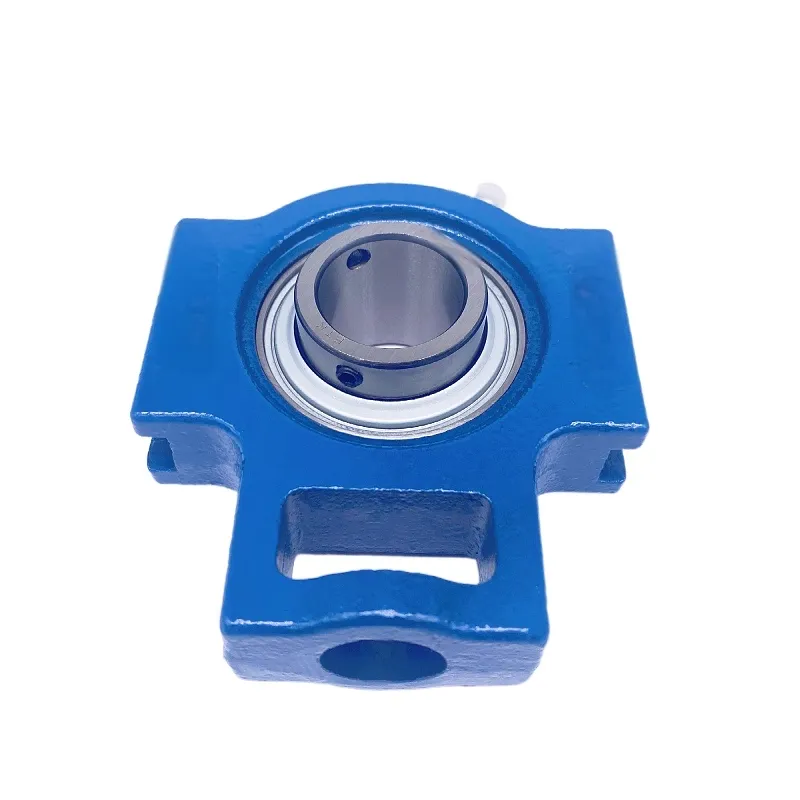

Spherical ball bearing body

The core part of UCT319 is the spherical ball bearing. The outer ring of this kind of bearing is an outer spherical surface. This unique design endows it with excellent self-aligning ability. During the operation of the equipment, even if the shaft has slight deflection or misalignment, the spherical ball bearing can automatically adapt to this change, thereby effectively reducing the vibration and noise level of the equipment. This is an extremely important characteristic for equipment that requires high-precision operation or is sensitive to vibration.

Mounted design

This bearing is equipped with a specific seat type, which provides stable and firm support for the bearing. The design of the seat has been carefully considered and can be well matched with the installation plane of various equipment to ensure the stable position of the bearing after installation. Moreover, this mounted design greatly simplifies the installation process. You can install UCT319 on the equipment relatively easily without complex installation tools or professional installation technology, which undoubtedly saves you time and labor costs.

Other detailed designs

In the connection part between the bearing and the seat, as well as in the internal structure, there are some fine designs. For example, a good sealing structure can effectively prevent harmful substances such as dust, impurities and moisture from entering the inside of the bearing. This is crucial for prolonging the service life of the bearing and maintaining the stability of its performance. At the same time, the fit between the rolling elements and the raceway inside is also very precise, ensuring the smoothness and high efficiency of the bearing during operation.

Performance Advantages

Strong carrying capacity

The UCT319 bearing has excellent carrying capacity. Whether it is radial load or axial load, it can effectively withstand. In some equipment that needs to bear heavy loads, such as industrial conveying equipment, auxiliary transmission parts of heavy machinery, etc., UCT319 can work reliably and provide solid guarantee for the normal operation of the equipment.

High durability and long service life

Made of high-quality bearing steel material and through strict processing technology and heat treatment procedures. This makes the UCT319 bearing have high hardness and good wear resistance. During long-term use, it can resist various forms of wear and effectively extend the service life of the bearing. This not only reduces the number of equipment maintenance, reduces maintenance costs, but also can improve the overall operating efficiency of the equipment.

Adapt to various working conditions

Due to its good sealing performance and robust structural design, the UCT319 bearing can adapt to many different working environments. Whether in a humid environment, a dusty workshop, or a chemical environment with certain corrosiveness, it can maintain stable performance and work normally. This adaptability makes it widely applicable in various industrial fields.

Product Application

Industrial transmission equipment field

In various types of industrial transmission equipment such as belt conveyors and chain conveyors, the UCT319 bearing is often used to support the shaft of the transmission drum. In these devices, the bearing needs to bear various complex loads such as the weight of materials, the tension of the conveyor belt, and the vibration generated during the operation of the equipment. With its strong load-bearing capacity and good adaptability, the UCT319 can ensure the stable operation of transmission equipment and guarantee the efficient and accurate transportation of materials.

Heavy machinery auxiliary transmission part

In some heavy machinery, such as large cranes, excavators, etc., the UCT319 bearing also plays an important role in the auxiliary transmission parts. These parts usually need to bear huge forces and complex movements. The UCT319 can provide stable support to ensure smooth power transmission of the machinery and improve the working efficiency and reliability of the machinery.

Other industrial equipment

In industrial fans, pump equipment, simple machine tools and other equipment, the UCT319 bearing can also be well applied. For example, in industrial fans, it can support the fan shaft to ensure the stability of the fan when rotating at high speed; in pump equipment, it can bear the axial and radial forces generated by the rotation of the pump impeller to ensure the normal pumping or liquid transportation function of the pump.

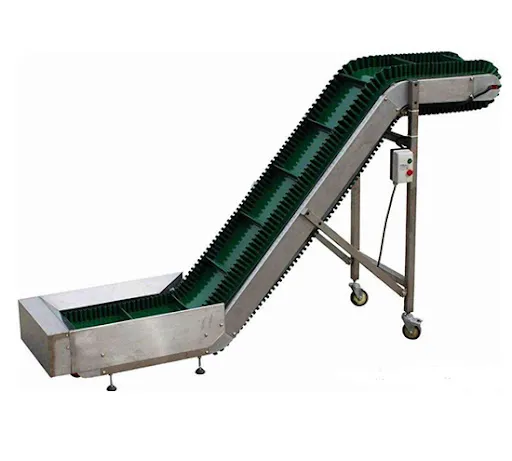

- belt conveyor
- heavy lift

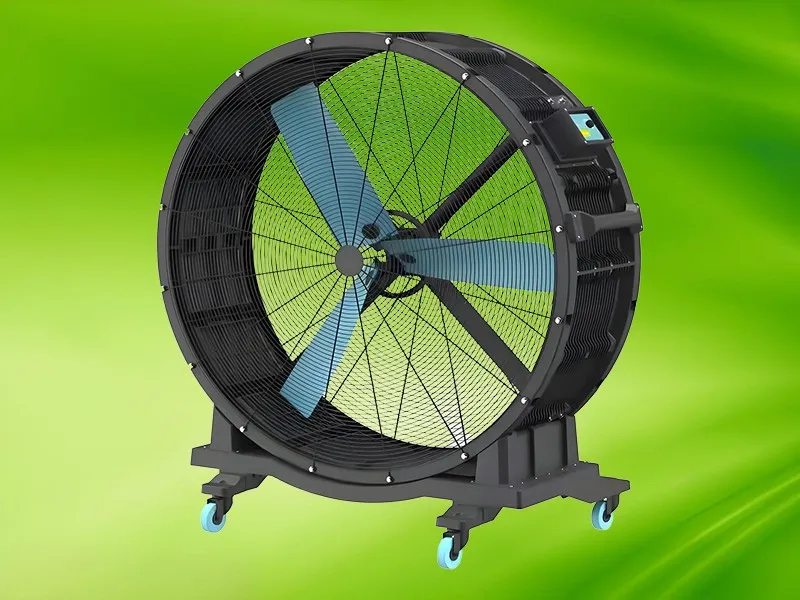

- industrial fan

Product List

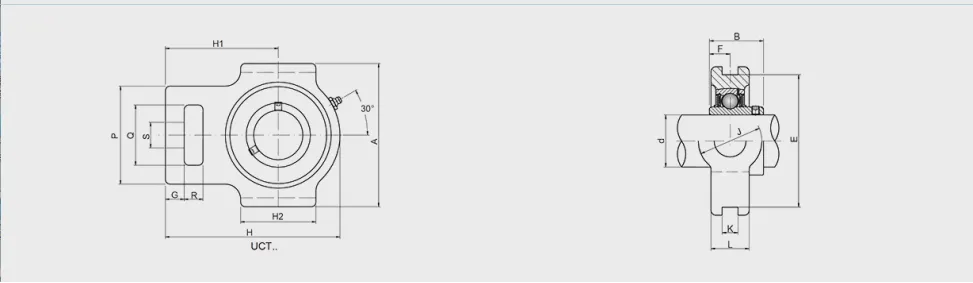

Unit No.	d	R	G	P	Q	S	H2	K	E	A	H	J	L	H1	B	F
UCT201	12	16	10	51	32	19	51	12	76	89	94	32	24	61	31	12,7
UCT202	15	16	10	51	32	19	51	12	76	89	94	32	24	61	31	12,7
UCT203	17	16	10	51	32	19	51	12	76	89	94	32	24	61	31	12,7
UCT204	20	16	10	51	32	19	51	12	76	89	94	32	24	61	31	12,7
UCT205	25	16	10	51	32	19	51	12	76	89	97	32	24	62	34,1	14,3
UCTX05	25	16	12	56	37	22	57	12	89	102	113	37	28	70	38,1	15,9
UCT305	25	16	14	62	36	26	65	12	80	89	122	36	26	76	38	15
UCT206	30	16	10	56	37	22	57	12	89	102	113	37	28	70	38,1	15,9
UCTX06	30	16	15	64	37	22	64	12	89	102	129	37	30	78	42,9	17,5
UCT306	30	18	16	70	41	28	74	16	90	100	137	41	28	85	43	17
UCT207	35	16	13	64	37	22	64	12	89	102	129	37	30	78	42,9	17,5
UCTX07	35	19	17	83	49	29	83	16	102	114	144	49	36	88	49,2	19
UCT307	35	20	17	75	45	30	80	16	100	111	150	45	32	94	48	19
UCT208	40	19	16	83	49	29	83	16	102	114	144	49	35	89	49,2	19
UCTX08	40	19	17	83	49	29	83	16	102	117	144	49	36	87	49,2	19
UCT308	40	22	19	83	50	32	89	18	112	124	162	50	34	100	52	19
UCT209	45	19	16	83	49	29	83	16	102	117	144	49	35	87	49,2	19
UCTX09	45	19	18	83	49	29	86	16	102	117	151	49	38	92	51,6	19
UCT309	45	24	20	90	55	34	97	18	125	138	178	55	38	110	57	22
UCT210	50	19	16	83	49	29	86	16	102	117	149	49	35	90	51,6	19
UCTX10	50	25	21	102	64	35	95	22	130	146	171	64	42	106	55,6	22,2
UCT310	50	27	22	98	61	37	106	20	140	151	192	61	40	118	61	22
UCT211	55	25	19	102	64	35	95	22	130	146	171	64	41	106	55,6	22,2
UCTX11	55	32	21	102	64	35	102	22	130	146	194	64	44	119	65,1	25,4
UCT311	55	29	23	105	66	39	115	22	150	163	207	66	44	127	66	25
UCT212	60	32	19	102	64	35	102	22	130	146	194	64	46	119	65,1	25,4
UCTX12	60	32	23	111	70	41	121	26	151	167	224	70	48	137	65,1	25,4
UCT312	60	31	25	113	71	41	123	22	160	178	220	71	46	135	71	26
UCT213	65	32	21	111	70	41	121	26	151	167	224	70	51	137	65,1	25,4
UCTX13	65	32	23	111	70	41	121	26	151	167	224	70	48	137	74,6	30,2
UCT313	65	32	27	116	70	43	134	26	170	190	238	80	50	146	75	30
UCT214	70	32	21	111	70	41	121	26	151	167	224	70	46	137	74,6	30,2
UCTX14	70	32	23	111	70	41	121	26	151	167	232	70	48	140	77,8	33,3
UCT314	70	36	27	130	85	46	140	26	180	202	252	90	52	155	78	33
UCT215	75	32	21	111	70	41	121	26	151	167	232	70	48	140	77,8	33,3
UCTX15	75	32	23	111	70	41	121	28	165	184	235	70	48	140	82,6	33,3
UCT315	75	36	27	132	85	46	150	26	192	216	262	90	55	160	82	32
UCT216	80	32	21	111	70	41	121	26	165	184	235	70	51	140	82,6	33,3
UCTX16	80	38	30	124	73	48	157	28	173	198	260	73	54	162	85,7	34,1
UCT316	80	42	30	150	98	53	160	30	204	230	282	102	60	174	86	34
UCT217	85	38	29	124	73	48	157	30	173	198	260	73	54	162	85,7	34,1
UCTX17	85	38	30	124	73	48	157	28	173	198	260	73	54	162	96	39,7
UCT317	85	42	32	152	98	53	170	32	214	240	298	102	64	183	96	40
UCT318	90	46	32	160	106	57	175	32	228	255	312	110	66	192	96	40
UCT319	95	46	33	165	103	57	180	35	240	270	322	110	72	197	103	41
