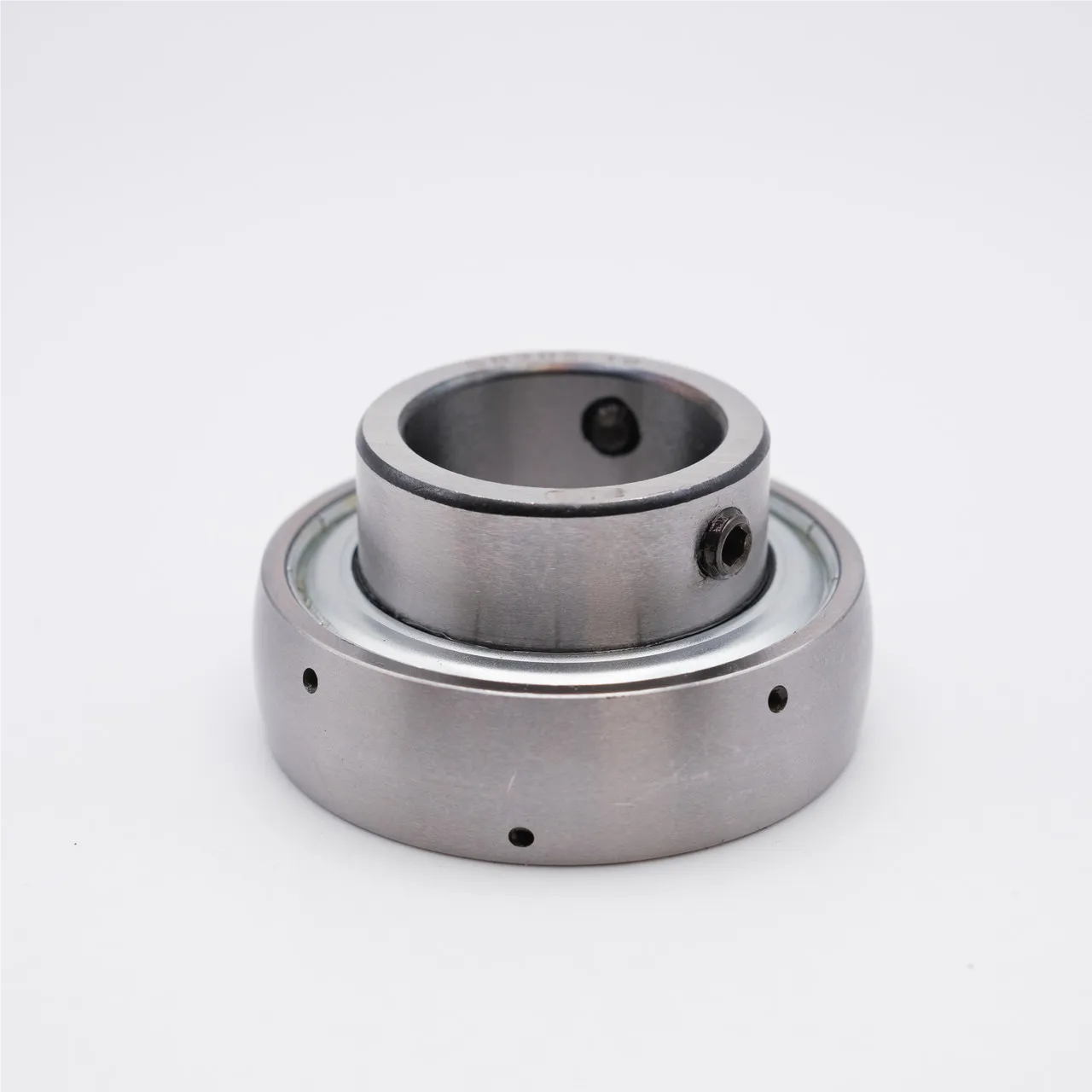

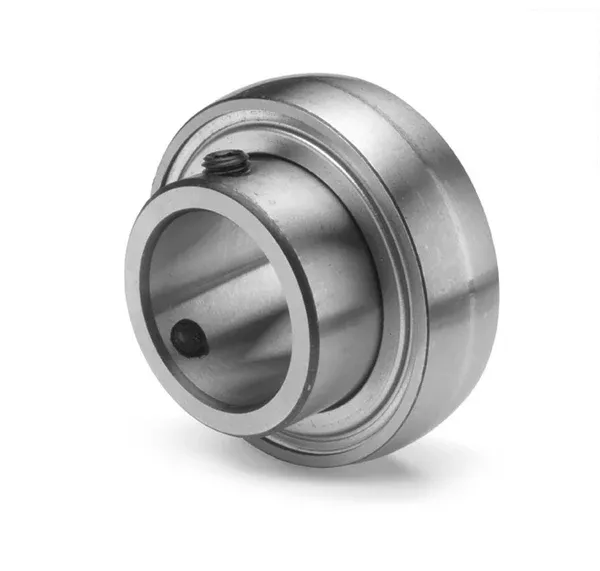

Insert ball bearing:SB206
Basic Parameters
"SB" part
- "SB" indicates that this bearing belongs to the insert ball bearing type. This kind of bearing is characterized by having a bearing unit with a seat ring and can usually be easily installed in mechanical structures. It is suitable for various occasions that require rotational support.
"2" part
- Here, "2" may be a series code. In bearing models, series codes are used to distinguish bearing series with different sizes, load-carrying capacities, and structural characteristics. For the SB2 series, it represents that this series of bearings has specific size ranges and performance parameters.
"06" part
- "06" usually indicates the inner diameter size of the bearing. In this type of bearing numbering, the inner diameter size is coded according to a certain standard. Generally, the number multiplied by 5 is the inner diameter size of the bearing (in mm). So for SB206, its inner diameter size is 6×5 = 30mm. This coding method for inner diameter size helps quickly identify the key installation size of the bearing.
Performance Characteristics
Load-bearing capacity
-
Its basic dynamic load rating (C) reaches 1530 kg, which means that under normal operating conditions, this bearing can stably bear a dynamic load of 1530 kg and is suitable for equipment with certain load requirements.
-
The basic static load rating (C0) is 1143 kg. When the equipment is stationary or running slowly, it can bear a static load of 1143 kg to ensure the stability of the equipment during startup and shutdown.
Weight and compactness
- This bearing weighs 0.27 kg and is relatively light. Without affecting performance, it helps reduce the overall weight of the equipment. At the same time, its compact structural design can well adapt to the equipment environment with certain space requirements and make your equipment layout more reasonable.
Product Application
-

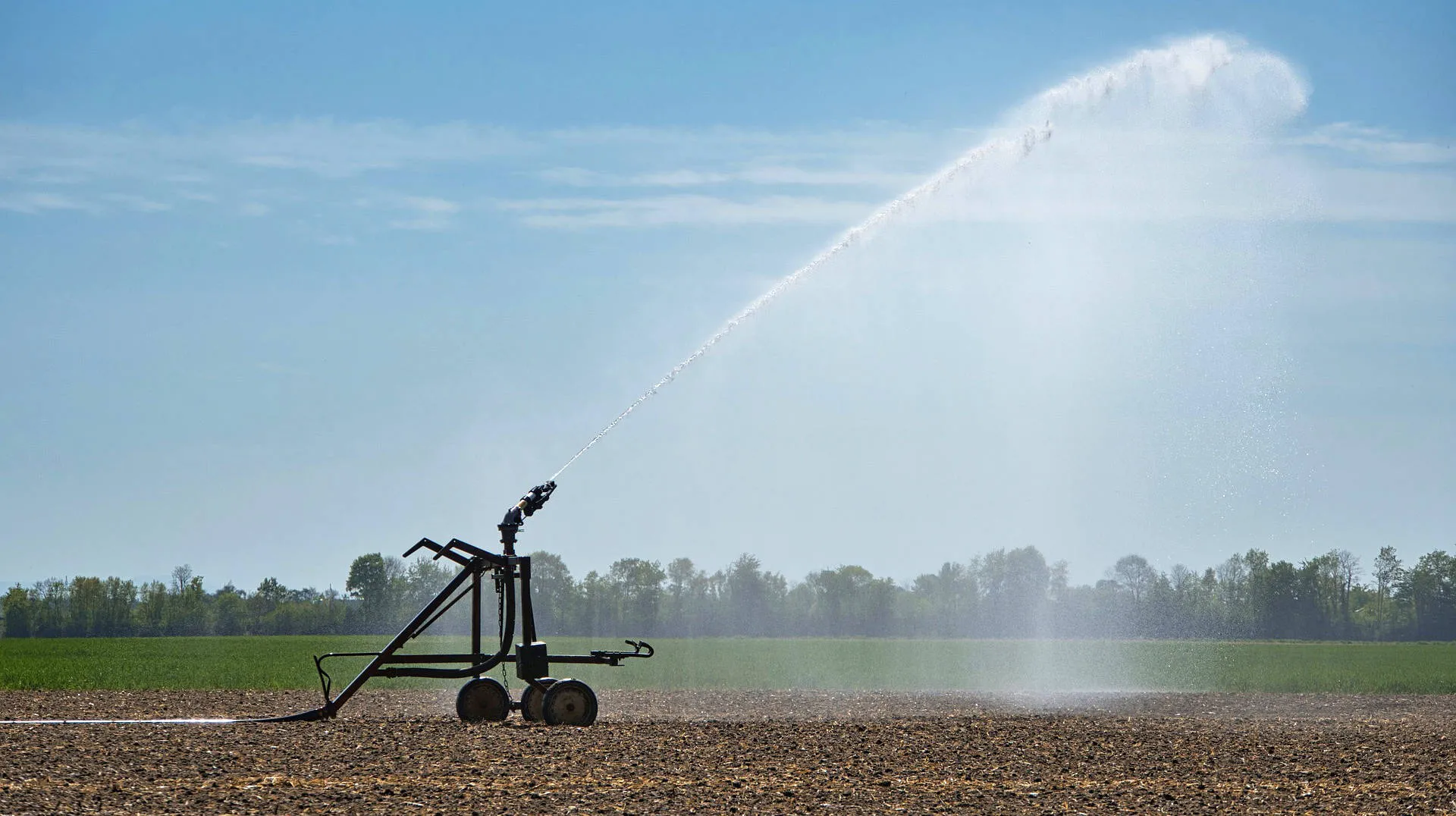

Agricultural machinery: Transmission system of small seeder, shaft of agricultural irrigation water pump, which can ensure uniform sowing and stable pumping.
-

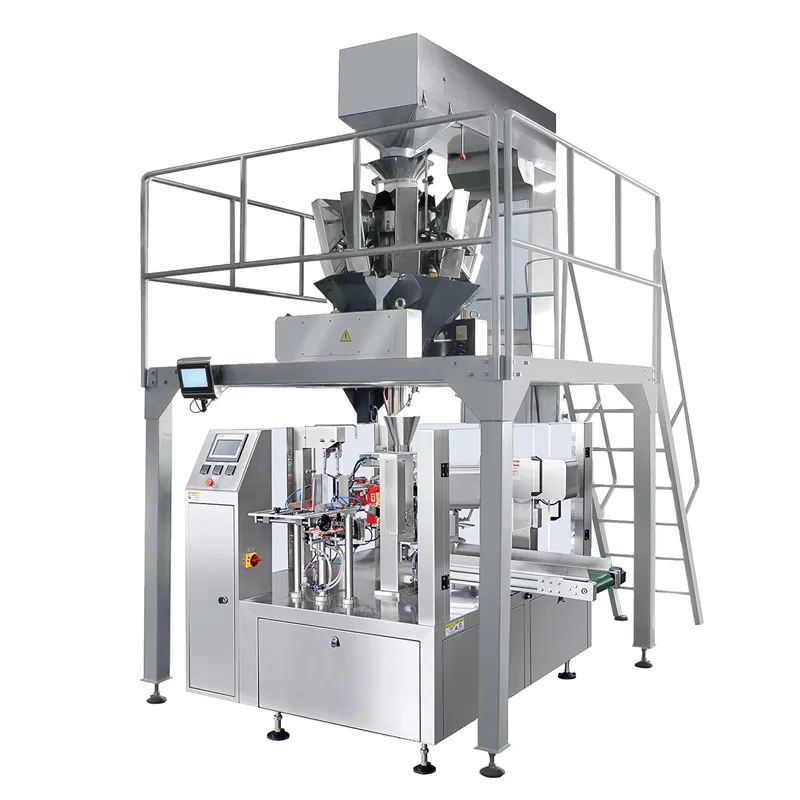

Food processing machinery: Drive shaft of conveyor belt of food packaging machine, shaft of grinding disc of small food grinder, ensuring accurate packaging and normal grinding.
-
Small power tools: Motor shaft of hand-held electric drill, rotating shaft of screwdriver head of electric screwdriver, helping to drill effectively and screw accurately.
-

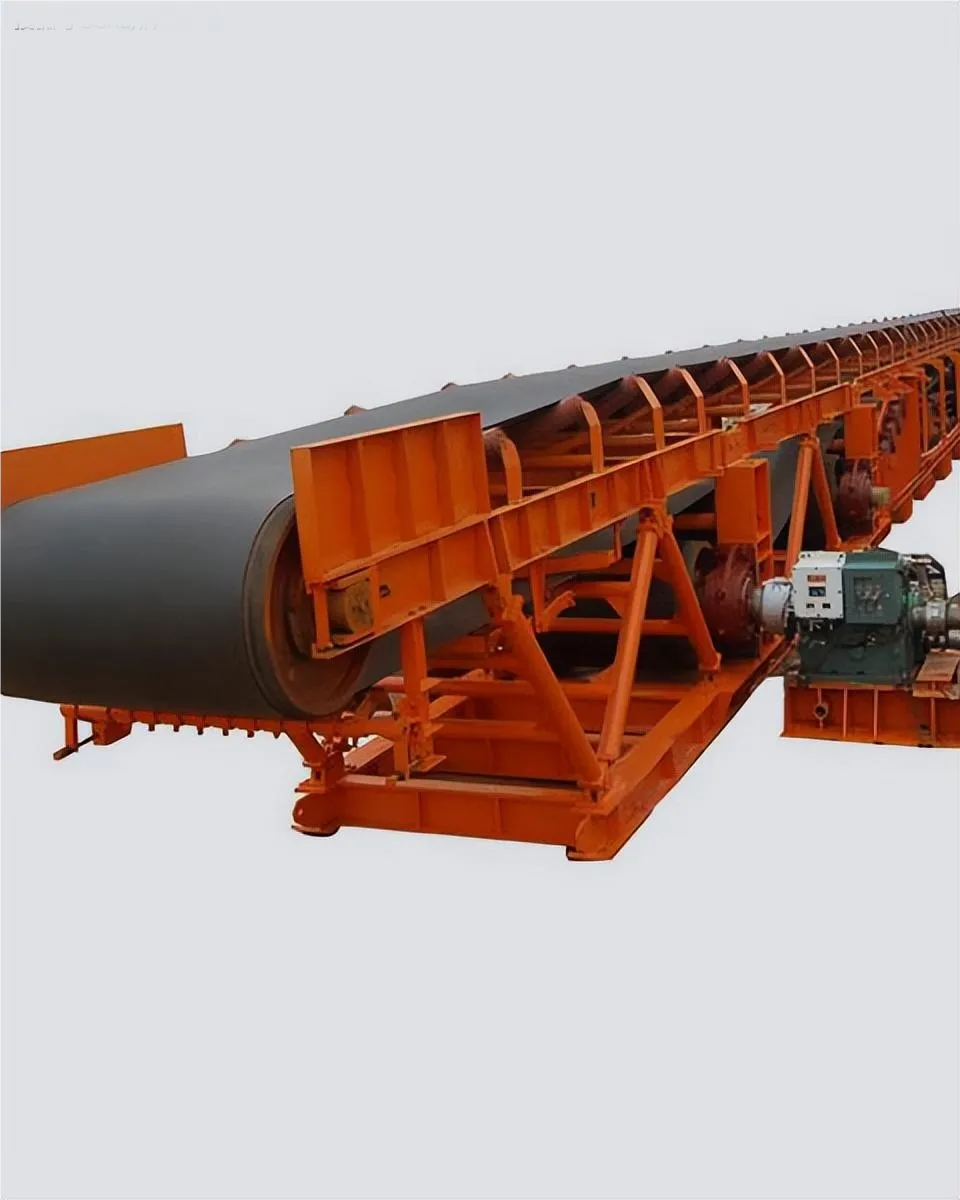

Light industrial equipment: Small conveyor belt drum, transmission parts of light automation equipment, maintaining stable material transportation and ensuring equipment operation efficiency.
Product List
| Bearing No. |
Dimensions(mm) |
Basic Load Rating |
Basic Static Load rating |
Weight |
| ISO |
d |
D |
C |
S |
B |
G |
ds |
(kg) |
(kg) |
(kg) |
| SB202 |
15 |
40 |
13 |
6,5 |
23 |
5,0 |
M5x0,8 |
750
488 |
488 |
0,10 |
| SB203 |
17 |
40 |
13 |
6,5 |
23 |
5,0 |
M5x0,8 |
750 |
488 |
0,10 |
| SB204 |
20 |
47 |
14 |
7,0 |
25 |
5,0 |
M6x1,0 |
1010 |
679 |
0,15 |
| SB205 |
25 |
52 |
15 |
7,5 |
27 |
5,5 |
M6x1,0 |
1100 |
804 |
0,18 |
| SB206 |
30 |
62 |
16 |
8,0 |
29 |
6,0 |
M6x1,0 |
1530 |
1143 |
0,27 |
| SB207 |
35 |
72 |
18 |
9,0 |
32 |
6,0 |
M6x1,0 |
2020 |
1551 |
0,42 |
| SB208 |
40 |
80 |
19 |
9,5 |
34 |
7,0 |
M8x1,0 |
2280 |
1857 |
0,60 |
| SB209 |
45 |
85 |
20 |
10,0 |
36 |
8,0 |
M8x1,0 |
2570 |
2122 |
0,73 |
| SB210 |
50 |
90 |
21 |
11,0 |
38 |
8,0 |
M8x1,0 |
2750 |
2367 |
0,80 |
| SB211 |
55 |
100 |
23 |
12,0 |
41 |
9,0 |
M10x1,25 |
3400 |
2980 |
1,10 |
