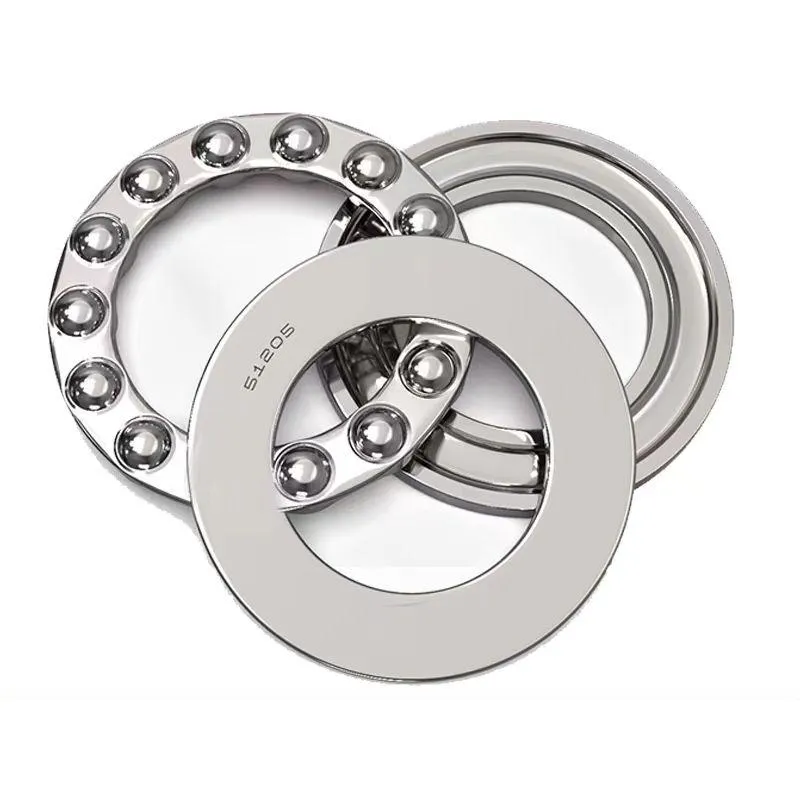

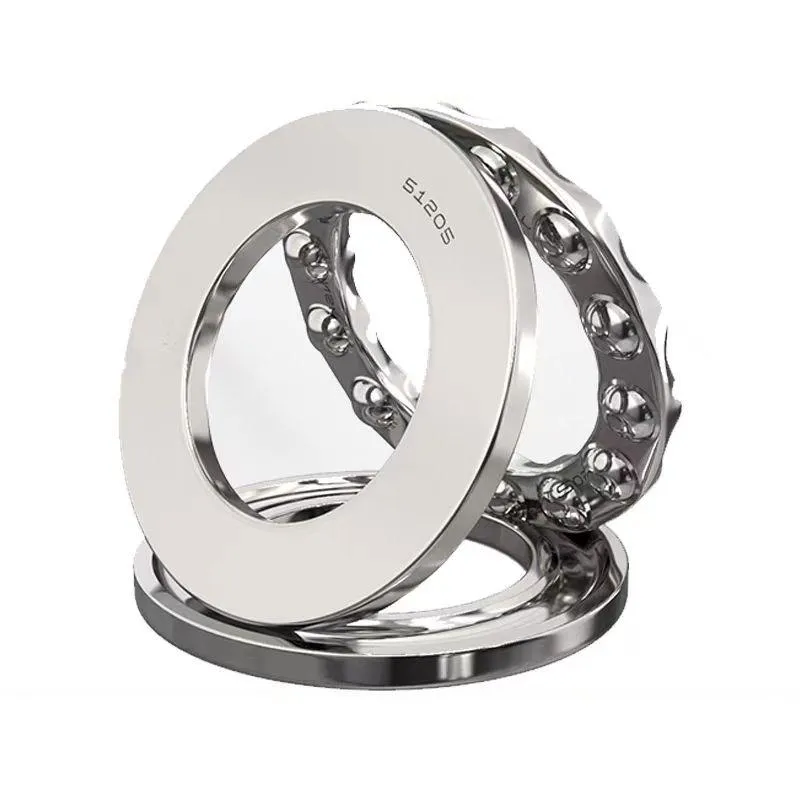

Thrust ball bearing:51205

Basic Parameters

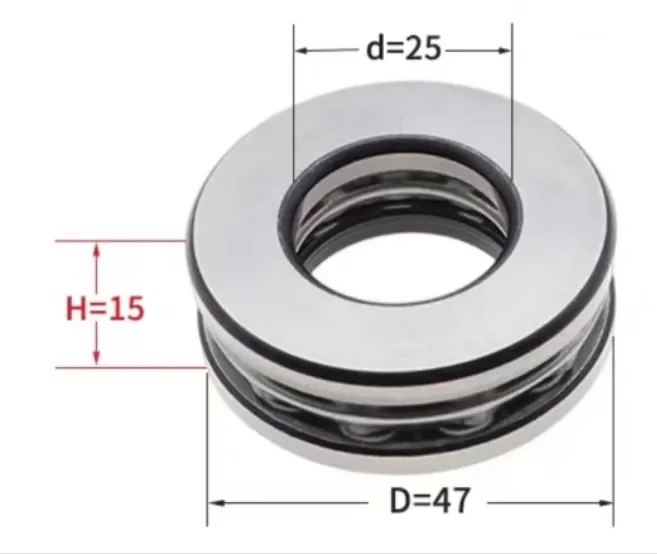

In the bearing 51205 " 5 "indicates that the bearing type is a thrust ball bearing, "12 "represents the bearing size series, and "05" indicates that the bearing's inner diameter is 25 millimeters.If the bearing is a standard part, its external dimensions are usually the same. The old model number is 8205.

Features and Performance

Unidirectional Thrust Load Bearing: The bearing can only withstand axial loads in a single direction and cannot bear radial loads.

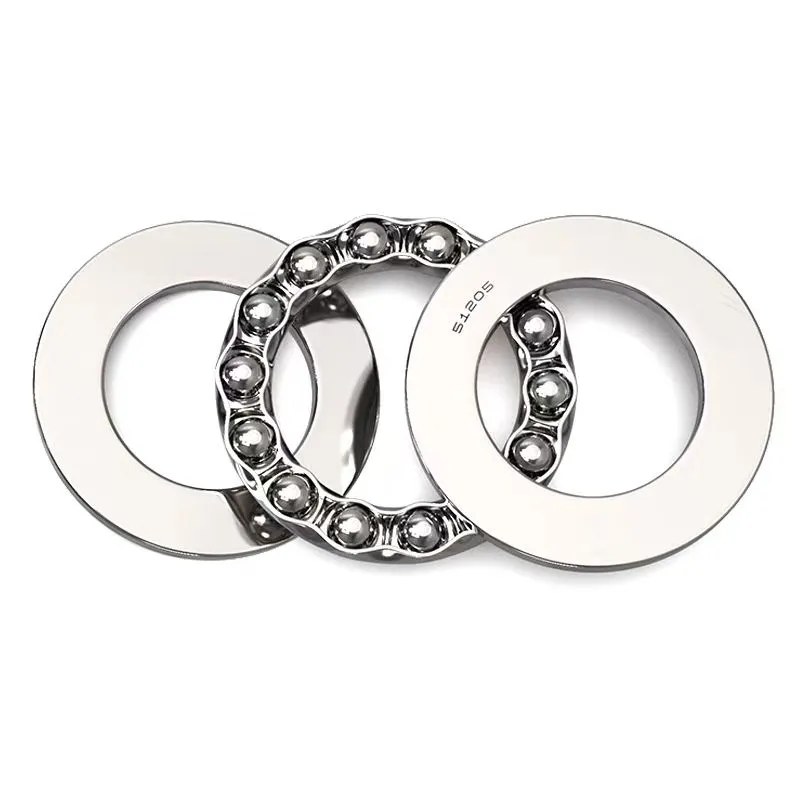

Detachable Components: The components of the bearing can be separated, facilitating installation, disassembly, and maintenance inspections.

Inner Bore Grinding of the Race: The inner bore of the race is ground, allowing for an interference fit with the shaft, ensuring the stability and reliability of the bearing.

Materials and Construction

Bearing Steel Material: Main components of the bearing, such as washers and balls, are typically made from bearing steel 52100 (Gcr15), which offers good wear resistance and fatigue resistance.

Cage Material: The cage is usually made from copper or steel, used to secure and support the rolling elements within the bearing.

Groove Design: There are grooves on the washers that guide the movement of the rolling elements.

•

  51205

•

  51205

•

  51205

Product Application

The 51205 bearing, known for its unidirectional thrust capacity and ease of maintenance, is widely used in various mechanical equipment, such as:Food processing equipment: Including biscuit machines, etc. Industrial equipment: Such as spiral plate heat exchangers, bulldozers, centrifugal pumps, etc.Other mechanical equipment: Including torsion testing machines, extrusion equipment, grinders, drying equipment, laminating machines, tablet presses, last making machines, machine tool grooves, tooling fixtures, showering devices, friction welding machines, coking equipment, gear shapers, air purifiers, etc.

In summary, the 51205 bearing is a stable and easy-to-maintain unidirectional thrust ball bearing suitable for various mechanical equipment that requires unidirectional thrust capacity.

•

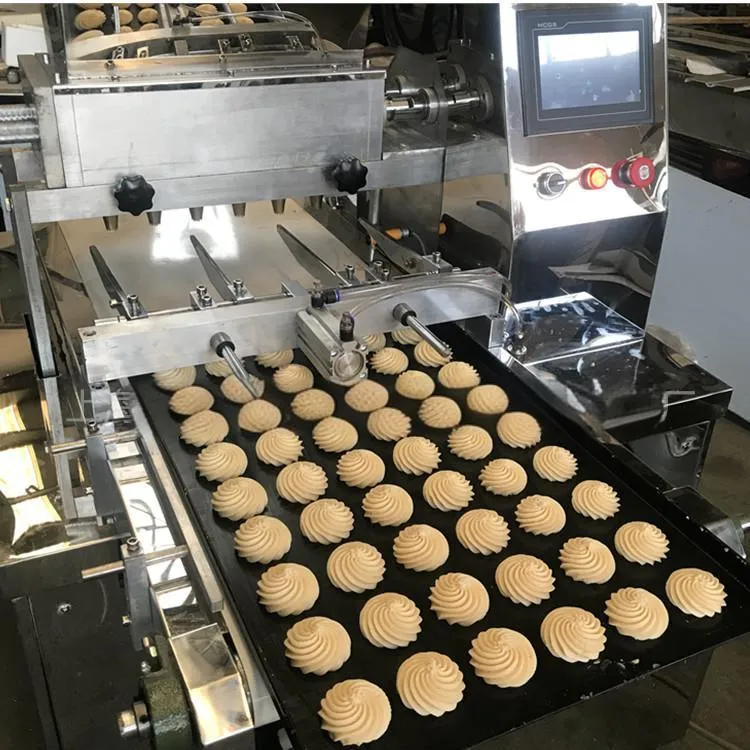

   biscuit machines

•

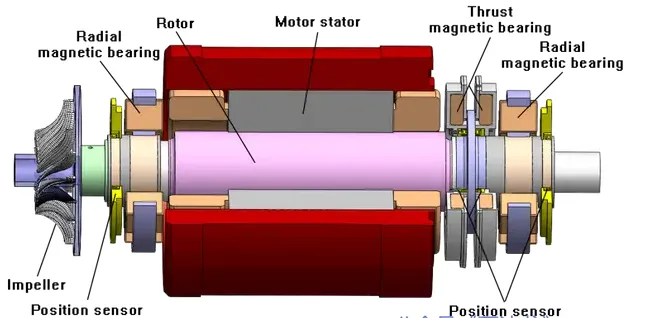

  centrifugal pumps

•

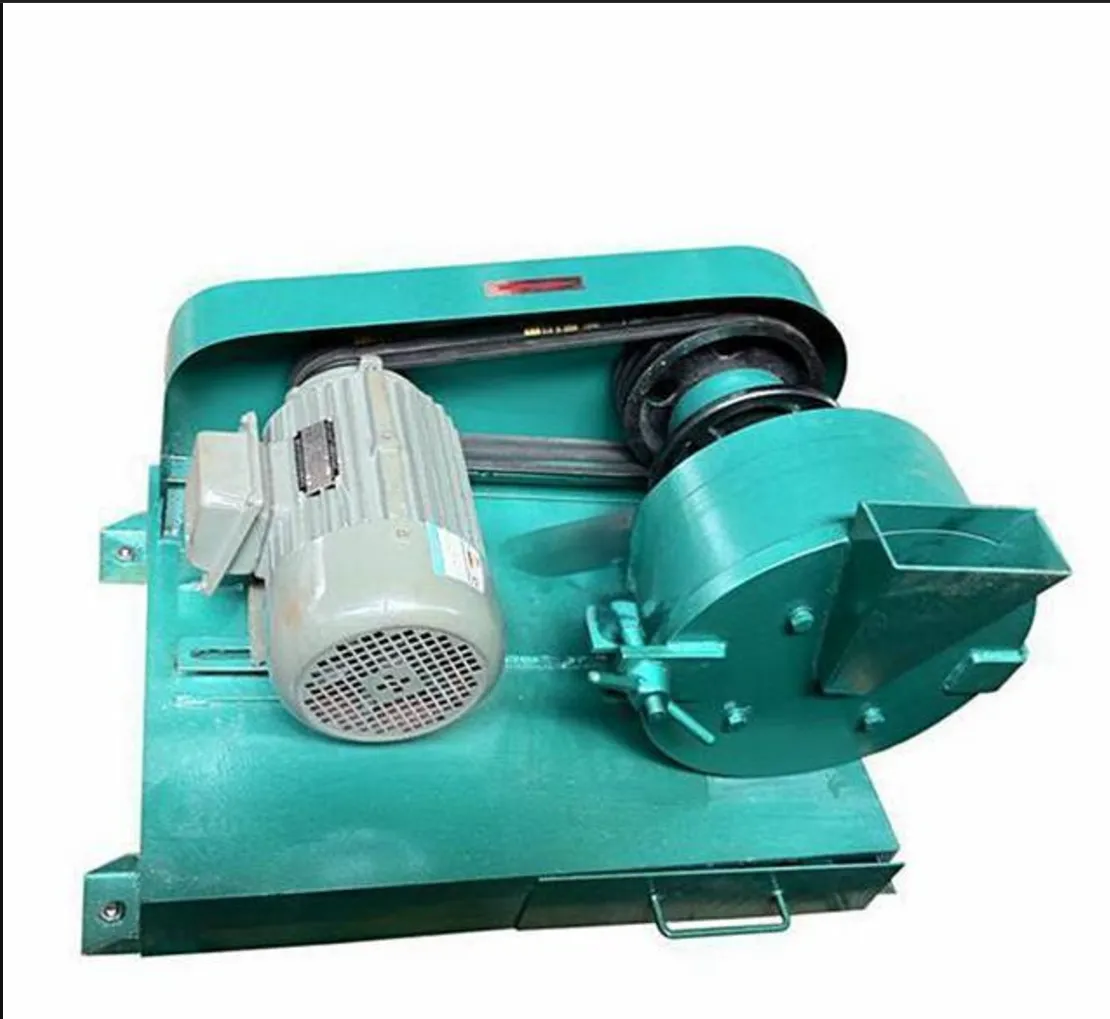

  grinders
