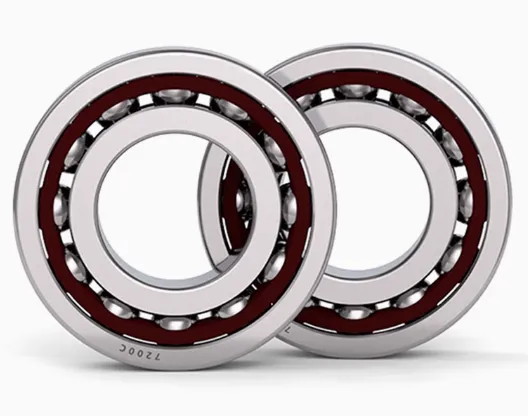

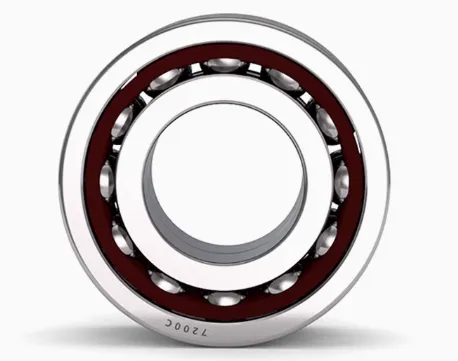

Angular contact ball bearing：7200AC

Product Name:	Angular Contact Ball Bearing
Type:	Ball Bearing	Brand :	FODA
New Model:	7200AC	Old Model:	46200
Inner Diameter (mm):	10	Outer Diameter (mm):	30
Thickness (mm):	9	Weight (kg/pc):	0.032

Send Email To Us PDF DOWNLOAD

Product Details

Download Catalogue

Basic Parameters

Type: 7200AC belongs to angular contact ball bearings. This type of bearing can simultaneously bear radial and axial loads 15.

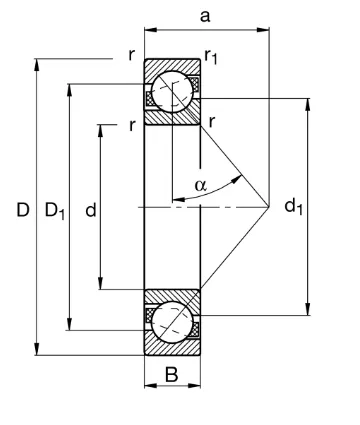

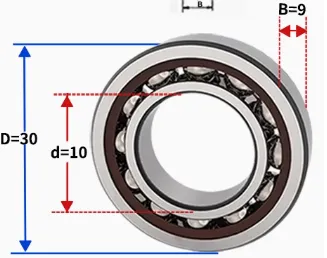

Basic parameters: Its inner diameter is 10mm, outer diameter is 30mm, and thickness is 9mm.

7200AC
7200AC
7200AC

Performance Characteristics

Contact Angle Advantage: The contact angle of 7200AC is 25°. Compared with angular contact ball bearings with smaller contact angles, it has better ability to bear axial loads. In some application scenarios with high requirements for axial forces, it can better maintain the stability and reliability of the bearing and effectively limit the axial displacement of the shaft or housing in one direction by 15.

High-Speed Performance: This bearing has a relatively high limiting speed and can meet the needs of some equipment for high-speed operation. Under appropriate lubrication conditions, it can operate stably at a relatively high rotational speed, reducing friction and heat generation, thereby ensuring the efficient operation of the equipment and prolonging the service life of the bearing by 15.

High-Precision Operation: The high precision in the manufacturing process ensures the rotational precision of the 7200AC bearing during operation, which helps improve the processing precision and working efficiency of the equipment it cooperates with, reduces the vibration and noise during equipment operation, and makes the equipment run more smoothly and steadily.

Product Application

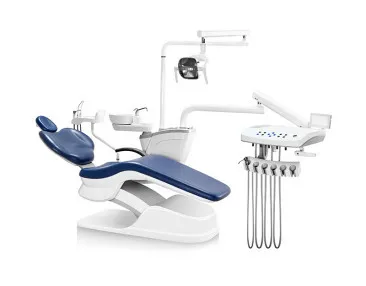

Small precision machinery: Due to its characteristics of small size, high precision and fast rotation speed, it is widely used in fields such as small precision instruments, medical devices, office equipment and more. For example, in small power tools, it can provide stable support and high-precision rotation to ensure the performance and service life of the tool; in dental surgical equipment, it can ensure stability and accuracy during high-speed operation and provide reliable guarantee for dental treatment; in office equipment such as copiers, it helps improve the operating efficiency and copying quality of the equipment.

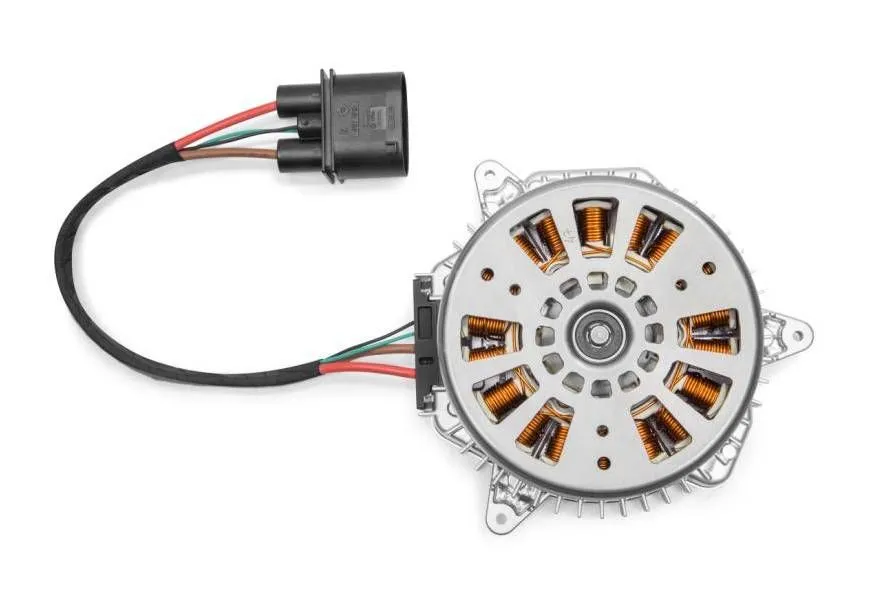

Other fields: In addition to the above fields, it can also be used in some equipment that requires compact space and can bear certain radial and axial loads at the same time, such as small transmission devices in some automated production lines and cooling fans of electronic equipment, playing an important role in the stable operation of these equipment.

Installation and Maintenance

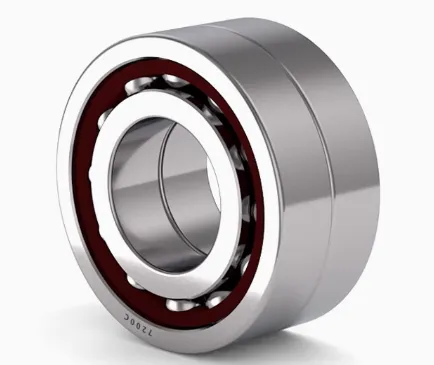

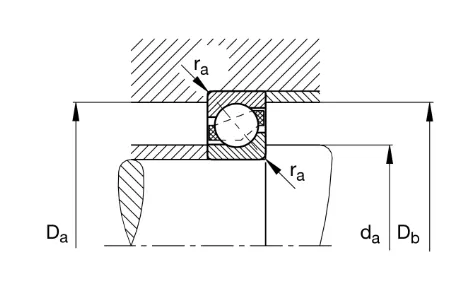

Pair installation suggestion: Single-row 7200AC bearings can only bear axial loads in one direction. Therefore, pair installation is generally often adopted to better balance axial forces and improve the stability and load-bearing capacity of the bearing system. Common installation methods include back-to-back, face-to-face, and in series. Different installation methods have different characteristics and advantages and can be selected according to specific usage requirements and working conditions.

Lubrication and maintenance: To ensure the normal operation and service life of 7200AC bearings, correct lubrication and regular maintenance are extremely important. According to the use environment and requirements of the equipment, select a suitable lubricant and add and replace it according to the specified lubrication cycle. At the same time, regularly check the operating status of the bearings and timely discover and handle possible problems such as insufficient lubrication, wear, and fatigue.

Product List

Bearing No.		Dimensions (mm)			Basic Load Rating (N)		Weight
ISO	GOST	d	D	B	Dyn. C	Stat. C0	(kg)
7200 AC	46200	10	30	9	4650	2200	0.032
7201 AC	46201	12	32	10	7450	3650	0.039
7202 AC	46202	15	35	11	8100	4250	0.048
7203 AC	46203	17	40	12	10200	5500	0.069
7204 AC	46204	20	47	14	14500	8400	0.11
7205 AC	46205	25	52	15	15300	9500	0.13
7206 AC	46206	30	62	16	21300	13700	0.217
7207 AC	46207	35	72	17	19100	13700	0.313
7208 AC	46208	40	80	18	33600	23300	0.402
7209 AC	46209	45	85	19	37700	26600	0.46
7210 AC	46210	50	90	20	39400	29400	0.51
7211 AC	46211	55	100	21	48700	37100	0.68
7212 AC	46212	60	110	22	58900	45700	1.02
7213 AC	46213	65	120	23	67300	54200	1.09
7214 AC	46214	70	125	24	69800	55600	1.18
7215 AC	46215	75	130	25	79200	65200	1.32
7216 AC	46216	80	140	26	85300	71500	1.57
7217 AC	46217	85	150	28	98600	83600	2.01
7218 AC	46218	90	160	30	113000	96700	2.47
7219 AC	46219	95	170	32	122000	103000	3.02
7220 AC	46220	100	180	34	137000	117000	3.62
7221 AC	46221	105	190	36	149000	132000	4.29
7222 AC	46222	110	200	38	162000	148000	5.03
7224 AC	46224	120	215	40	174000	166000	7.08
7226 AC	46226	130	230	40	196000	198000	8.1
7228 AC	46228	140	250	42	218000	234000	9.95
7230 AC	46230	150	270	45	248000	280000	12.46
7232 AC	46232	160	290	48	230000	263000	15.49
7234 AC	46234	170	310	52	27000	331000	19.69
7236 AC	46236	180	320	52	293000	362000	20.26
7238 AC	46238	190	340	55	303000	390000	24.31
7240 AC	46240	200	360	58	324000	423000	28.82
7244 AC	46244	220	400	65	380000	540000	33.6
