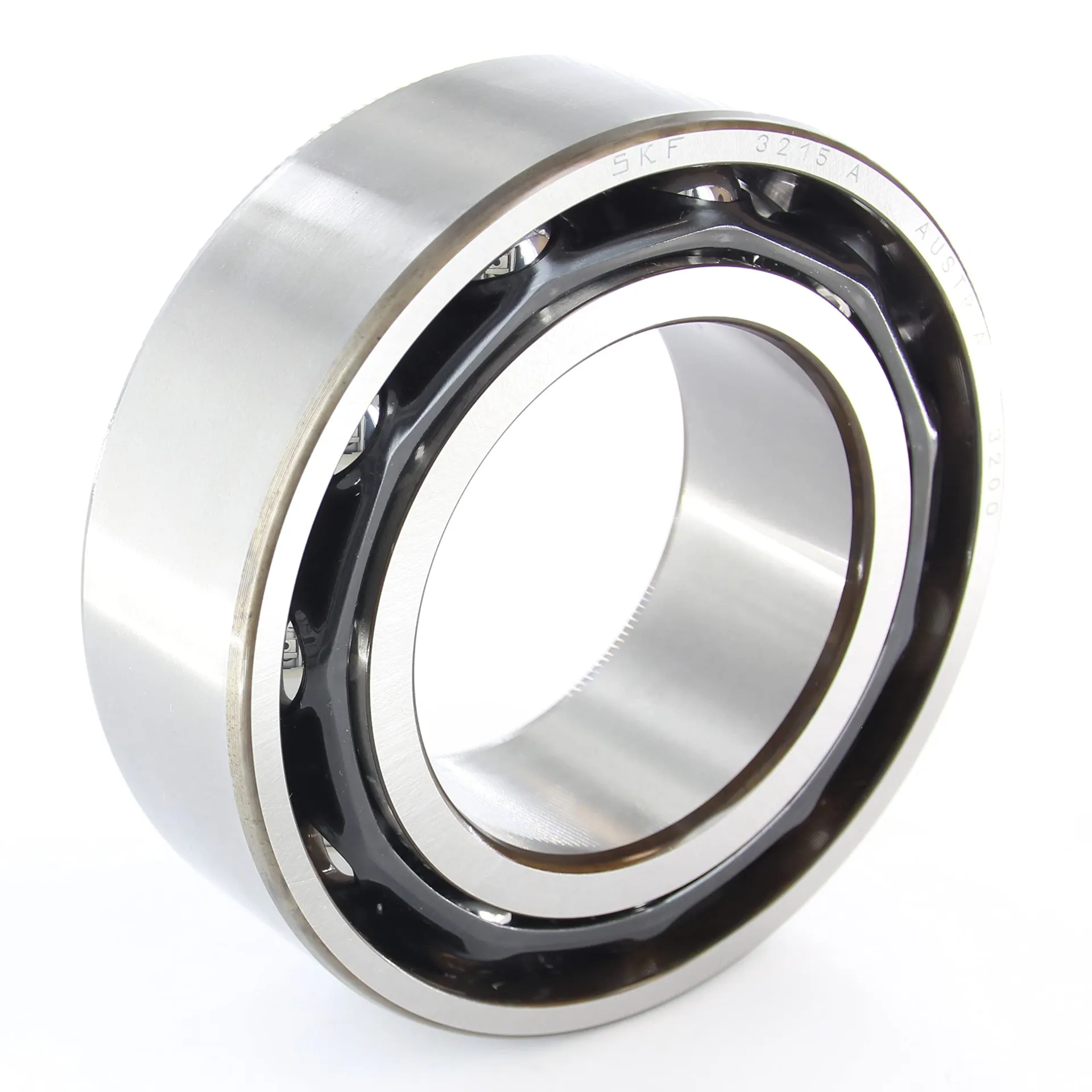

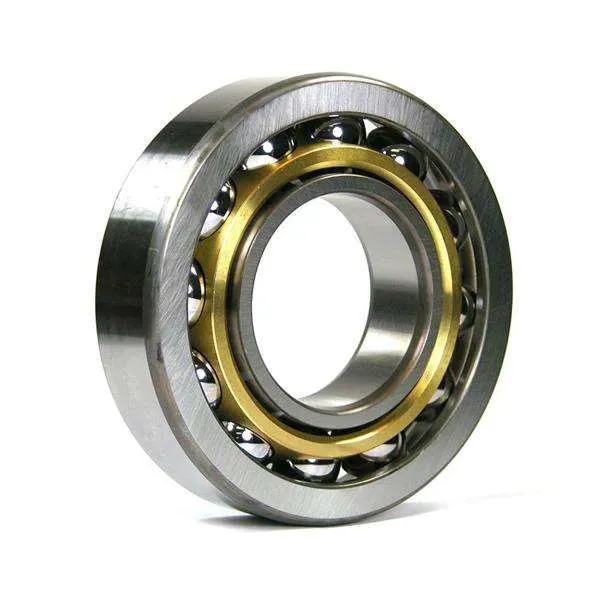

Double row angular contact ball bearing:3215ZZ

double-row-angular-contact-ball-bearing3215zz

Product Name:	Double row angular contact ball bearing
Type:	Ball Bearing	Brand :	FODA
New Model:	3215ZZ	Old Model:	3056202
Inner Diameter (mm):	75	Outer Diameter (mm):	130
Thickness (mm):	41.3	Weight (kg/pc):	2.1

Send Email To Us PDF DOWNLOAD

Product Details

Download Catalogue

Basic Parameters

Bearing model 3215ZZ has the following meanings:

Basic code: Composed of type code, size series code and inner diameter code.
Type code: "3" indicates double row angular contact ball bearing.
Size series code: Composed of width series code and diameter series code. In "32", "3" is the diameter series code, indicating the medium series, meaning that the outer diameter of the bearing is medium-sized relative to its inner diameter; "2" is the width series code, indicating that the width of the bearing belongs to a specific width size relative to its diameter series.
Inner diameter code: "15" indicates the inner diameter size of the bearing. According to the general rule, multiplying the inner diameter code by 5 is the inner diameter of the bearing, so the inner diameter of this bearing is in 15*5=75mm.
Suffix: "ZZ" indicates double-sided dust cover. This design can prevent dust, impurities, etc. from entering the bearing interior, protect the rolling elements and raceways of the bearing, reduce wear and failure, and also help maintain the lubricating grease inside the bearing and extend the service life of the bearing.

Working Principle

Strong carrying capacity

Large size design: The inner diameter of 3215ZZ is 75mm, the outer diameter reaches 130mm, and the width is 46.8mm. This relatively large size enables it to withstand higher radial and axial loads, and is particularly suitable for large mechanical equipment that needs to bear heavy loads.
Optimized internal structure: The rolling elements and raceway design inside the bearing have been carefully optimized. The number and size of rolling elements have been increased, and a reasonable contact angle design has been adopted. This makes the bearing able to distribute pressure more evenly when bearing loads, effectively improving the carrying capacity and impact resistance.

High reliability and stability

High-quality materials: Made of high-quality bearing steel. This kind of steel has high strength, high hardness and good wear resistance. It can resist wear, fatigue and corrosion that may occur during long-term operation, ensuring that the bearing can maintain stable performance under various harsh working conditions and prolonging service life.
Rigorous manufacturing process: Follow strict production processes and quality control standards. Each production link undergoes precision processing and strict inspection to ensure the dimensional accuracy and geometric tolerance of the bearing. Thus, the bearing can maintain good concentricity and stability during operation and reduce the generation of vibration and noise.

Good sealing performance
Double-sided dust cover design: The "ZZ" in the model indicates that this bearing is equipped with a double-sided dust cover. This dust cover can effectively prevent external pollutants such as dust, impurities and moisture from entering the bearing interior, avoid wear and corrosion to the rolling elements and raceway of the bearing, protect the lubricating grease inside the bearing, and maintain a good lubrication state, thereby improving the reliability and service life of the bearing.

Product Application

Large fan: In large fans, it can withstand the huge weight of the fan impeller and the strong centrifugal force generated during rotation. At the same time, it can also deal with the axial thrust generated by the airflow on the impeller to ensure the stable operation of the fan and provide reliable power support for fields such as industrial ventilation and power generation.

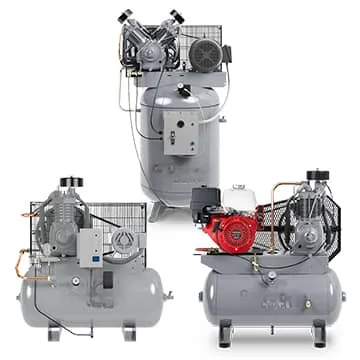

Compressor: Whether it is an air compressor or other types of compressors, a large pressure and vibration will be generated during the compression process. The 3215ZZ bearing, with its high load-carrying capacity and stability, can well adapt to these working conditions and ensure the efficient operation of the compressor. It is widely used in industries such as chemical engineering and refrigeration.

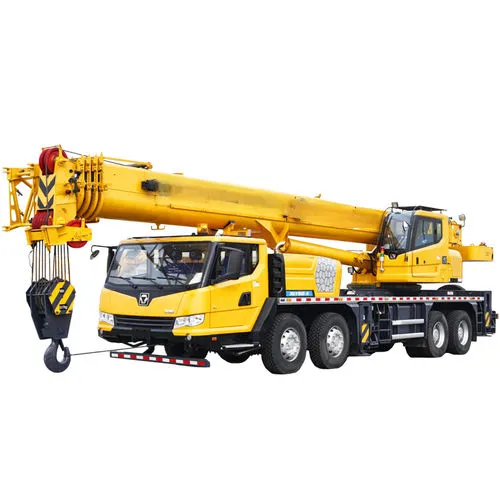

Crane: In the rotating mechanism and lifting mechanism of a crane, the 3215ZZ bearing plays a crucial role. It can support the huge weight of the crane and withstand various loads generated during lifting and rotation to ensure the safe and reliable operation of the crane. It is an ideal choice for crane equipment in industries such as construction and logistics.
- Large fans
- air compressor
- crane

Product List

Bearing No.		Dimensions (mm)			Basic Load Rating (N)		Weight
ISO	GOST	d	D	B	Dyn. C	Stat. C0	(kg)
3000 ZZ	3000 ZZ	10	26	12	5700	3250	0.022
3001 ZZ	3001 ZZ	12	28	12	6200	3750	0.025
3002 ZZ	3002 ZZ	15	32	13	8600	5400	0.036
3003 ZZ	3003 ZZ	17	35	14	9200	6200	0.042
3004 ZZ	3004 ZZ	20	42	16	14500	9600	0.08
3005 ZZ	3005 ZZ	25	47	16	15500	11100	0.1
3006 ZZ	3006 ZZ	30	55	19	20300	15600	0.16
3007 ZZ	3007 ZZ	35	62	20	24500	21400	0.2
3008 ZZ	3008 ZZ	40	68	21	25500	21700	0.25
3200 ZZ	3056200 ZZ	10	30	14	7410	4300	0.051
3201 ZZ	3056201 ZZ	12	32	15.9	10100	5600	0.058
3202 ZZ	3056202 ZZ	15	35	15.9	11200	6800	0.066
3203 ZZ	3056203 ZZ	17	40	17.5	14000	8650	0.096
3204 ZZ	3056204 ZZ	20	47	20.6	18600	12000	0.16
3205 ZZ	3056205 ZZ	25	52	20.6	20300	14000	0.18
3206 ZZ	3056206 ZZ	30	62	23.8	28100	20000	0.29
3207 ZZ	3056207 ZZ	35	72	27	37100	27500	0.44
3208 ZZ	3056208 ZZ	40	80	30.2	44900	33500	0.59
3209 ZZ	3056209 ZZ	45	85	30.2	47500	38000	0.63
3210 ZZ	3056210 ZZ	50	90	30.2	47500	39000	0.66
3211 ZZ	3056211 ZZ	55	100	33.3	57200	67000	1.05
3212 ZZ	3056212 ZZ	60	110	36.5	72100	85000	1.4
3213 ZZ	3056213 ZZ	65	120	38.1	78100	95000	1.75
3214 ZZ	3056214 ZZ	70	125	39.7	95000	83000	1.85
3215 ZZ	3056215 ZZ	75	130	41.3	95000	84000	2.1
3216 ZZ	3056216 ZZ	80	140	44.4	109000	102000	2.65
3217 ZZ	3056217 ZZ	85	150	49.2	129000	117000	3.4
3218 ZZ	3056218 ZZ	90	160	52.4	142000	142000	4.15
3220 ZZ	3056220 ZZ	100	180	60.3	187000	175000	5.5
3222 ZZ	3056222 ZZ	110	200	69.8	190000	180000	8.8
3302 ZZ	3056302 ZZ	15	42	19	15100	9150	0.13
3303 ZZ	3056303 ZZ	17	47	22.2	21200	12500	0.18
3304 ZZ	3056304 ZZ	20	52	22.2	22100	14300	0.22
3305 ZZ	3056305 ZZ	25	62	25.4	31200	20800	0.35
3306 ZZ	3056306 ZZ	30	72	30.2	41000	28500	0.53
3307 ZZ	3056307 ZZ	35	80	34.9	48800	34000	0.73
3308 ZZ	3056308 ZZ	40	90	36.5	56200	43000	0.95
3309 ZZ	3056309 ZZ	45	100	39.7	72100	73500	1.4
3310 ZZ	3056310 ZZ	50	110	44.4	88000	96500	1.95
3311 ZZ	3056311 ZZ	55	120	49.2	95200	108000	2.55
3312 ZZ	3056312 ZZ	60	130	54	112000	127000	3.25
3313 ZZ	3056313 ZZ	65	140	58.7	160000	126000	4
3314 ZZ	3056314 ZZ	70	150	63.5	161000	130000	4.9
3315 ZZ	3056315 ZZ	75	160	68.3	187000	160000	5.7
3316 ZZ	3056316 ZZ	80	170	68.3	198000	179000	6.95
3317 ZZ	3056317 ZZ	85	180	73	194000	185000	8.3
3800 ZZ	3800 ZZ	10	19	7	2100	1400	0.008
3801 ZZ	3801 ZZ	12	21	7	2190	1550	0.008
3802 ZZ	3802 ZZ	15	24	7	2430	1960	0.009
3803 ZZ	3803 ZZ	17	26	7	2480	2080	0.015
3804 ZZ	3804 ZZ	20	32	10	5600	4850	0.02
3805 ZZ	3805 ZZ	25	37	10	6000	5600	0.025
3806 ZZ	3806 ZZ	30	42	10	6300	6100	0.03
3807 ZZ	3807 ZZ	35	47	10	6700	7000	0.035
3808 ZZ	3808 ZZ	40	52	10	7000	7800	0.04
3809 ZZ	3809 ZZ	45	58	10	7200	8300	0.053
3810 ZZ	3810 ZZ	50	65	12	8700	10400	0.07
3811 ZZ	3811 ZZ	55	72	13	12100	15700	0.09
3812 ZZ	3812 ZZ	60	78	14	14500	17500	0.14
3814 ZZ	3814 ZZ	70	90	15	19200	23800	0.19
3816 ZZ	3816 ZZ	80	100	15	19600	25500	0.23
3818 ZZ	3818 ZZ	90	115	19	27000	35500	0.457
