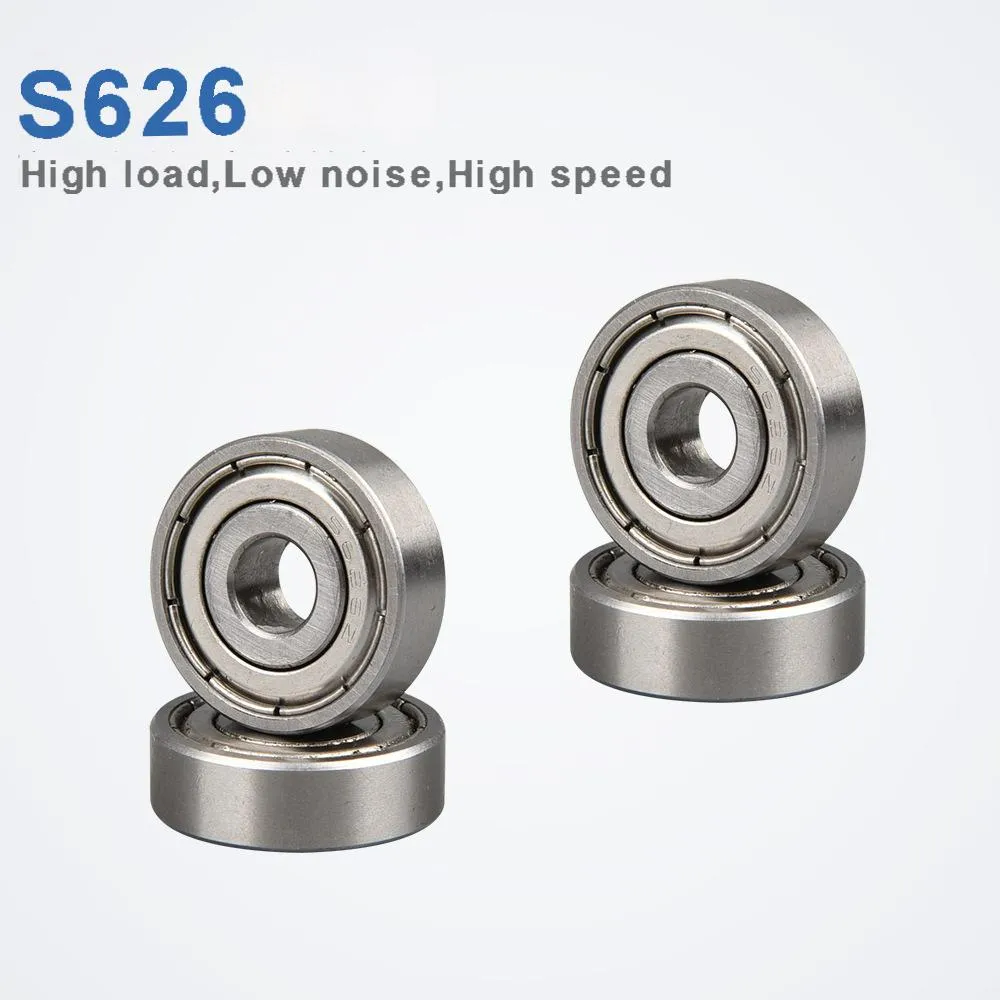

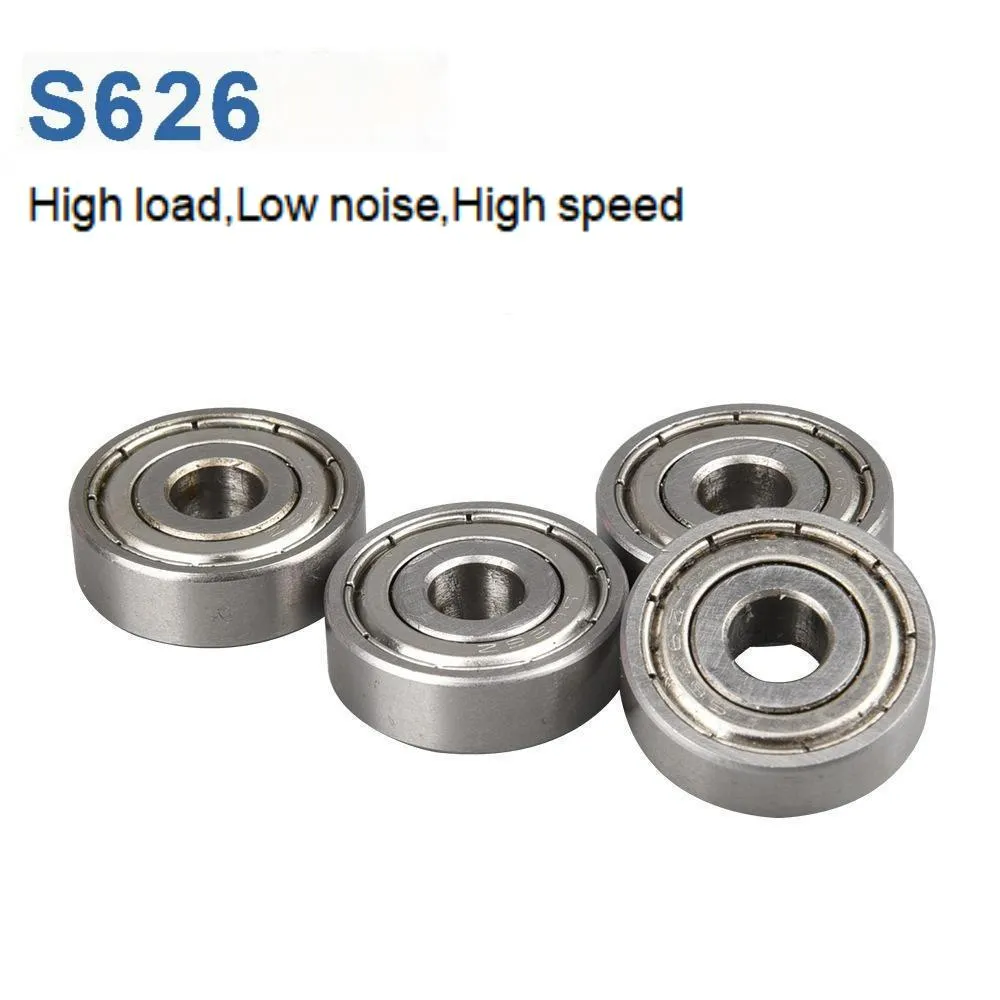

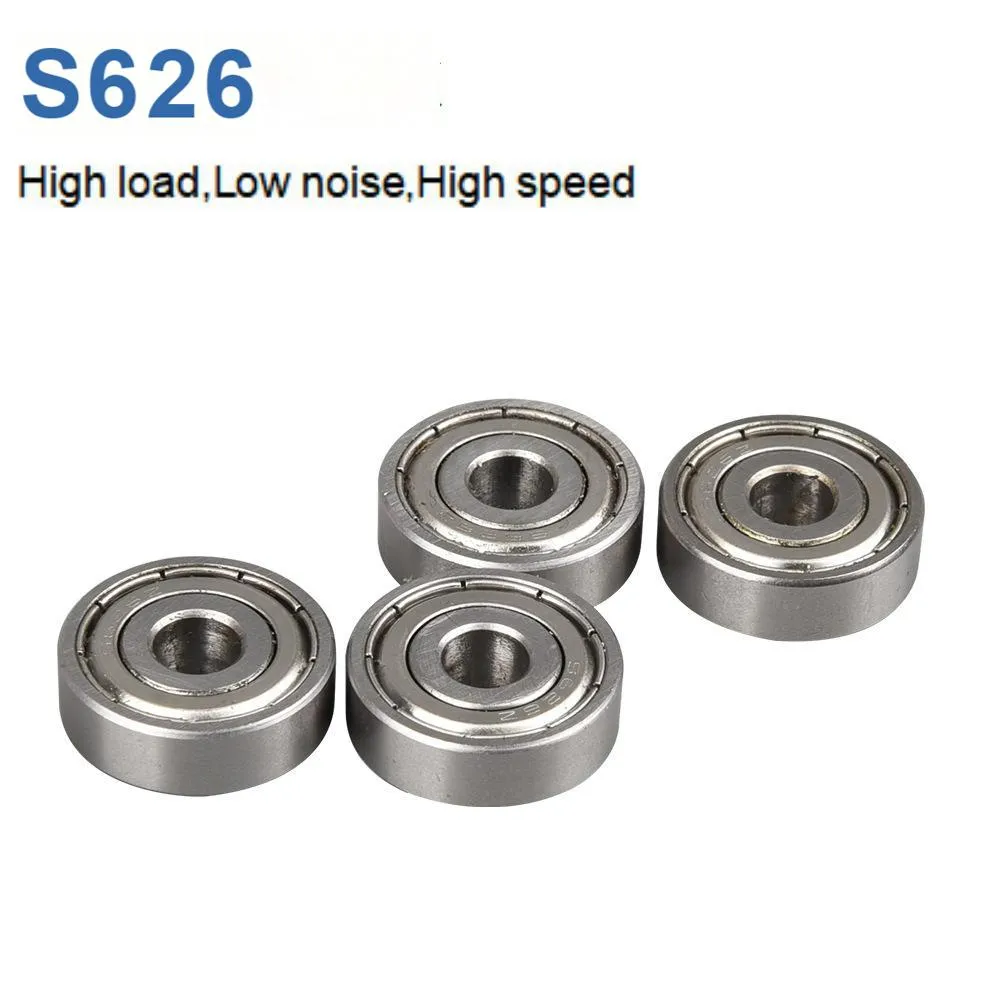

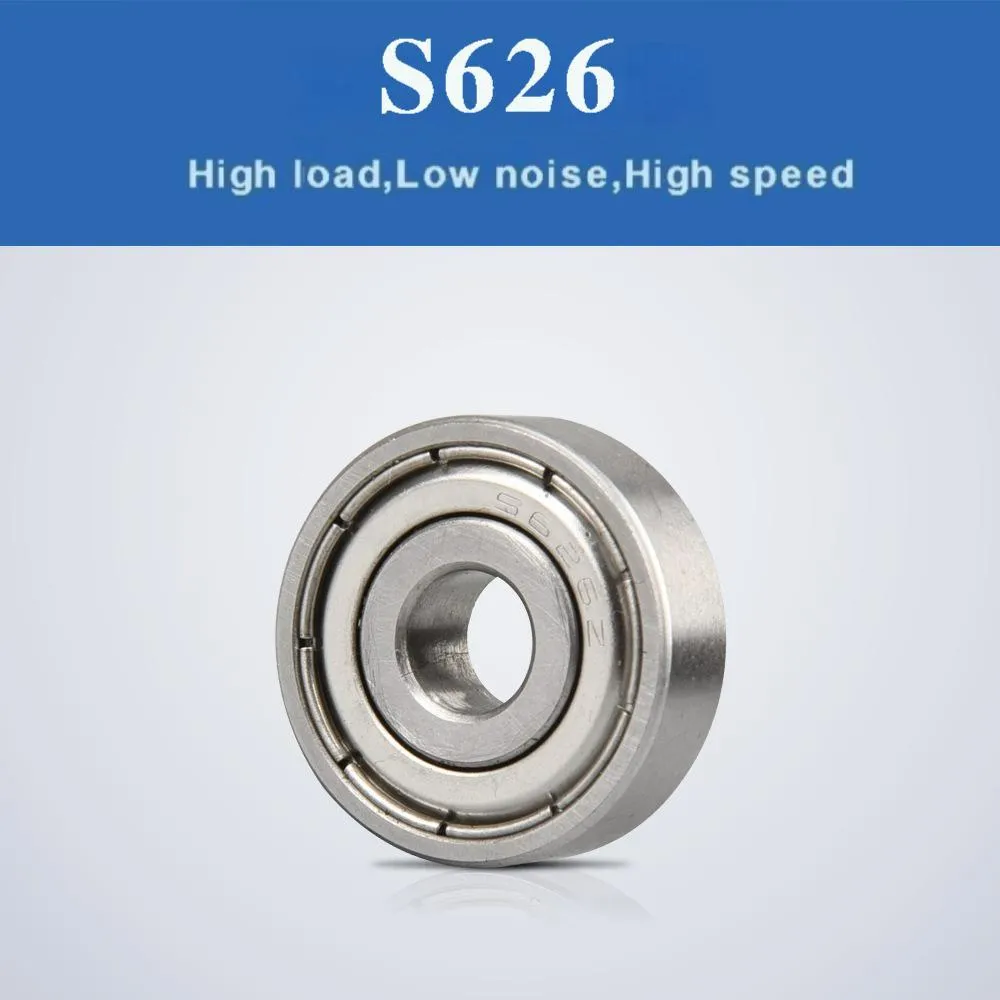

Miniature High Speed Deep Groove Ball Bearing：626

Product Name:	Miniature High Speed Deep Groove Ball Bearing
Type:	Ball Bearing	Brand :	FODA
New Model:	626	Model:	26
Inner Diameter (mm):	6	Outer Diameter (mm):	19
Thickness (mm):	6	Weight (g/pc):	8.1

Send Email To Us PDF DOWNLOAD

Product Details

Download Catalogue

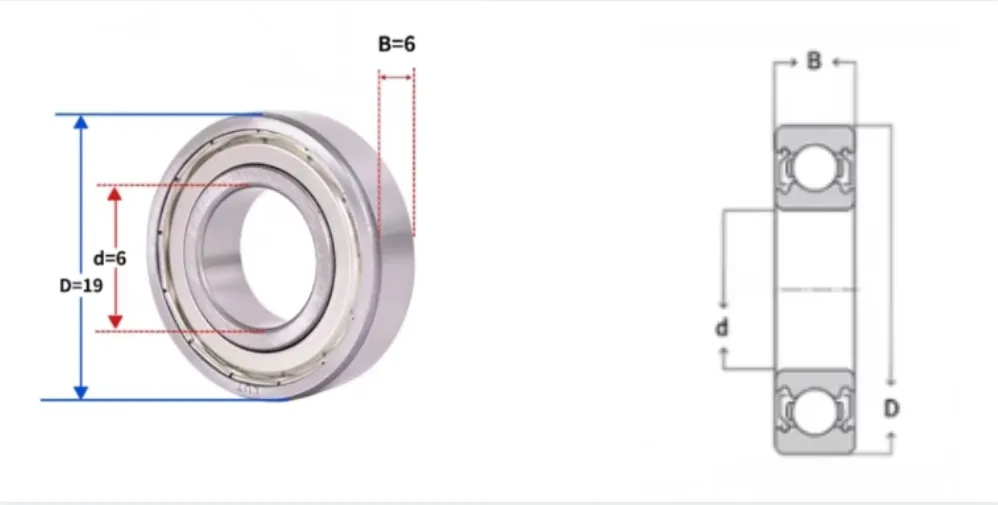

Basic Parameters

Deep groove ball bearings are the most common type of rolling bearings. The basic deep groove ball bearings consist of an outer ring, an inner ring, a set of steel balls and a set of cages. There are two types of deep groove ball bearings: single row and double row. The deep groove ball structure is also divided into sealed and open structures. The open type refers to the bearing without a sealed structure. The sealed deep groove ball is divided into dust-proof seals and oil-proof seals. The dust-proof seal cover is made of stamped steel plate and only serves to simply prevent dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the grease in the bearing from overflowing.

Product Application

Product Packing

Bearing No.		Dimensions (mm)			Basic Load Rating (N)		Weight
ISO	GOST	d	D	B	Dyn. C	Stat. C0	（kg）
602	12	2	7	2.8	380	125	0.00054
603	13	3	9	3	635	219	0.00092
604	14	4	12	4	970	360	0.0022
605	15	5	14	5	1330	510	0.004
606	16	6	17	6	2190	865	0.006
607	17	7	19	6	1720	620	0.075
608	18	8	22	7	3250	1370	0.012
609	19	9	24	7	3710	1660	0.014
623	23	3	10	4	490	150	0.0014
624	24	4	13	5	980	305	0.0031
625	25	5	16	5	1110	380	0.005
626	26	6	19	6	1720	620	0.0084
627	27	7	22	7	3250	1370	0.013
628	28	8	24	8	4000	1590	0.017
629	29	9	26	8	4620	1960	0.02
634	34	4	16	5	1110	380	0.0054
635	35	5	19	6	1720	620	0.009
602 2RS	180012	2	7	3.5	380	125	0.00054
602 ZZ	80012	2	7	3.5	380	125	0.00054
603 2RS	180013	3	9	5	635	219	0.00092
603 ZZ	80013	3	9	5	635	219	0.00092
604 ZZ	80014	4	12	4	970	360	0.0022
604 2RS	180014	4	12	4	970	360	0.0022
605 2RS	180015	5	14	5	1330	510	0.004
605 ZZ	80015	5	14	5	1330	510	0.004
606 2RS	180016	6	17	6	2190	865	0.006
606 ZZ	80016	6	17	6	2190	865	0.006
607 2RS	180017	7	19	6	1720	620	0.075
607 ZZ	80017	7	19	6	1720	620	0.075
608 2RS	180018	8	22	7	3250	1370	0.012
608 ZZ	80018	8	22	7	3250	1370	0.012
609 2RS	180019	9	24	7	3710	1660	0.014
609 ZZ	80019	9	24	7	3710	1660	0.014
623 2RS	180023	3	10	4	490	150	0.0014
623 ZZ	80023	3	10	4	490	150	0.0014
624 2RS	180024	4	13	5	980	305	0.0031
624 ZZ	80024	4	13	5	980	305	0.0031
625 2RS	180025	5	16	5	1110	380	0.005
625 ZZ	80025	5	16	5	1110	380	0.005
626 2RS	180026	6	19	6	1720	620	0.0084
626 ZZ	80026	6	19	6	1720	620	0.0084
627 2RS	180026	7	22	7	3250	1370	0.013
627 ZZ	80026	7	22	7	3250	1370	0.013
628 2RS	180028	8	24	8	4000	1590	0.017
628 ZZ	80028	8	24	8	4000	1590	0.017
629 2RS	180029	9	26	8	4620	1960	0.02
629 ZZ	80029	9	26	8	4620	1960	0.02
634 2RS	180034	4	16	5	1110	380	0.0054
634 ZZ	80034	4	16	5	1110	380	0.0054
635 2RS	80035	5	19	6	1720	620	0.009
635 ZZ	180035	5	19	6	1720	620	0.009
