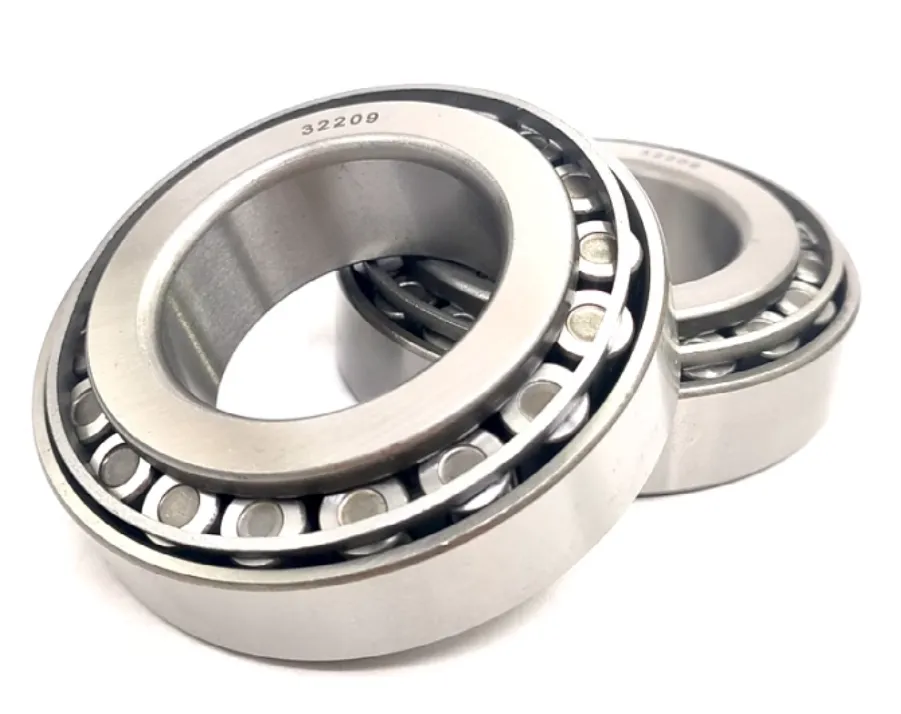

Taper roller bearing:32209

Product Name:	Taper roller bearing:32209
Type:	Roller Bearing	Brand :	FODA
New Model:	32209	Old Model:	7509E
Inner Diameter (mm):	45	Outer Diameter (mm):	85
Thickness (mm):	24.75	Weight (kg/pc):	0.607

Send Email To Us PDF DOWNLOAD

Product Details

Download Catalogue

Basic Parameters

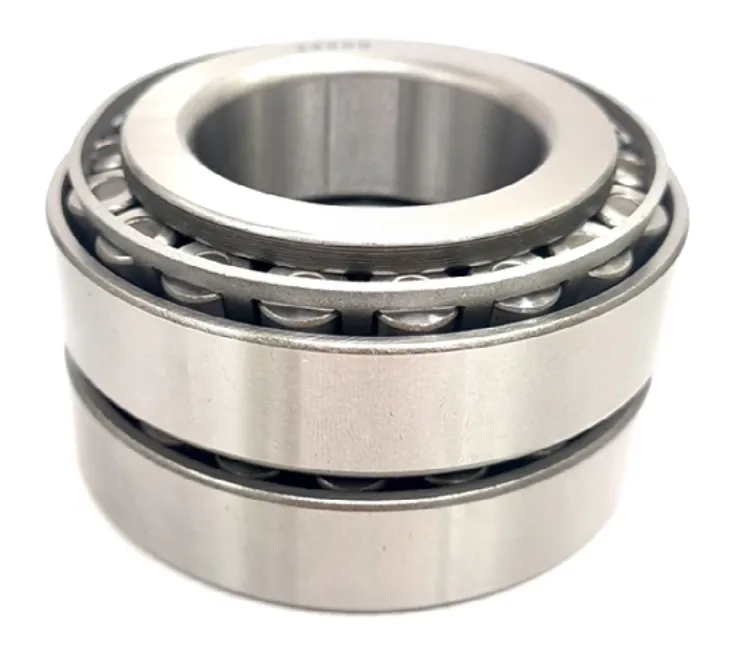

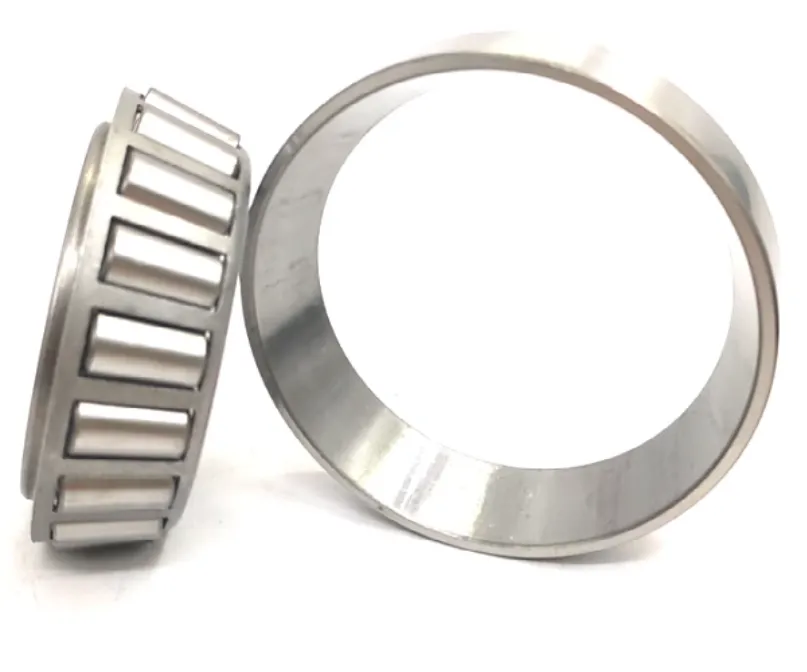

The 32209 bearing is a china Precision Tapered Roller Bearing in a Set of Cone and Cup made by FODA. This is the most basic and most widely used type of Tapered Roller Bearing. It consists of two main separable parts: the cone assembly (inner ring) and the cup (outer ring). It is typically mounted in opposing pairs on a Shaft Wheel Bearing Assembly. Our 32200-Series Tapered Roller Bearings provide enhanced performance in demanding applications and are pre-lubricated with light oil to ensure they are ready to use upon arrival.

Product Application

32209 Tapered Roller Bearings are used in a range of applications from Agricultural Machinery to Conveying Equipment, Electric Motors, Trucks, Mining Equipment, Robotics, Dental Equipment, Gear Drives, Elevators, Rolling Mills, Ship Rudder Shafts, Aggregate Crushers, among others.

Product List

Bearing No.		Dimensions (mm)			Basic Load Rating (N)		Weight
ISO	GOST	d	D	B	Dyn. C	Stat. C0	(kg)
32203	7503	17	40	16	29000	29500	0.102
32204	7504	20	47	18	33100	34700	0.161
32205	7505	25	52	18	35800	44000	0.19
32206	7506	30	62	20	50100	57000	0.28
32207	7507	35	72	23	66000	78000	0.43
32208	7508	40	80	23	74800	86500	0.53
32209	7509	45	85	23	80900	98000	0.58
32210	7510	50	90	23	82500	100000	0.61
32211	7511	55	100	25	106000	129000	0.83
32212	7512	60	110	28	125000	160000	1.15
32213	7513	65	120	31	151000	193000	1.5
32214	7514	70	125	31	157000	208000	1.6
32215	7515	75	130	31	161000	212000	1.7
32216	7516	80	140	33	187000	245000	2.05
32217	7517	85	150	36	212000	285000	2.6
32218	7518	90	160	40	251000	340000	3.35
32219	7519	95	170	43	281000	390000	4.05
32220	7520	100	180	46	319000	440000	4.9
32221	7521	105	190	50	358000	510000	6
32222	7522	110	200	53	402000	570000	7.1
32224	7524	120	215	58	468000	695000	9.15
32226	7526	130	230	64	550000	830000	11.5
32228	7528	140	250	68	644000	1000000	14.5
32230	7530	150	270	73	737000	1140000	17.5
32232	7532	160	290	80	880000	1400000	25.5
32234	7534	170	310	86	980000	1560000	28.5
32236	7536	180	320	86	1010000	1640000	29.8
32238	7538	190	340	92	1110000	1920000	36
32240	7540	200	360	98	1210000	2000000	42.7
32244	7544	220	400	108	1530000	2560000	58.3
