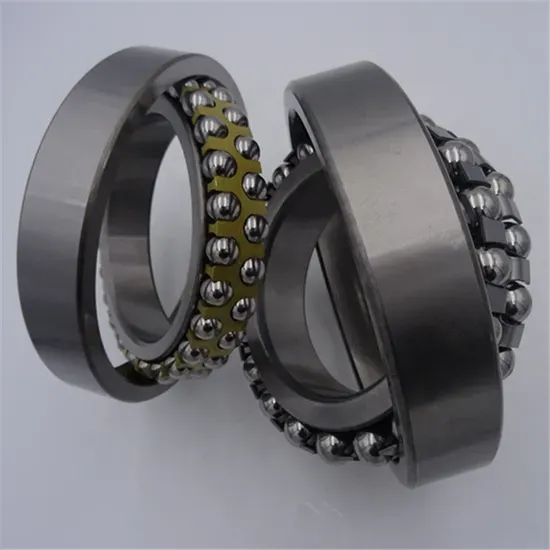

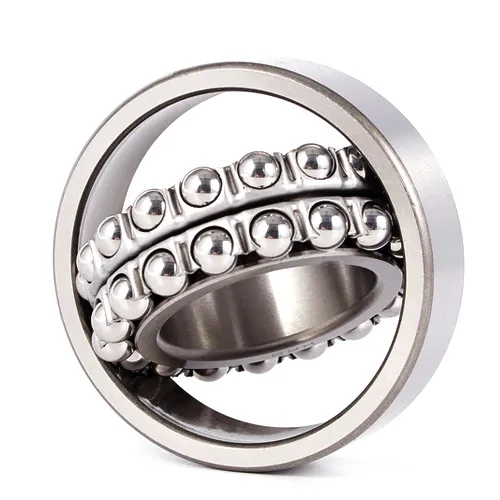

Self aligning ball bearing：2204K

Name: Self aligning ball bearing：2204K
Brand: SHANDONG FODA BEARING TRANSMISSION CO.,LTD
Availability: InStock
Rating: 4.5 (89 reviews)

Product Name:	Self Aligning Ball Bearing
Type:	Ball Bearing	Brand :	FODA
New Model:	2204K	Old Model:	111504
Inner Diameter (mm):	20	Outer Diameter (mm):	47
Thickness (mm):	18	Weight (kg/pc):	0.13

Send Email To Us PDF DOWNLOAD

Product Details

Download Catalogue

Basic Parameters

Starting number "2": In bearing models, the number "2" usually represents the category of cylindrical roller bearings or spherical roller bearings. For the model 2204K, it belongs to spherical roller bearings. The characteristic of spherical roller bearings is that they can automatically adjust the relative positions of the shaft and the housing, compensating for coaxiality errors caused by installation errors or shaft deflection.
"204" part: This set of numbers is used to represent the size of the bearing. Among them, "04" represents the inner diameter of the bearing. Generally, the inner diameter size is "04" multiplied by 5, so the inner diameter of this bearing is 20mm. The "2" in front is related to the size series. It is related to the ratio of sizes such as the outer diameter and width of the bearing. Different number combinations represent different size series.
"K" suffix: In bearing models, "K" usually has a specific meaning. Here, "K" represents a tapered bore bearing. The design of the tapered bore allows the bearing to obtain the appropriate radial clearance by adjusting the axial position during installation. This is very important for some equipment that requires precise control of clearance, such as some machinery with high requirements for rotational accuracy.

performance characteristics

Self-aligning performance

The outstanding performance of 2204K self-aligning roller bearing is its good self-aligning function. It can still maintain a good running state under certain shaft deflection or installation error. For example, in some long-shaft transmission equipment, due to the self-weight or force of the shaft, there may be a certain bending deformation. Using 2204K bearing can automatically adapt to this deformation, reduce local wear between the bearing and the shaft, and extend the service life of the bearing.

Bearing capacity

Self-aligning roller bearings generally have high radial bearing capacity, and 2204K is no exception. It can bear a large radial load, which makes it suitable for some equipment that bears heavy radial force. For example, on the support roller of the conveyor belt, it can well bear the weight of the conveyor belt and materials and ensure the stable rotation of the roller. At the same time, it also has a certain bearing capacity for a certain axial load and can work in a complex stress environment.

Installation flexibility (advantage of tapered hole)

Due to the tapered hole ("K" characteristic), there is greater flexibility when installing the 2204K bearing. The radial clearance of the bearing can be adjusted by axial displacement to achieve the best working state. This can better meet the installation and operation requirements for some precision equipment with strict clearance requirements, such as the spindle of precision machine tools.

Product Application

Agricultural machinery field
- Widely used in components such as rollers and conveyor belts of agricultural harvesters. During the working process of the harvester, the roller needs to bear the weight and impact force of crops. The high load-carrying capacity and self-aligning performance of the 2204K bearing can ensure the stable operation of the roller under complex working conditions and reduce failures.
Industrial conveying equipment field
- Used for supporting and driving rollers of various conveyor belts. On the material conveying line in factories, these rollers need to bear the weight of materials and the tension of conveyor belts for a long time. The 2204K bearing can adapt well to this working environment and ensure the efficient operation of conveying equipment.
Construction machinery field
- For example, in the rotating parts of some small construction machinery, like the support part of the mixing drum of a concrete mixer. During operation, the mixing drum will be subjected to the weight of concrete and the uneven force during mixing. The 2204K bearing can ensure the stable rotation of the mixing drum through its self-aligning performance and load-carrying capacity.
  - belts of agricultural harvesters

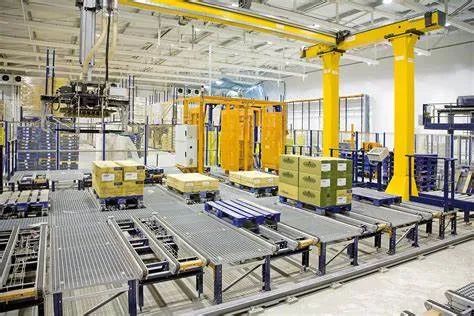

  - material conveying line

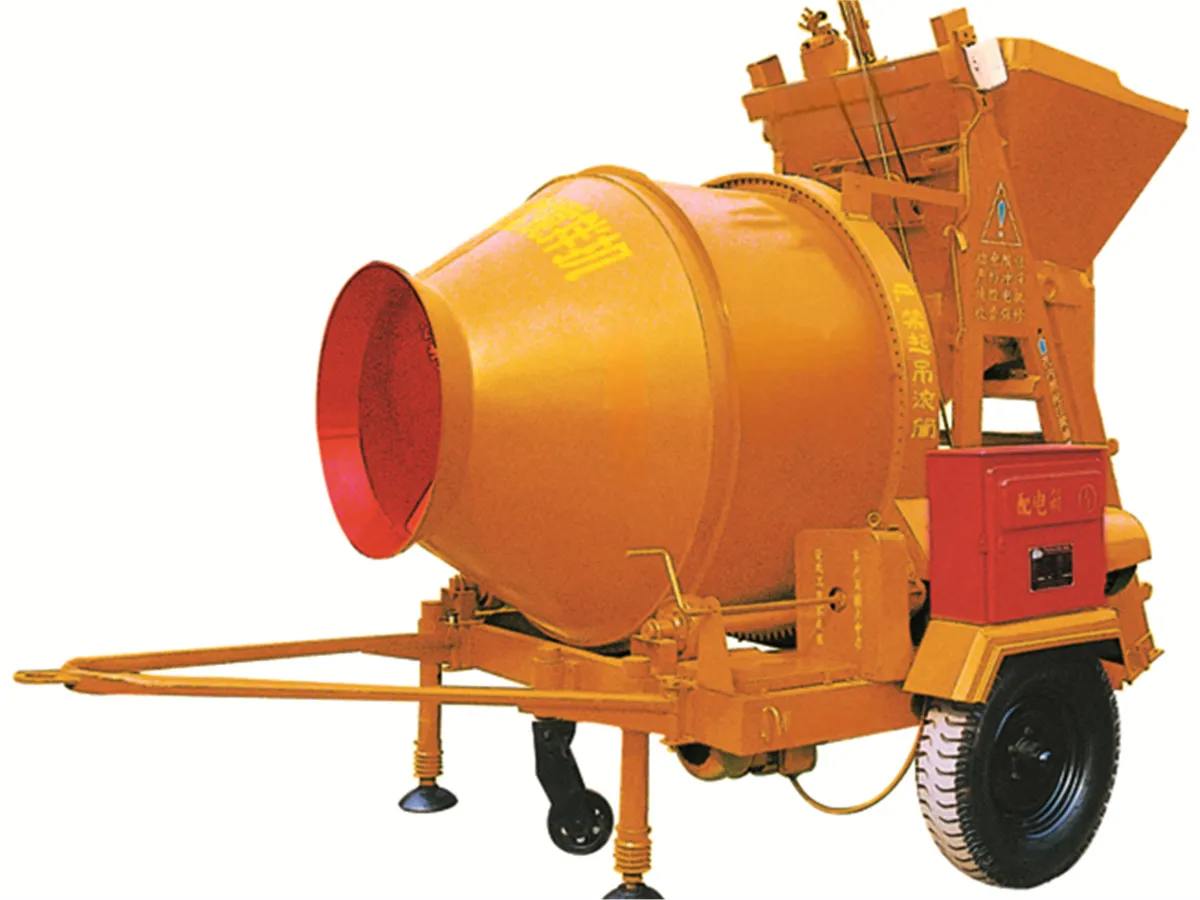

  - mixing drum

Product List

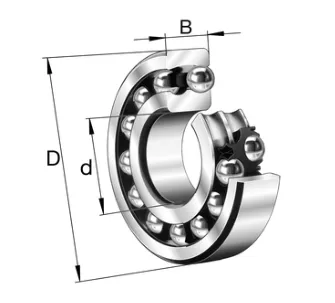

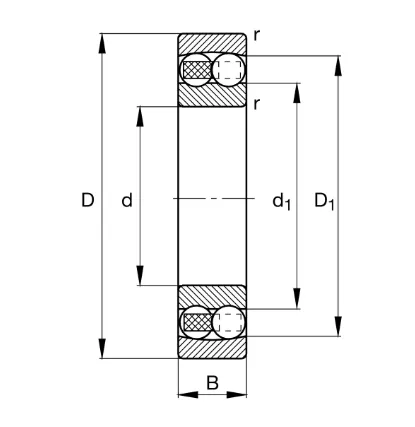

Bearing No.		Dimensions (mm)			Basic Load Rating (N)		Weight
ISO	GOST	d	D	B	Dyn. C	Stat. C0	（kg）
2204 K	111504	20	47	18	16400	4100	0.13
2205 K	111505	25	52	18	15200	3900	0.16
2206 K	111506	30	62	20	15200	4600	0.26
2207 K	111507	35	72	23	21800	6650	0.405
2208 K	111508	40	80	23	22500	7380	0.505
2209 K	111509	45	85	23	23200	8000	0.54
2210 K	111510	50	90	23	23200	8450	0.58
2304 K	111604	20	52	21	17800	4750	0.21
2305 K	111605	25	62	24	24500	6480	0.335
2306 K	111606	30	72	27	31500	8680	0.5
2307 K	111607	35	80	31	39200	11000	0.675
2308 K	111608	40	90	33	44800	13200	0.925
2309 K	111609	45	100	36	55000	16200	1.23
2310 K	111610	50	110	40	64500	19800	1.63
2311 K	111611	55	120	43	75200	23500	2.09
2312 K	111612	60	130	46	86800	27500	2.6
2201 2RS	1501	12	32	14	8400	1900	0.056
2202 2RS	1502	15	35	14	8600	2000	0.059
2203 2RS	1503	17	40	16	10400	2500	0.095
2204 2RS	1504	20	47	18	16400	4100	0.138
2205 2RS	1505	25	52	18	15200	3900	0.16
2206 2RS	1506	30	62	20	15200	4600	0.26
2207 2RS	1507	35	72	23	21800	6650	0.405
2208 2RS	1508	40	80	23	22500	7380	0.505
2209 2RS	1509	45	85	23	23200	8000	0.54
2210 2RS	1510	50	90	23	23200	8450	0.58
2211 2RS	1511	55	100	25	26800	9950	0.81
2212 2RS	1512	60	110	28	34000	12500	1.09
2213 2RS	1513	65	120	31	43500	16200	1.5
2214 2RS	1514	70	125	31	44000	17000	1.58
2215 2RS	1515	75	130	31	44200	18000	1.67
2302 2RS	1602	15	42	17	11800	2800	0.111
2303 2RS	1603	17	47	19	14300	3500	0.171
2304 2RS	1604	20	52	21	17800	4750	0.22
2305 2RS	1605	25	62	24	24500	6480	0.354
2306 2RS	1606	30	72	27	31500	8680	0.5
2307 2RS	1607	35	80	31	39200	11000	0.675
2308 2RS	1608	40	90	33	44800	13200	0.925
2309 2RS	1609	45	100	36	55000	16200	1.23
2310 2RS	1610	50	110	40	64500	19800	1.63
2311 2RS	1611	55	120	43	75200	23500	2.12
2312 2RS	1612	60	130	46	86800	27500	2.62
